Ancona UC7630 - Step 10 - Installing the Hood

— 15 —
STEP 10
Installing the Hood
Method 1: Attaching the unit to the wall
• Remove eight screws (4 x 8 mm) holding cover pan to hood, see Fig #13 and #14.
• Mark or drill four small holes on the mounting position according to the dimensions on Fig #15.
• Insert four drywall anchors into the holes, and two screws into the top holes.
• Hang the range hood onto the screws.
• Open the lter and install the inner panel in place with safety screws. See Fig #16.
• Attach the ducting to the damper and exhaust outdoors.
• Re-assemble the cover pan, put the metal inlet cover onto the hood with four screws (4 x 8 mm) (Fig #17).
Installation

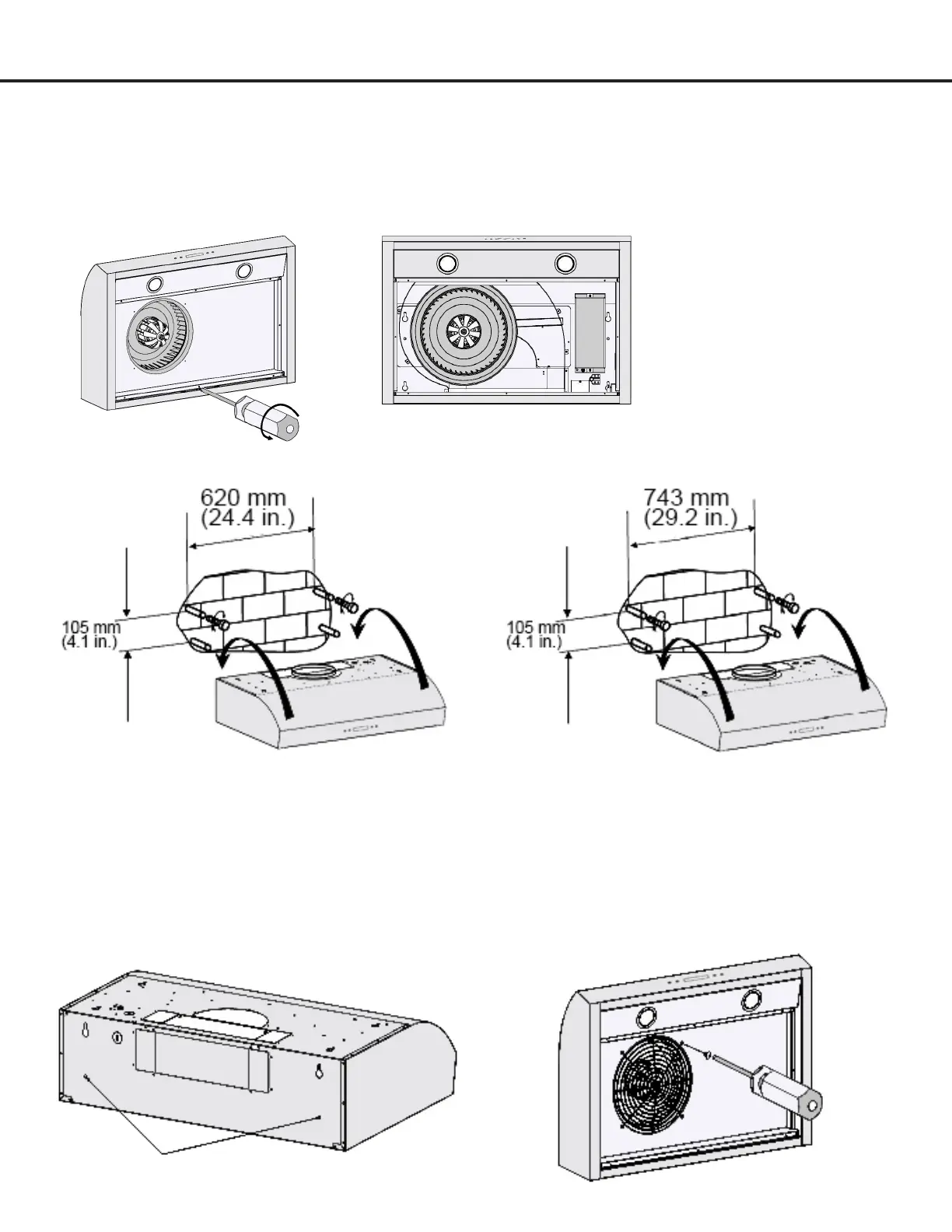

Fig #16
Fig #13 Fig #14
Fig #17
30 inch 36 inch
Safety screw holes
Fig #15
