Ancona WPPW430 - Range Hood Assembly

— 17 —

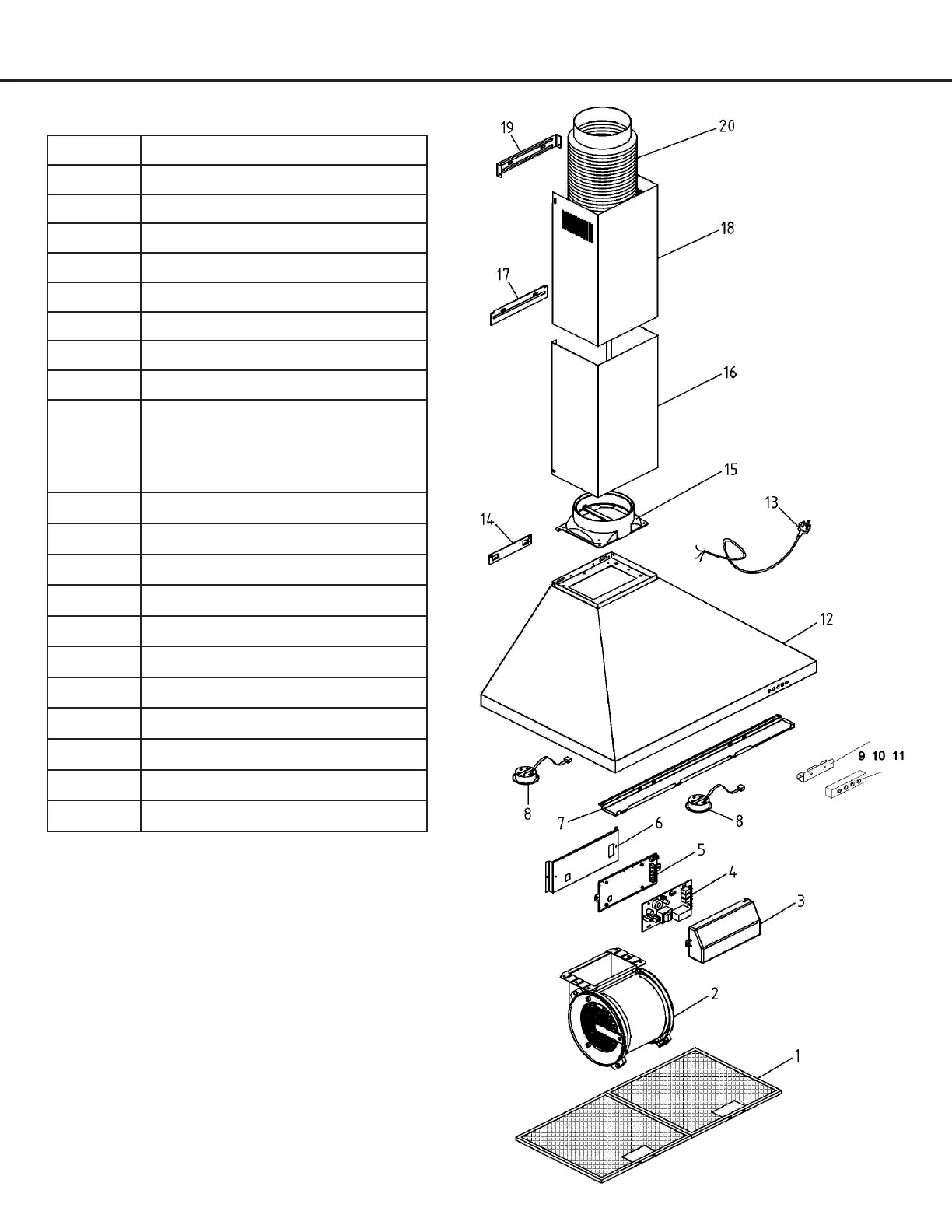

Range Hood Assembly
Number Part
20 Air pipe
19 Bracket of upper chimney
18 Upper chimney
17 Bracket for lower chimney
16 Lower chimney
15 Metal wind block
14 Hook plate
13 Power cord
12 Body assembly
(including shell, lamp plate, top
plate, wrap angle, bracket of
lamp plate)
11 Electronic switch box
10 Electronic switch
9 Bracket of electronic switch box
8 Round LED lamps
7 Front panel
6 Bracket of electrical box
5 Electrical box base
4 PCB of electronic switch
3 Electrical box cover
2 Blower assembly
1 Aluminum lters
