16
Connection instructions
All connections must be well soldered and well insulated.
Cable restoration
Please contact Andatech at 1300 800 200 for more information.
Function control
• Check that the vehicle cannot be started/driven without an approved breath test.
• Check that the vehicle can be started/driven after an approved breath test.
• Check that the vehicle’s systems are not affected by the Ignition Locking device installation (e.g.
ALX3000 error messages and warning lights etc).
Calibration & Service
See the “Recurring Service” section.
Alternatively, you may contact us at 1300 800 200 for more information.

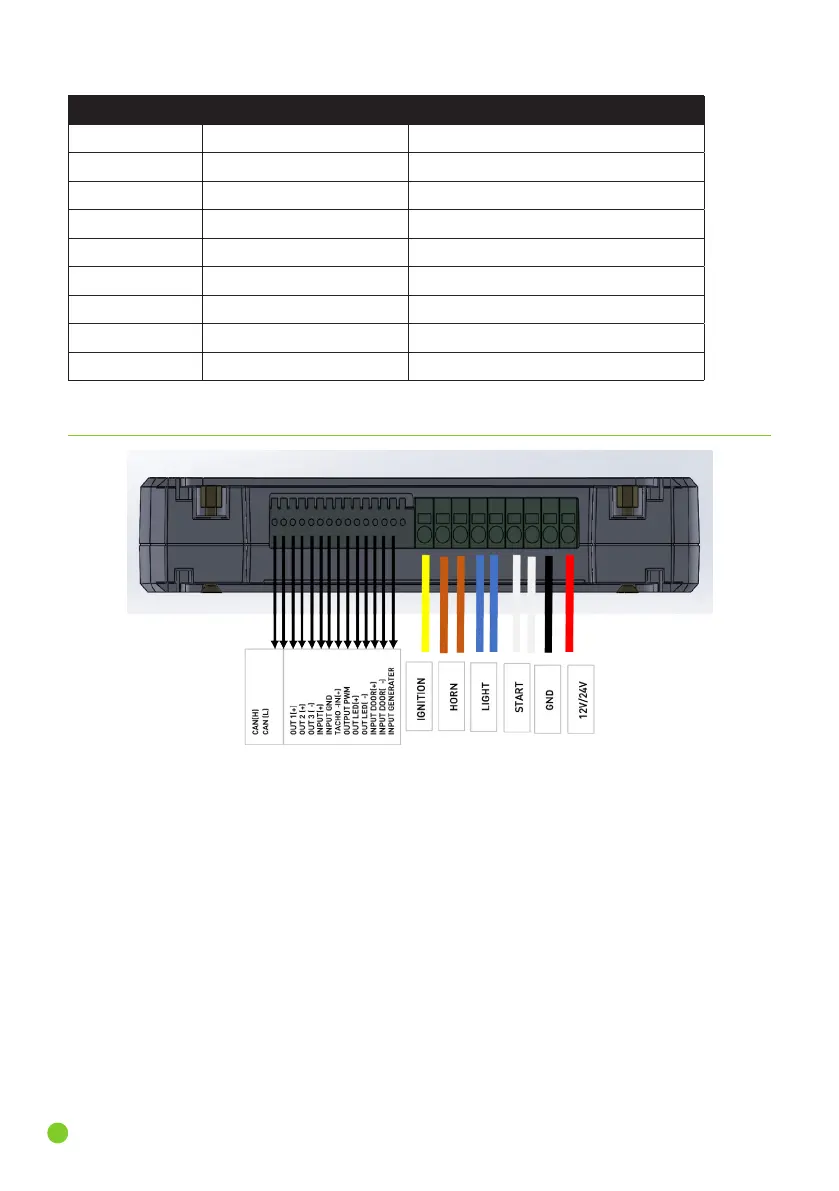

CABLE INFORMATION
Connection points:
Wire color Wire name Connection point
Red wire Red +12-24V Connection battery +, 12/24 Volt
Black wire Black GND Connection chassi –
White wire White STARTER IN Connection start break circuit in
White wire White STARTER OUT Connection start break circuit out
Blue wire Blue LIGHT IN Relay function to the warning light
Blue wire Blue LIGHT OUT Relay function to the warning light
Brown wire Brown HORN IN Relay function to the warning Buzzer
Brown wire Brown HORN OUT Relay function to the warning Buzzer
Yellow wire Yellow IGN Connection ignition voltage
