17
PRODUCT MANUAL
46/50ST Below Deck Compact Motor
™
STEP 10
Winch Installation

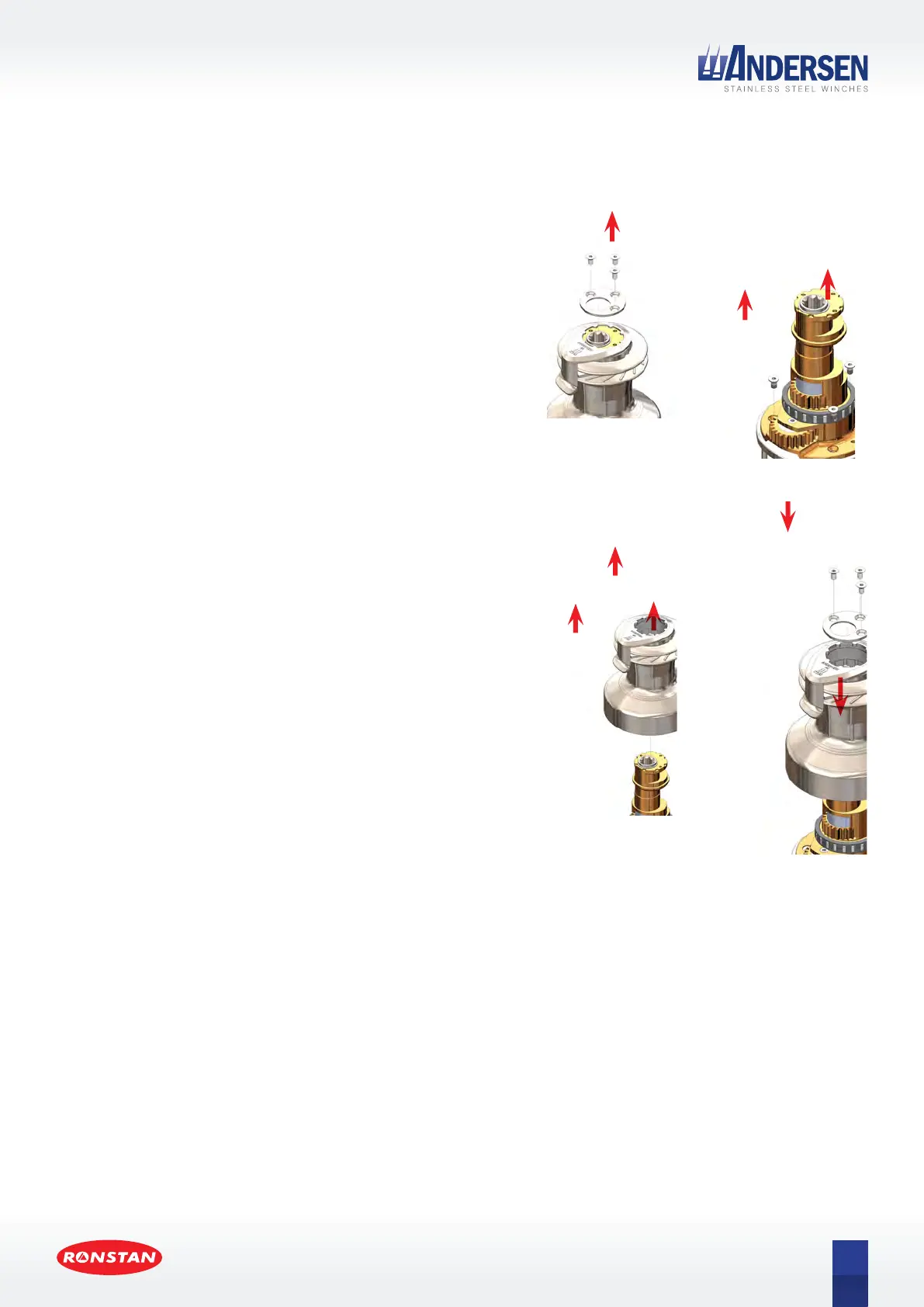

10.1 Use a hex key to remove the screws at the top of the winch,
then lift o the self-tailing arm and the drum to expose the
centre stem and gears, and remove the base cover ring. Position
the centre stem of the winch on the deck plate with mounting
holes aligned, and secure it to the deck plate. Then secure the
base cover ring and t the drum.
1.
3.
2.
4.
Winch installation
10.2 Test the winch by rotating the drum by hand and operating the winch manually with handle. The winch should operate
smoothly in both gears. Then remove the handle and test electrical operation by pressing the push button.
