PRODUCT MANUAL
46/50ST Below Deck Compact Motor
™
4
Push Button - E1, Two Speed & Three Speed Electric Winches
Scale 1:1
Page size A4 (210mmW x 297mmH)
Product No’s RA582000, RA582010, RA582020
Method A
Blue shaded areas of template
Drill a Ø19mm (3/4”) hole at the centre of the push button
location, and a Ø5mm (3/16”) hole immediately beside for
the breather tube (as indicated on the template).
Method B
Red shaded areas of template
Drill a Ø25mm (1”) hole at a 2mm (1/16”) o set to the centre
of the push button location (as indicated on the template).
RON-MDT/PBE1-Rev.2. 01-05-18
HOLE
Ø5mm
(3/16’’)
for breather
tube
12mm
(1/2’’)
20mm
(3/4’’)
HOLE
Ø19mm (3/4’’)
ON CENTRE
50mm
(1 15/16’’)
Cover in open position
50mm
(1 15/16’’)
2mm
(1/16’’)
37mm
(1 7/16’’)
3 HOLES
Ø3mm (1/8’’) TYP
25mm
(1’’)
50mm
(1 15/16’’)
HOLE
Ø25mm (1’’)
OFFSET 2mm from
centre of switch
9mm
(3/8’’)
Mounting Dimension Template

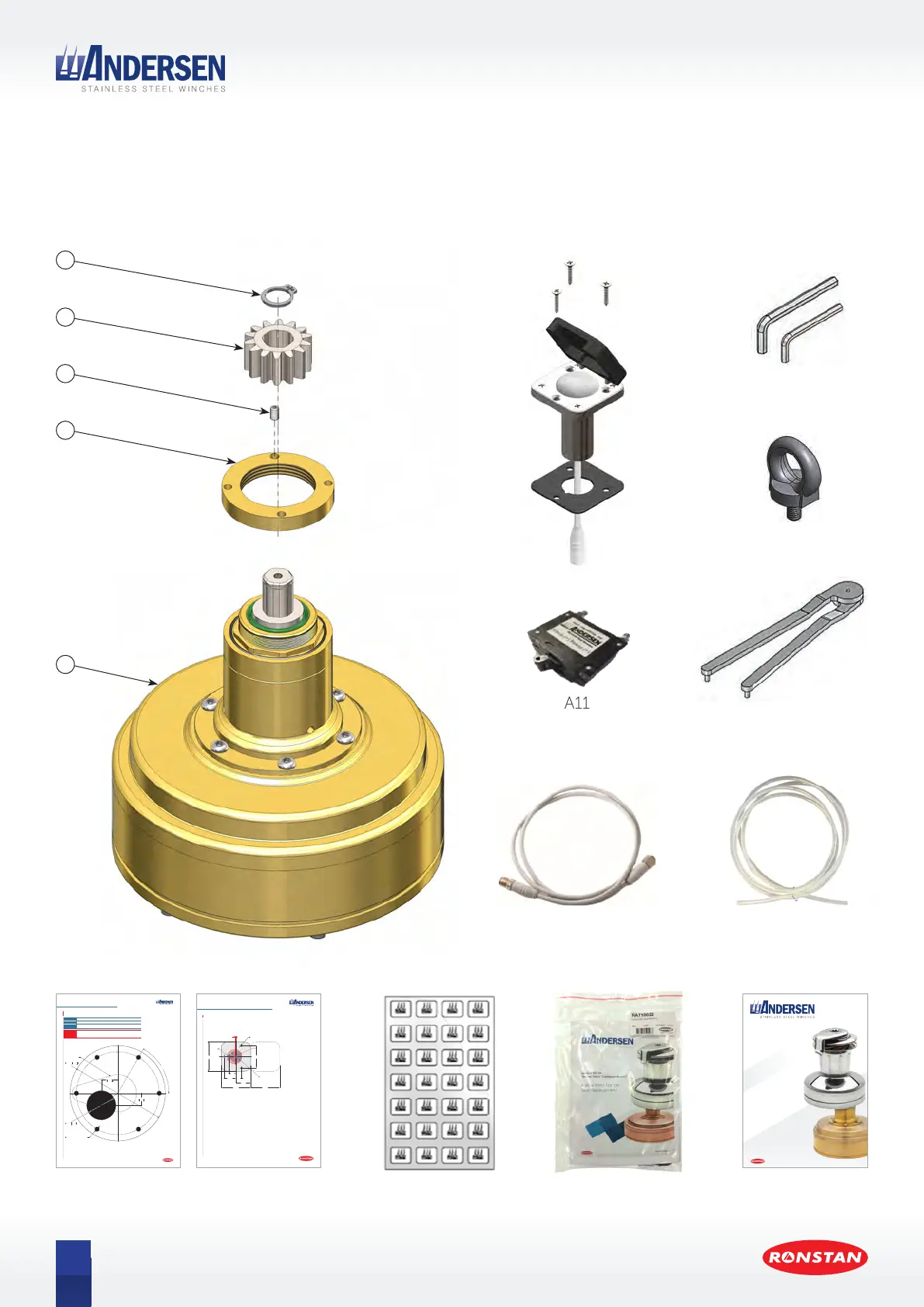

Andersen Winches
™
A4
A8
A1
A2
A5
A6
A12A10
A11
A7 A13 A9A3 A3
PRODUCT MANUAL
Compact Motor
™
Below Deck
Electric Winch
46/50ST
FOR USE WITH:
Compact Motor™ Electric Winches
RA2046014100 RA2050014100
RA2046014200 RA2050014200
Compact Motor™ Conversion Kits
RA2046214100 RA2050214100
RA2046214200 RA2050214200
Winch Versions:
46ST (
≥
V.4.0) 50ST (
≥
V.1.0)
Your Winch Version No. ____________________________________
Your Motor Serial No. ________________________________________
710203-Rev.1
Mounting Dimension Template
Andersen Winches
E1 & Compact Motor
™
Below Deck
Electric Self Tailing Winches, Size 58 & 62
230mm
9 1/16"
WINCH BASE
10.50mm [13/32"] x 6 EQUALLY
SPACED ON A 200mm [7 7/8"] P.C.D.
39.74mm
1 9/16"
29.00mm
1 1/8"
70mm
2 3/4"
CUTOUT FOR
ELECTRIC MOTOR
60°
TYP
SELF-TAILING ARM CAN
BE REPOSITIONED IN
45 DEGREE INCREMENTS
AFTER INSTALLATION
Scale 1:1
Page size A3
Product No.
RA2058011300 RA2058011400 RA2058014100 RA2058014200
RA2062011300 RA2062011400 RA2062014100 RA2062014200
IMPORTANT
This template document has been created at 1:1 scale. It is critical that
it is printed at 1:1 scale. Check any printed/reproduced copies match
the dimensions indicated at 1:1 scale prior to use.
ART No: RD100214
Mounting Dimension Template Part No. RD100214 - Rev.2
Exploded View
46/50ST Below Deck Compact Motor™ 12V/24V
3
4
5
1
2
