PRODUCT MANUAL
46/50ST Below Deck Compact Motor
™
6
Required for installation
• Hex keys, metric (included)
• Pin spanner, 5mm pins (included)
• Cross head screwdrivers
• Drill bit Ø8.5mm for M8 mounting bolts (or drill bit 11/32” for 5/16” bolts)
• Drill bit Ø3mm (1/8’’)
• Ø70mm (2 3/4’’) hole saw, or jigsaw
• Ø25mm (1’’) hole saw
• 5x M8 (5/16’’) CSK mounting bolts and locking nuts (length as required for deck thickness)
• 5x M8 (5/16”) ID large washers, or backing plate to match drilling template
• Spanners: 13mm for motor and circuit breaker terminals, 10mm (1/2”) for winch mounting nuts
• Sealant / bedding compound
• Wire crimping tool/pliers
• Marine grade electrical power cables with lugs to suit your battery terminals and the M8 motor
and circuit breaker terminals
Before Installation
Before installation, record the version number of your winch and
the serial number of your motor in the space provided on the front
cover of this manual for future reference.
These details can be found as shown below.

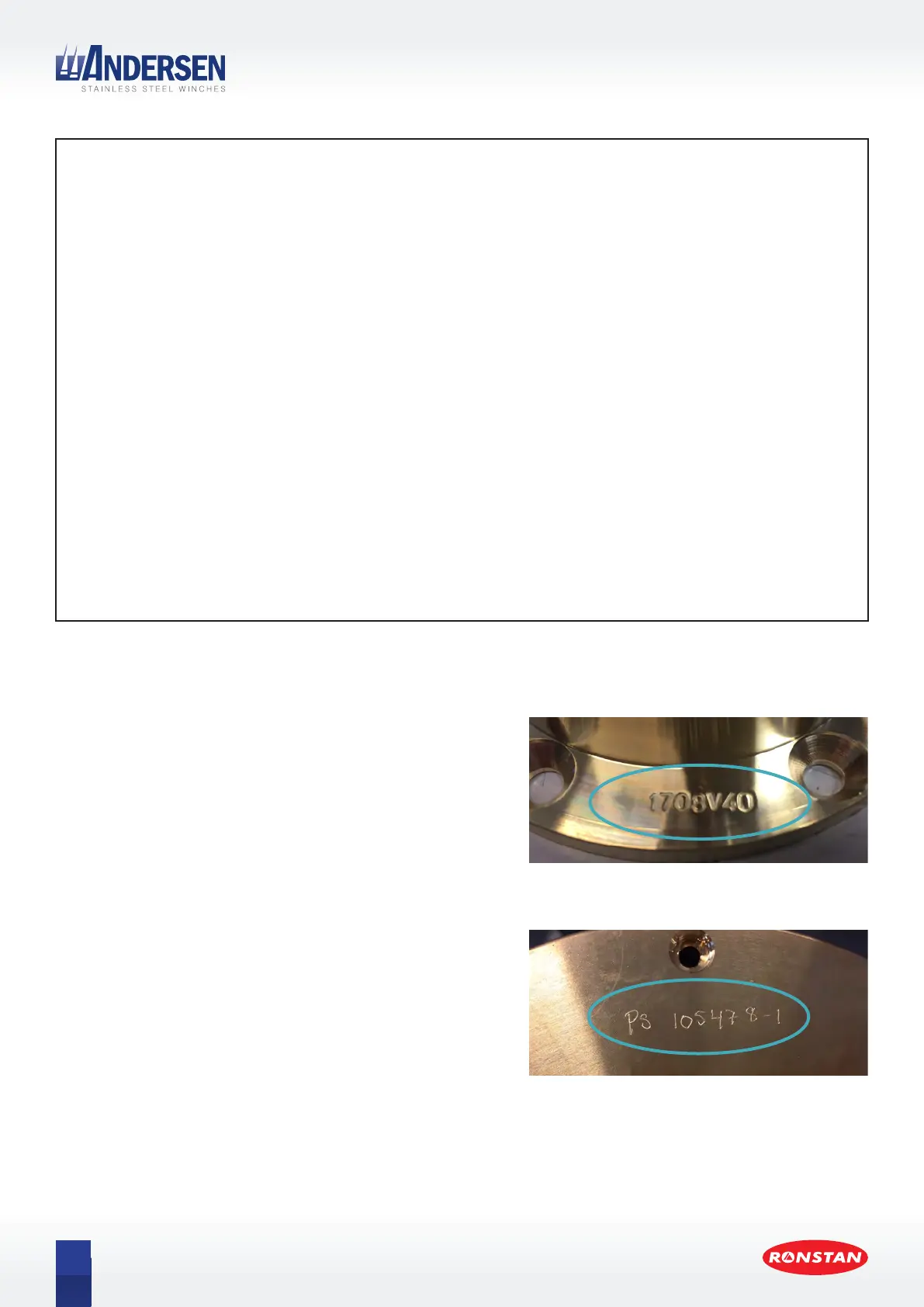

Winch production year and month [YY-MM] followed by
version number are stamped on winch base between
the mounting bolt holes.
Serial number engraved on bottom of motor.
