Step 3
13
Using the 1-1/4 in. foundation hardware supplied, level the pedestal to within +/-0.1

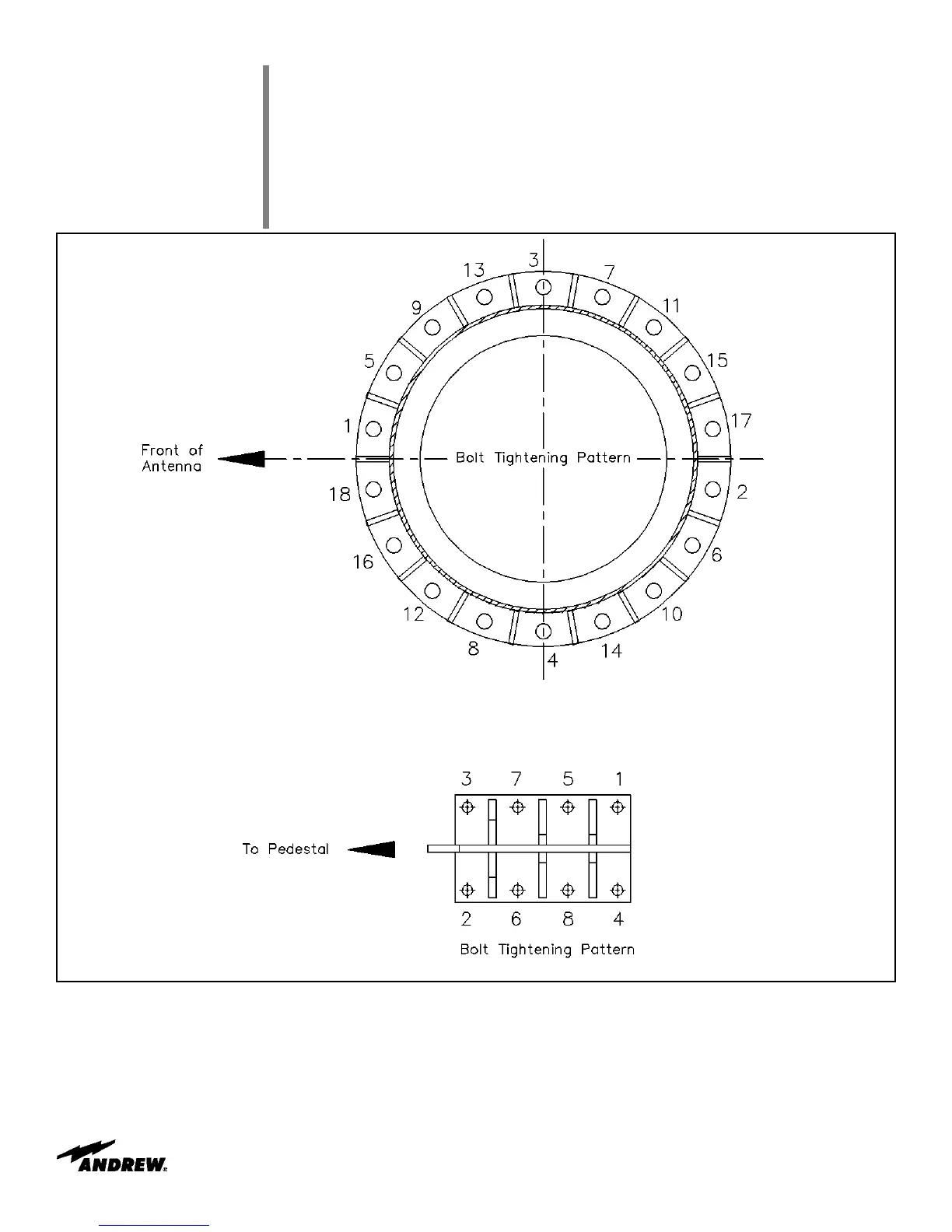

degrees. Tighten each anchor bolt to 912 lb/ft (126 kg/m) as shown in Figure 4. Note:
Tighten each bolt using no more than 300 lb/ft (41.5 kg/m) at a time in tightening
sequence shown.
• Use 1-1/4 in. flatwashers and hex nuts.
Installation Procedures
Figure 4
