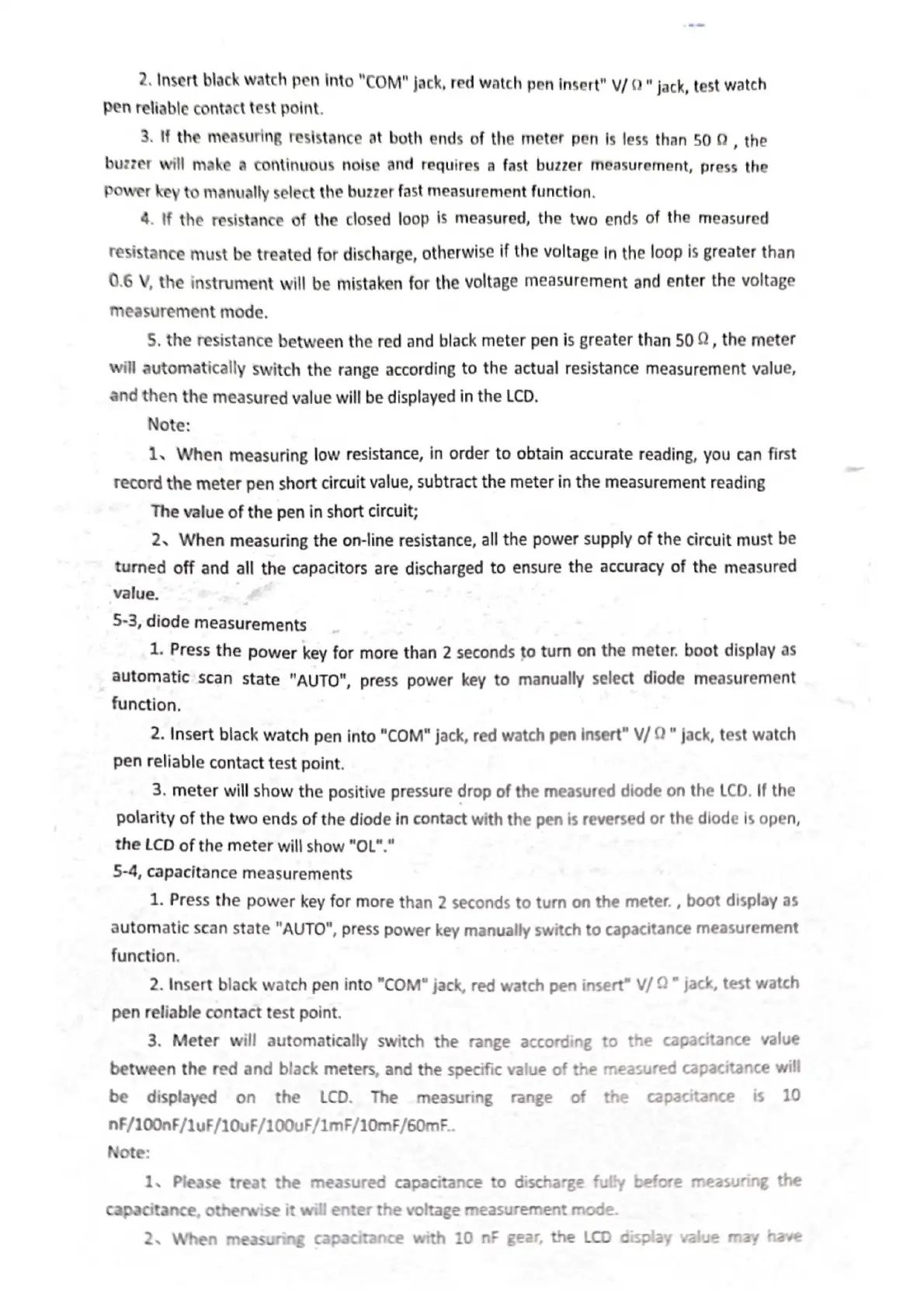

2.
Insert
black
watch
pen
into
"COM"
jack,
red
watch
pen
insert"
V/
0"
jack,
test
watch
Pen
reliable
contact
test
point,
3.
If
the
measuring
resistance
at
both
ends
of
the
meter
pen
is
less
than
50
,
the
burzer
will
make
a
continuous
noise
and
requires
a
fast
buzzer
measurement,
press
the
power
key
to
manually
select
the
buzzer
fast
measurement
function.
4. If the resistance of the closed loop is measured, the two ends of the measured
resistance must be treated for discharge, otherwise if the voltage in the loop is greater than
0.6 V, the instrument will be mistaken for the voltage measurement and enter the voltage
measurement mode.
5. the resistance between the red and black meter pen is greater than 50 2, the meter
will automatically switch the range according to the actual resistance measurement value,
and then the measured value will be displayed in the LCD.
Note:
1, When measuring low resistance, in order to obtain accurate reading, you can first
record the meter pen short circuit value, subtract the meter in the measurement reading
The value of the pen in short circuit;
2, When measuring the on-line resistance, all the power supply of the circuit must be
turned off and all the capacitors are discharged to ensure the accuracy of the measured
value.
5-3,
diode
measurements
1. Press the power key for more than 2 seconds to turn on the meter. boot display as
automatic scan state "AUTO", press power key to manually select diode measurement
function.
2. Insert black watch pen into "COM" jack, red watch pen insert" V/ ©" jack, test watch
pen
reliable
contact
test
point.
3. meter will show the positive pressure drop of the measured diode on the LCD. If the
polarity of the two ends of the diode in contact with the pen is reversed or the diode is open,
the LCD of the meter will show “OL"."
5-4, capacitance measurements
1. Press the power key for more than 2 seconds to turn on the meter. , boot display as
automatic scan state "AUTO", press power key manually switch to capacitance measurement
function.
2. Insert black watch pen into "COM" jack, red watch pen insert” V/ ©" jack, test watch
pen reliable contact test point.
3. Meter will automatically switch the range according to the capacitance value
between the red and black meters, and the specific value of the measured capacitance will
be displayed on the LCD. The measuring range of the capacitance is 10
nF/100nF/1uF/10uF/100uF/1mF/10mF/60mF..
Note:
1. Please treat the measured capacitance to discharge fully before measuring the
Capacitance, otherwise it will enter the voltage measurement mode.
2.
When
measuring
capacitance
with
10
nF
gear,
the
LCD
display
value
may
have
