Anet A8 - Assembly Step; Name of each Printer Part

Screen

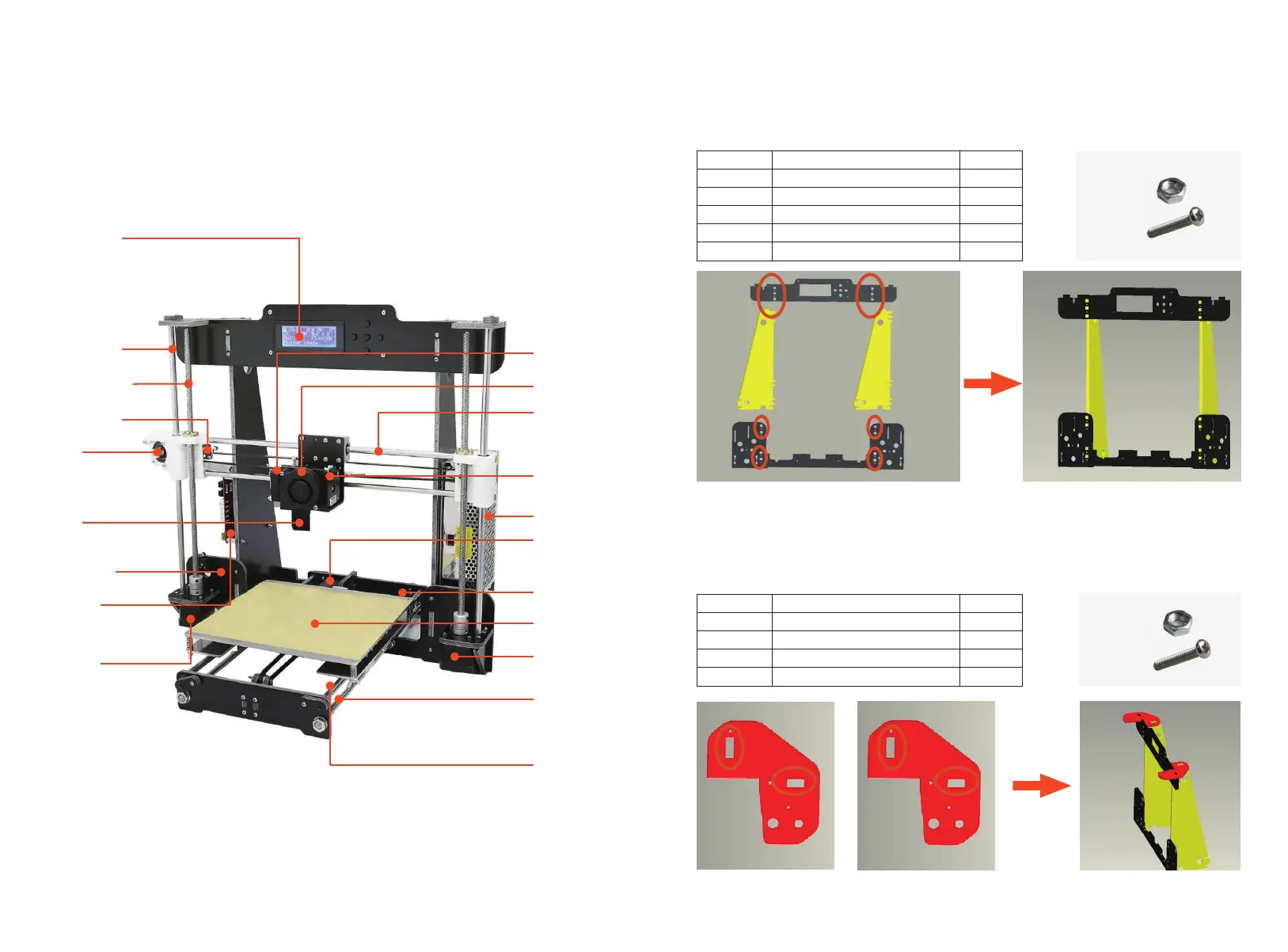

1.2 Name of each printer part 1.3 Assembly Step
Step 1
Step 2
Item
1
2
3
4
5
1
1
2
12
12
QTY.Name of parts
Bottom support plate
Top support plate
Side support plate
M3*18 Screw
M3 Nut
Z Leading Rod
Z Threaded Rod
X Limit Switch
X Motor
Extruder
Z Limit Switch
Mainboard
Z Left Motor
40 Fan
50 Soprador
X Leading Rod
Before Assembly
Please be aware the screw holes is in orange circles.
Please be aware the screw holes is in orange circles.
After Assembly
Before Assembly After Assembly
Extruder Motor
Y Motor
Y Limit Switch
Hotbed
Z Right Motor
Y Threaded Rod
Y Leading Rod
Power
Item
1
2
3
4
1
2
4
4
QTY.Name of parts
Step 1
support plate lock plate
M3*18 Screw
M3 Nut
M3
M3*18
M3
M3*18
Step 1
Step 2
page 12 page 13
