Anets A8 - Extruder Drawing

72 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

5

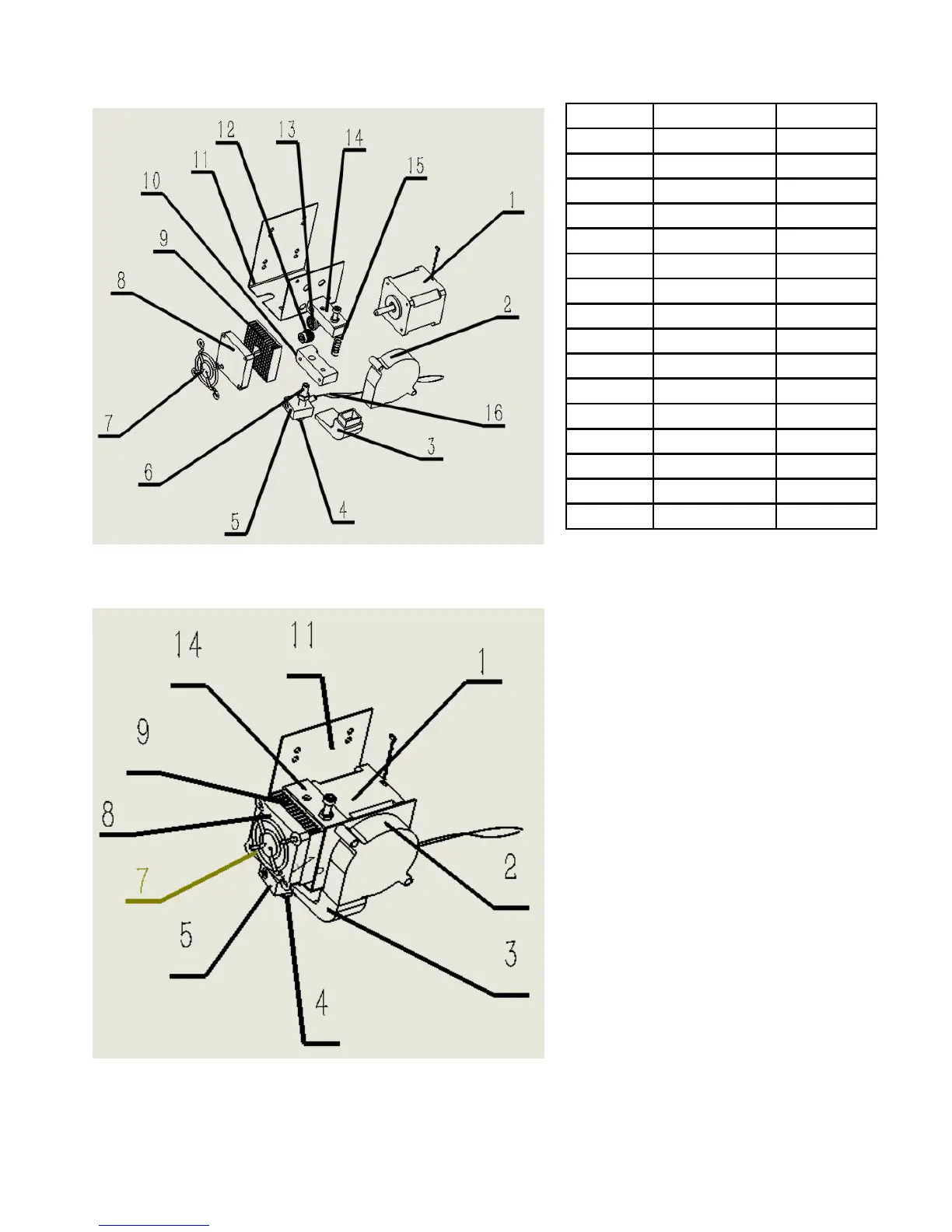

3.Extruder drawing

No.

Part Name

Quantity

1

Extruder Motor

1

2

Blower

1

3

Wind Mouth

1

4

Nozzle（0.4mm)

1

5

Heating Block

1

6

Throat

1

7

Fan Cover

1

8

Fan

1

9

Heat Sink

1

10

Extruder Seat

1

11

Bend Parts

1

12

Brass Wheel

1

13

U-Bearing

1

14

Briquetting

1

15

Spring

1

16

Heating Pipe

1
