2.1 Specified use
2. IMPORTANT INFORMATION
USER MANUAL 3
USER MANUAL 4
3. USE OF PRODUCTS

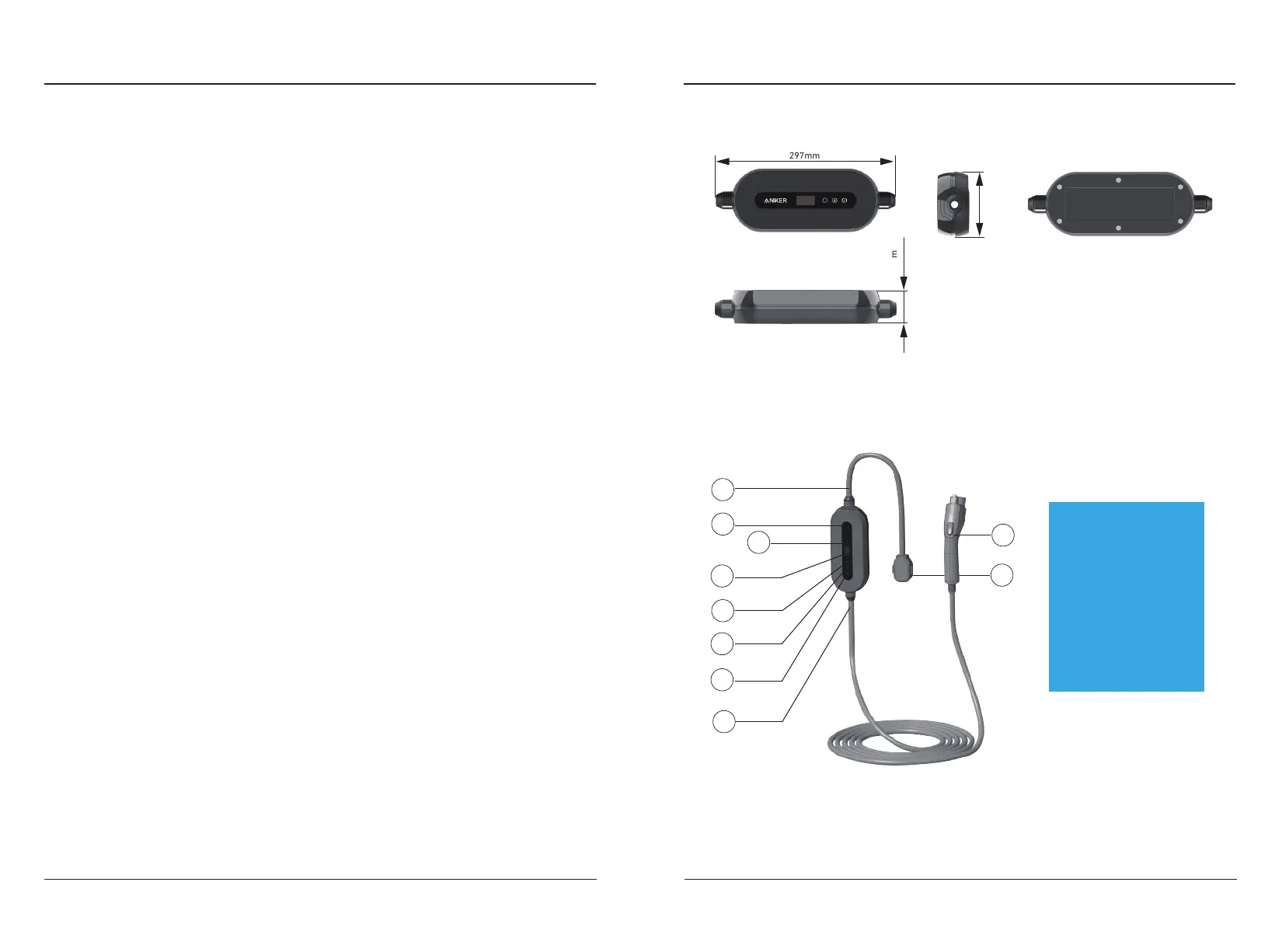

3.1 Product Appearance Size
3.2 Product Appearance Introduction
A
B
D
E
F
G
I
J
H
C
［ A ］
［ B ］
［ C ］
［ D ］
［ E ］
［ F ］
［ G ］
［ H ］
［ I ］
［ J ］
2. 2 About this Manual
This type of product is a charger that can charge electric vehicles in indoor and
outdoor areas;
When installing and connecting the charger, the relevant regulations of the local
country or government shall be observed;
The specified use of the equipment includes complying with the environmental
conditions under any circumstances;
During the storage or use of the equipment, it is necessary to store the charger
and its supporting components in a dry and ventilated indoor place with a
temperature of -30 ℃~+50 ℃ and a daily average temperature of ≤ 35 ℃ within
24 hours;
Monthly average relative humidity ≤ 90% (25 ℃), no condensation on the surface;
After the installation, the shell of the charger shall be kept sealed to avoid
soaking in rain;
The place of use shall be free of explosive media, the surrounding media shall not
contain harmful gases and conductive media that corrode metals and damage
insulation, and shall not be filled with steam or serious mold;
The place of use should avoid direct sunlight. When installing outdoors, it is
recommended to install sunshade facilities for the charger;
When the AC charger is not in use, the charging gun shall be placed 0.5 m~1.5 m
away from the ground;
Equipment shall be developed, produced, inspected and filed according to
relevant safety standards. Therefore, there will be no unnecessary property loss
or personnel danger, if the instructions and safety standards are followed strictly;
The instructions contained in this manual must be strictly followed, otherwise
potential safety hazards may occur or the built-in protection devices may fail.
Although this manual describes the relevant safety tips, it is still necessary to pay
attention to the safety regulations and accident prevention regulations in
accordance with the corresponding application;
Due to technical or legal restrictions, it is impossible to supply all models/options
to the region;
For any special requirements, pls feel free to contact us.
●
●
●
●
●
●
●
●
★
★
★
★
★
This manual is applicable to the following groups:
The end customer (EV charger user)
The technical sta of debugging and service
The final explanation of this manual belongs to the company.
●
★
★
●
297mm
106.6mm
53.8mm
Input Wire
LOGO
Panel
Display Screen
Indicator
Current Button
Time Button
Output Wire
Plug
Charging Gun
To Next Page
