Balcony Solar Power System Installation Steps Overview
• Step A: Find a suitable location to install the balcony solar power system.
• Step B: Install the first solar panel.
• Step C: Install the microinverter.
• Step D: Install the second solar panel.
• Step E: Connect the solar panel to the microinverter via the solar panel's extension cable, then wait for 90 seconds.
NOTE: This step must be done with sucient sunlight for the solar panel to provide power to the microinverter.
• Step F: Scan the QR code and download the Anker app. Follow the in-app instructions to complete the microinverter
configuration and Schuko cable connection.
NOTE: This step must be done while your home's electrical grid has power.
• Step G: After 20 minutes, you will get the balcony solar power system's data on your Anker app.
NOTE: According to the government's regulations and to ensure safety, the microinverter can only start working after connecting
to a powered grid for 5 minutes. To improve the accuracy of the data, the system will verify and validate it for 15 minutes before
showing it on the app.

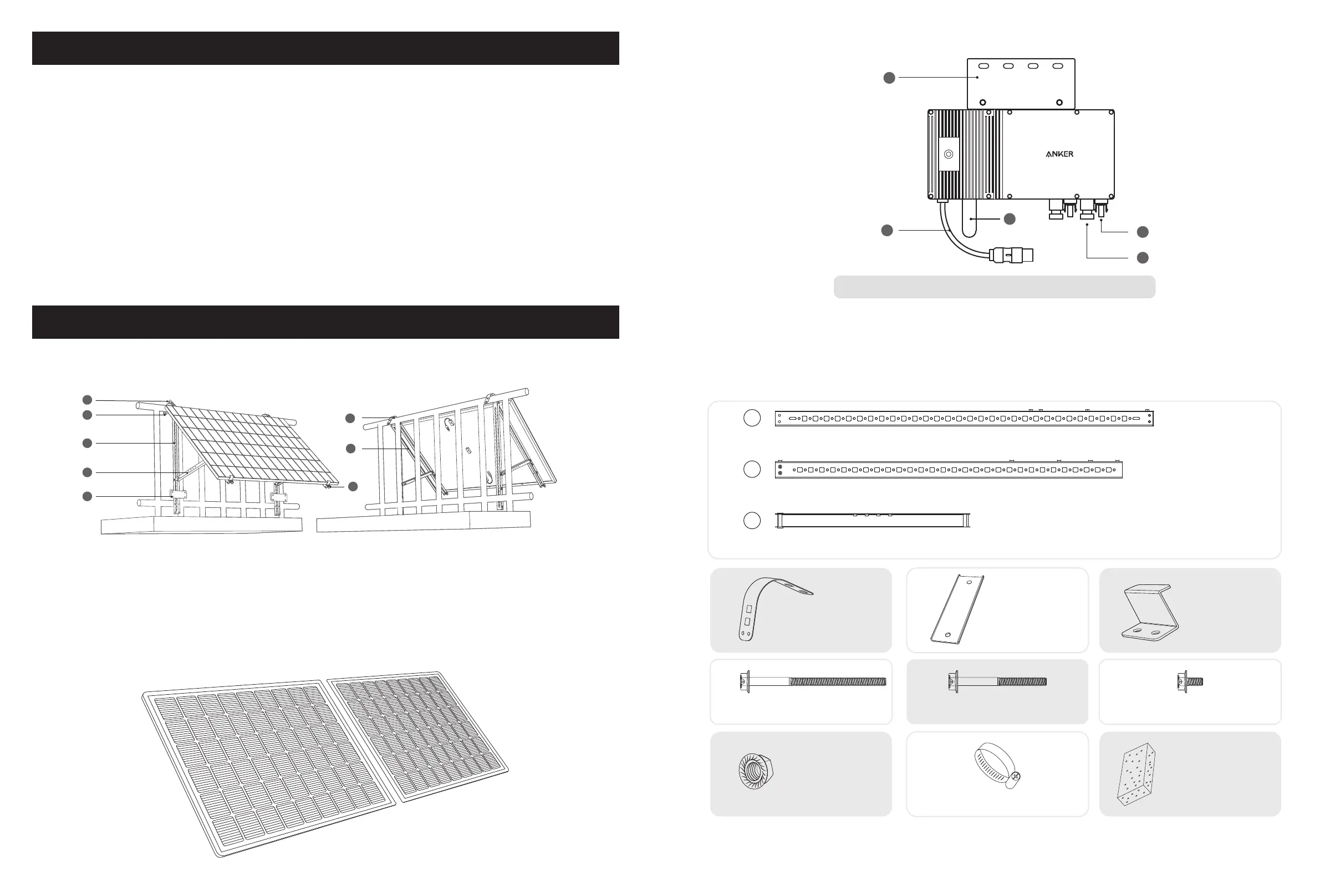

Components Overview
Solar Panel Tilt Mount Brackets
45
40
35
30
40
45
35
30
30
2
1
3
4
6
7
8
5
1. 304 Stainless Steel Hose Clamp (K) 5. Fastening Clamp (E)
2. U-Shaped Rack (D) 6. Limit Supports (F)
3. Vertical Support Scaolding (B) 7. Solar Panel Support Beam (A)
4. Lower Support Beam (C) 8. Silicone Buer Pad (L)
Solar Panel
Microinverter
2
1
3
4
5
Note: The product's appearance varies by supplier and batch.
1. Mounting 3. Wi-Fi Module 5. QC4 Male Pin
2. AC Connector 4. QC4 Female Socket
Accessories
HG I
Solar Panel Support Beam (×4)
Vertical Support Scaolding (×4)
Lower Support Beam (×4)
D
E
F
J
K
L
U-Shaped Rack (×4)
M6×100 Hexagon Flange Bolt (×16) M6×65 Hexagon Flange Bolt (×12) M6×12 Hexagon Flange Bolt (×24)
Fastening Clamp (×8)
Limit Support (×4)
M6 Flange Nut (×20) 304 Stainless Steel Hose Clamp (×10)
Silicone Buer Pad (×4)
C
mm
618
B
mm
110 0
A
mm
1200
M
N
O
P Q R
Phillips Screwdriver
Hexagon Wrench
Mounting Auxiliary Rope
Solar Panel Extension Cable Zip Tie Schuko Connection Cable
Work Gloves
(Not included)
Male Pin Female Socket Schuko Connector
