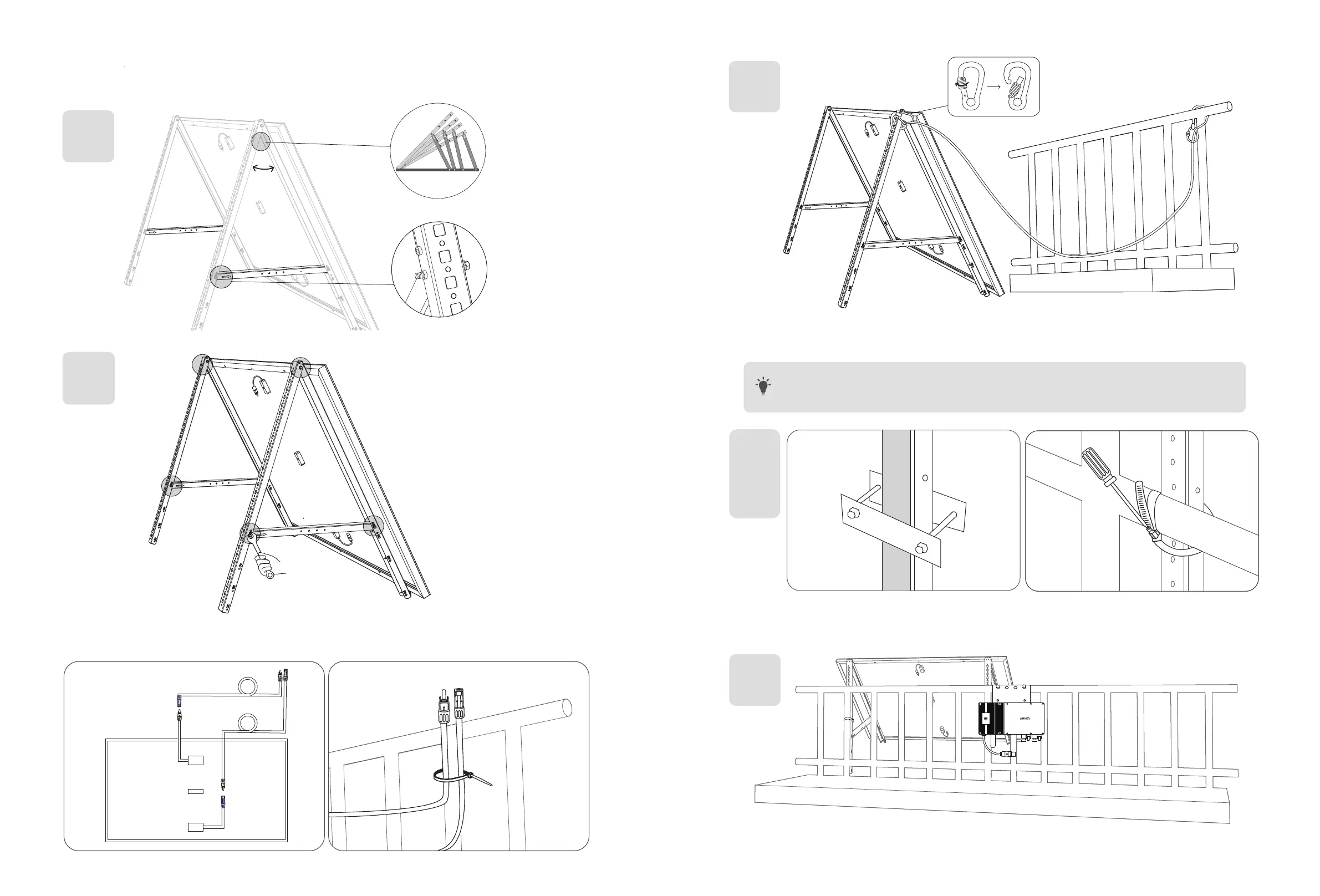

4. Mount the lower support beams and adjust the angle for maximum sunlight exposure.
Note: Make sure that both ends of the lower support beams are aligned with the same number.
C x2
H x4
°~°
45
40
35
30
45
40
35
30
A
C
B
45
40
35
30
45
40
35
30
45 40 35 30
5. Tighten all the screws with 5N.m torque.
N x1
5N.m
6. Connect the solar panel with the solar panel extension cable.
Note: To avoid falling, secure the solar panel extension cable on the balcony railings temporarily with zip ties.
1.5m
7. Fasten the Mounting Auxiliary Rope to the bracket and the balcony railing. Make sure the rope is tightened.
O x1
8. Install the solar panel's support brackets on the balcony railing, then secure them using fastening clamps and stainless steel
hose clamps.
T
·
Tighten the stainless steel hose clamps clockwise, and loosen the stainless steel hose clamps
counterclockwise.
·
At least 2 stainless steel hose clamps are needed to secure the brackets on one side.
E x1
K x2
G x4
J x4
9. Install the microinverter to the balcony railing with stainless steel hose clamps.
Note: The microinverter's front surface (with the Anker logo) should face outwards.
K x2
Check if all screws are tightened and complete the installation.
