Anker SOLIX - 0° Inclination Angle Installation Continued; Connecting Cables and Securing; Installing Brackets and Microinverter; Repeating Steps and Connections

EN 5453 EN

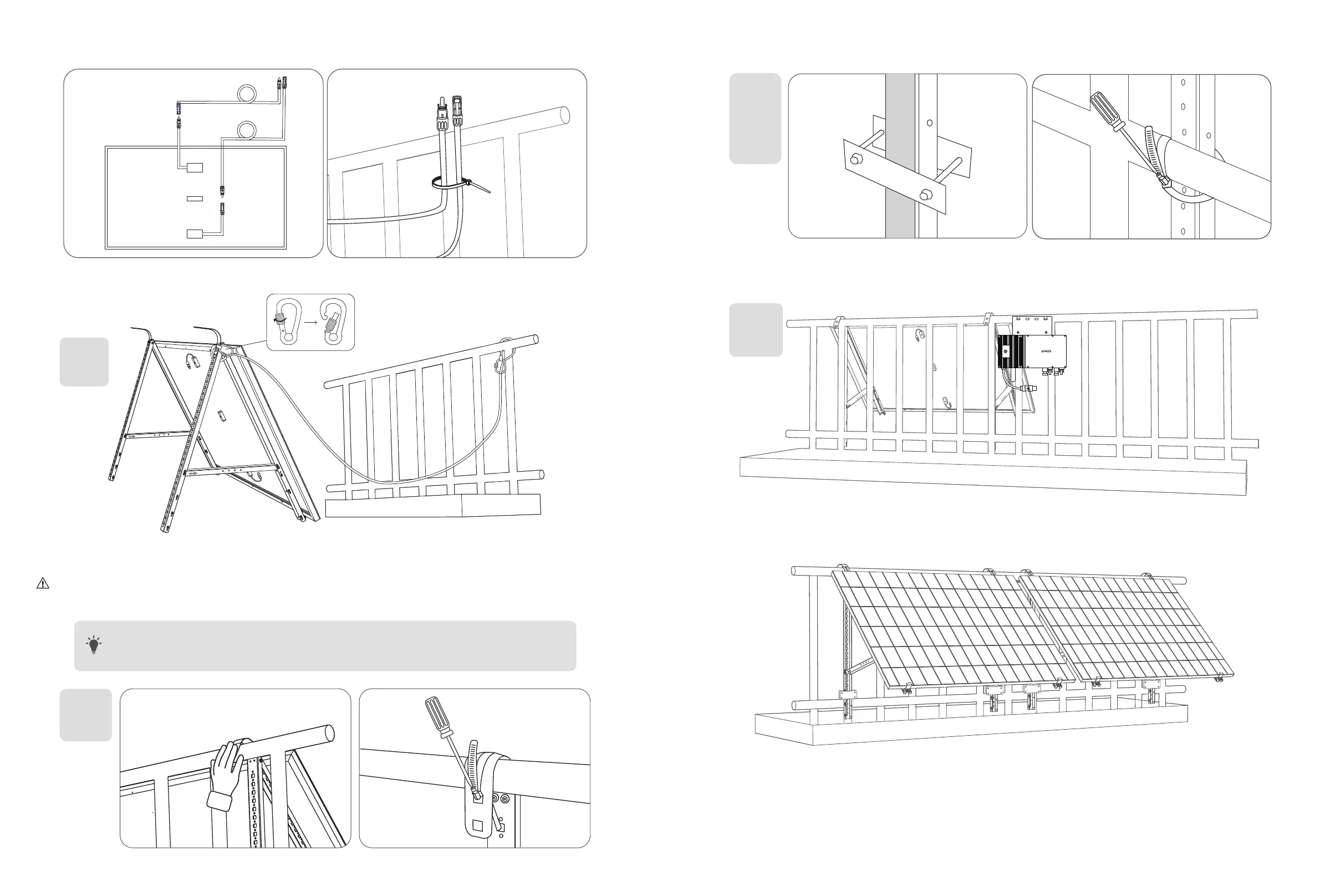

7. Connect the solar panel with the solar panel extension cable.
Note: To avoid falling, secure the solar panel extension cable on the balcony railings temporarily with zip ties.
1.5m
8. Fasten the Mounting Auxiliary Rope to the bracket and the balcony railing. Make sure the rope is tightened.
O x1
9. Hang the solar panel on the balcony railing and adjust the U-shaped racks manually to fit the shape of the balcony railing.
Then, secure the U-shaped racks with stainless steel hose clamps.
Hold the solar panel until the U-shaped racks are firmly secured with stainless steel hose clamps.
Pressing the U-shaped racks too often may cause the paint surface to crack.
T
·
Tighten the stainless steel hose clamps clockwise, and loosen the stainless steel hose clamps
counterclockwise.
·
At least 2 stainless steel hose clamps are needed to secure the brackets on one side.
K x2
10. Install the solar panel's support brackets on the balcony railing, then secure them using fastening clamps and stainless
steel hose clamps.
E x1
K x2
G x4
J x4
11. Install the microinverter to the balcony railing with stainless steel hose clamps.
Note: The microinverter's front surface (with the Anker logo) should face outwards.
K x2
Check if all screws are tightened and complete the installation.
12. Repeat the steps above to install another solar panel.
13. Connect the solar panel and the microinverter with the solar panel extension cables. When the LED indicator starts blinking,
wait for 90 seconds.
Note:
1. Ensure that two solar panels have been installed before this step.
2. This step must be done while there is enough sunlight for the solar panel to provide power to the microinverter.
