Option 2: 0° Inclination Angle

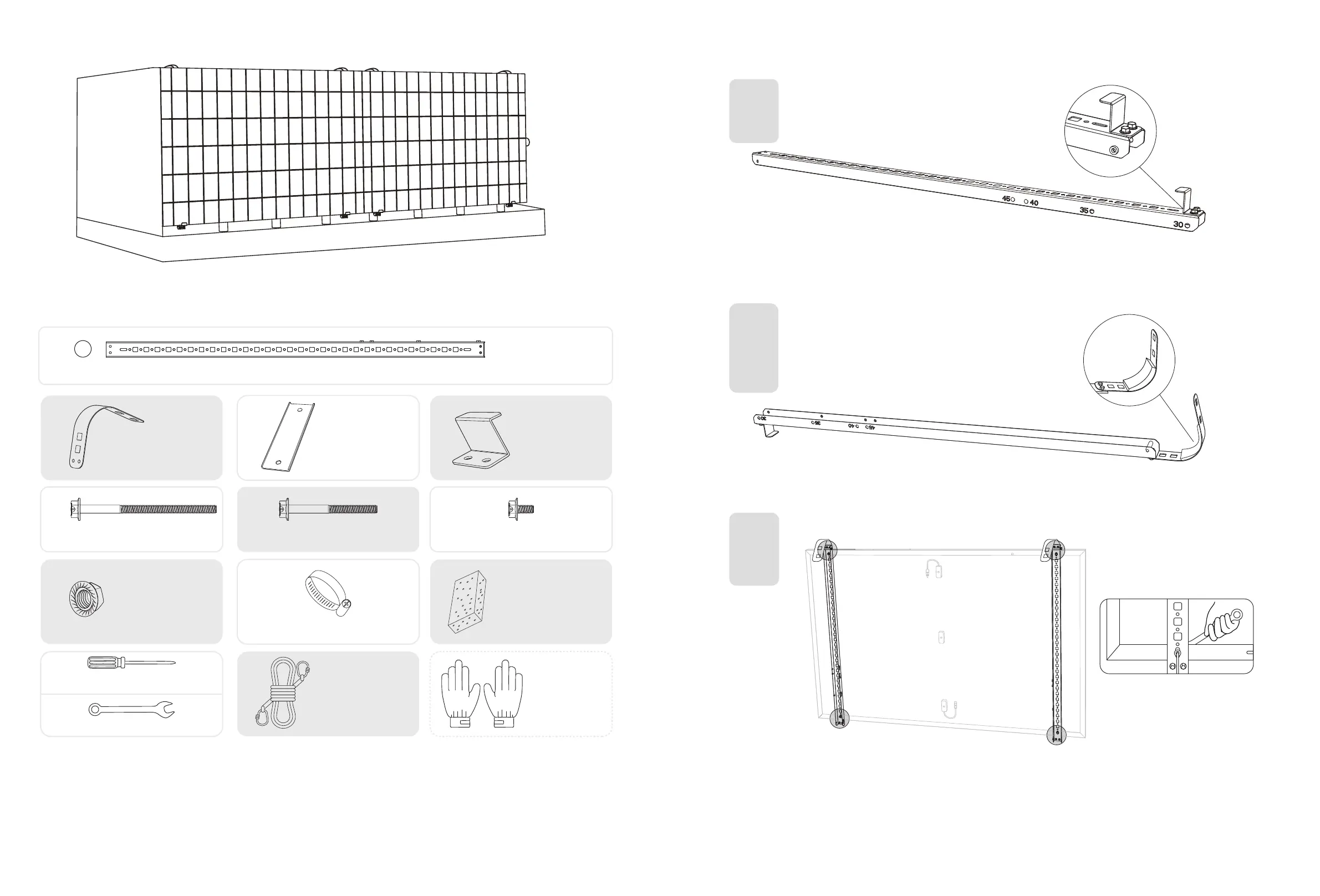

What You Need
Solar Panel Support Beam (×4)
A
mm
1200
HG I
D
E
F
J
K
L
U-Shaped Rack (×4)
M6×100 Hexagon Flange Bolt (×16) M6×65 Hexagon Flange Bolt (×12) M6×12 Hexagon Flange Bolt (×24)
Fastening Clamp (×8)
Limit Support (×4)
M6 Flange Nut (×20) 304 Stainless Steel Hose Clamp (×10)
Silicone Buer Pad (×4)
M
N
O
Phillips Screwdriver
Hexagon Wrench
Mounting Auxiliary Rope Work Gloves
(Not included)
1. Attach the limit supports to the numbered end of the solar panel's support beams.
Note: Make sure that the direction of the limit support is up, as shown in the figure.
A x2
F x2
I x4
2. Place the silicone buer pads onto the U-shaped racks, then mount the U-shaped racks to the solar panel's support beams.
A x2
D x2
L x2
I x4
3. Mount the solar panel support beams on the solar panel.
A x2
I x4
J x4
