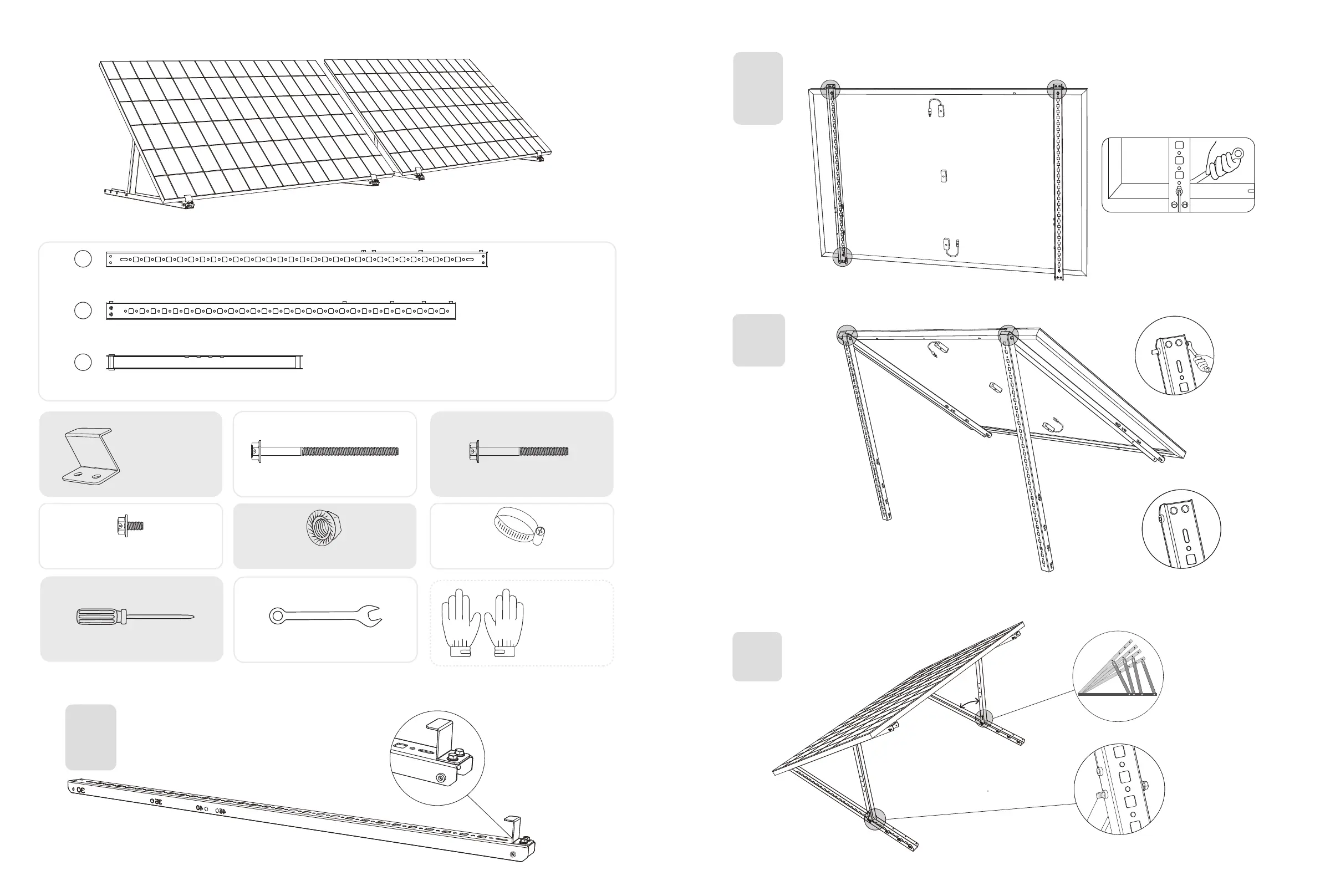

On the Ground
What You Need
G
M6×100 Hexagon Flange Bolt (×16)
H
M6×65 Hexagon Flange Bolt (×12)
I
M6×12 Hexagon Flange Bolt (×24)
F
Limit Support (×4)
J
M6 Flange Nut (×20)
N
Hexagon Wrench
Work Gloves
M
Phillips Screwdriver
(Not included)
K
304 Stainless Steel Hose Clamp (×10)
Solar Panel Support Beam (×4)
Vertical Support Scaolding (×4)
Lower Support Beam (×4)
C
mm
618
B
mm
110 0
A
mm
1200
1. Attach the limit supports to the non-numbered end of the solar panel's support beams.
Note: Make sure that the direction of the limit support is up, as shown in the figure.
A x2
F x2
I x4
2. Mount the solar panel support beams on the solar panel.
A x2
I x4
J x4
3. Install the vertical support scaoldings and solar panel support beams without tightening the screws.
B x2
H x2
4. Mount the lower support beams and adjust the angle for maximum sunlight exposure.
Note: Make sure that both ends of the lower support beams are aligned with the same number.
C x2
H x4
°~°
45
40
35
30
45
40
35
30
A
C
B
45
40
35
30
45
40
35
30
45 40 35 30
