11
• If an obstacle is level with the ground and it is safe for the robotic lawnmower to drive
over it, such as a driveway or sidewalk, only 8 cm of space is needed between it and the
perimeter wire.
• Configuration requirements for islandsand aisle sizes: yesi do not want the robotic
lawnmower to go to an area such as; flowers, bushes or trees, you can placea perimeter

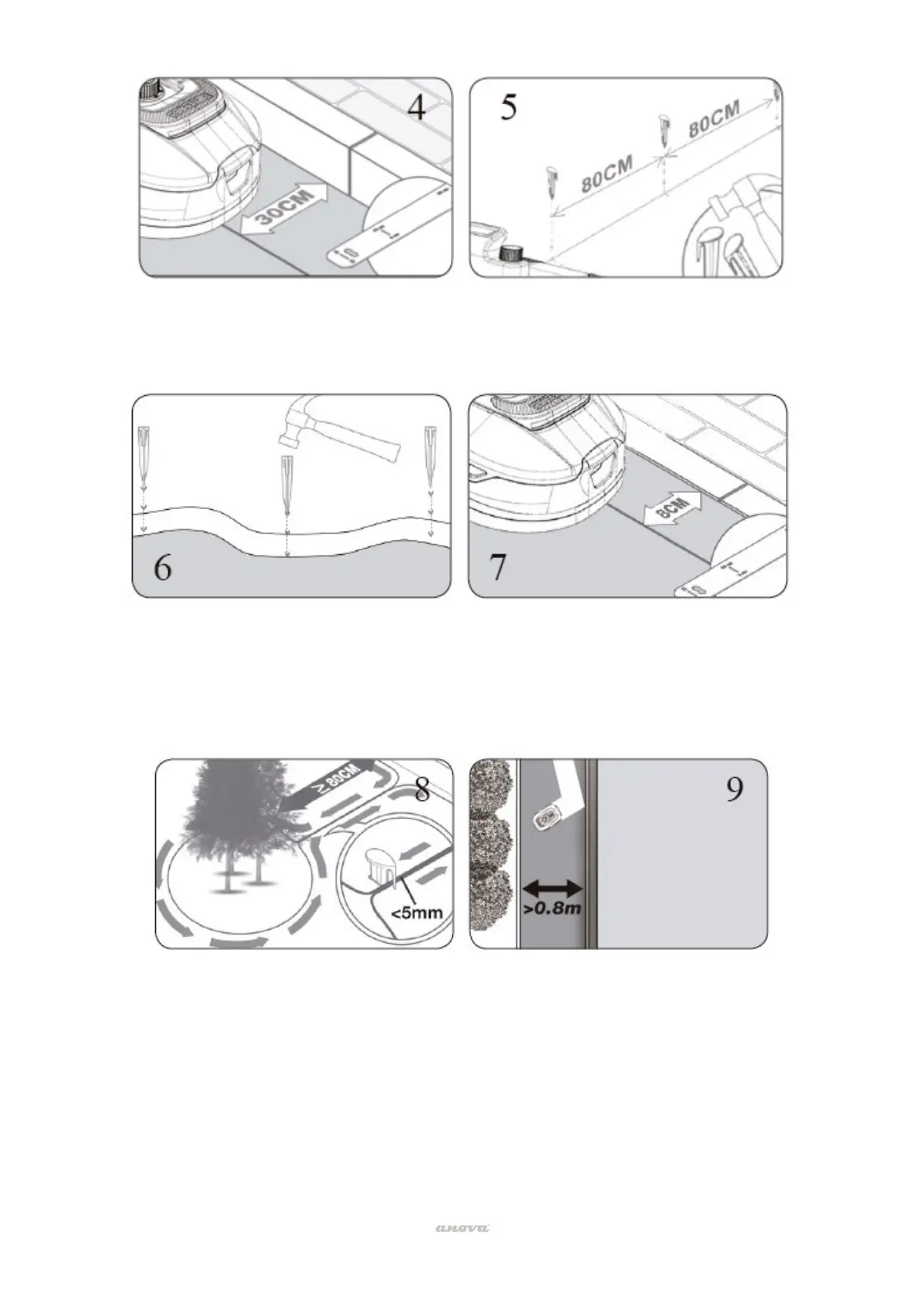

island for those elements of your garden. You can see the example mounting type in
figure 8.
As shown in figure 9, the robotic lawnmower can pass through a narrow passage up to
0.8m wide.
• Make sure the Perimeter Wire is perfectly straight at every corner and that all angles
made by the Perimeter Wire are 90° or greater. Avoid very sharp angles in the
installation.
