General Information 1-5 PC/PCIe Connections
MA25101A IG PN: 10580-00476 Rev. C 1-3
1-5 PC/PCIe Connections
The PC/PCIe connections to the analyzer are described below.
• “Connecting the MS2090A”
• “Connecting the MS27201A” on page 1-4
Connecting the MS2090A
1. Refer to Figure 1-2.
2. Open the side cover of the MS2090A to locate the Data Out and Ethernet ports.
3. Use the PCIe Nano pitch cable to connect the MS2090A Data Out port to the PCIe expansion card port
on the Personal Computer.
4. Use an Ethernet cable to connect the MS2090A Ethernet port to the Personal Computer.
5. Load the IQ Signal Master Signal Analysis Software as described in “Loading IQ Signal Master
Software” on page 1-4.
6. Install the PCIe driver and power on the analyzer as described in “Installing the PCIe Driver”
on page 1-4.

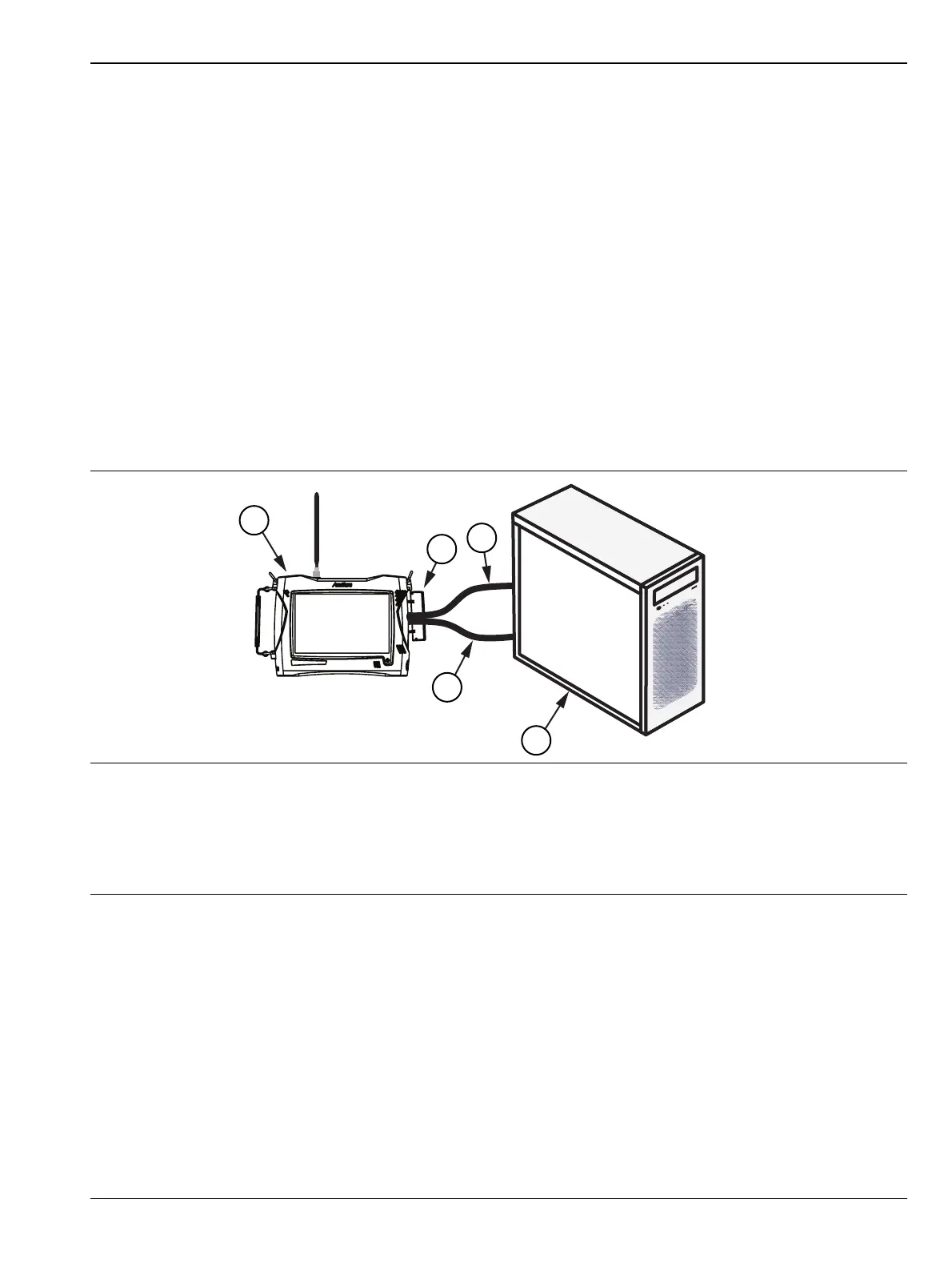

1. MS2090A Spectrum Analyzer
2. MS2090A Side Cover
3. Ethernet Cable
4. Personal Computer
5. PCIe Nano Pitch Cable
Figure 1-2. MS2090A PCIe Connection
