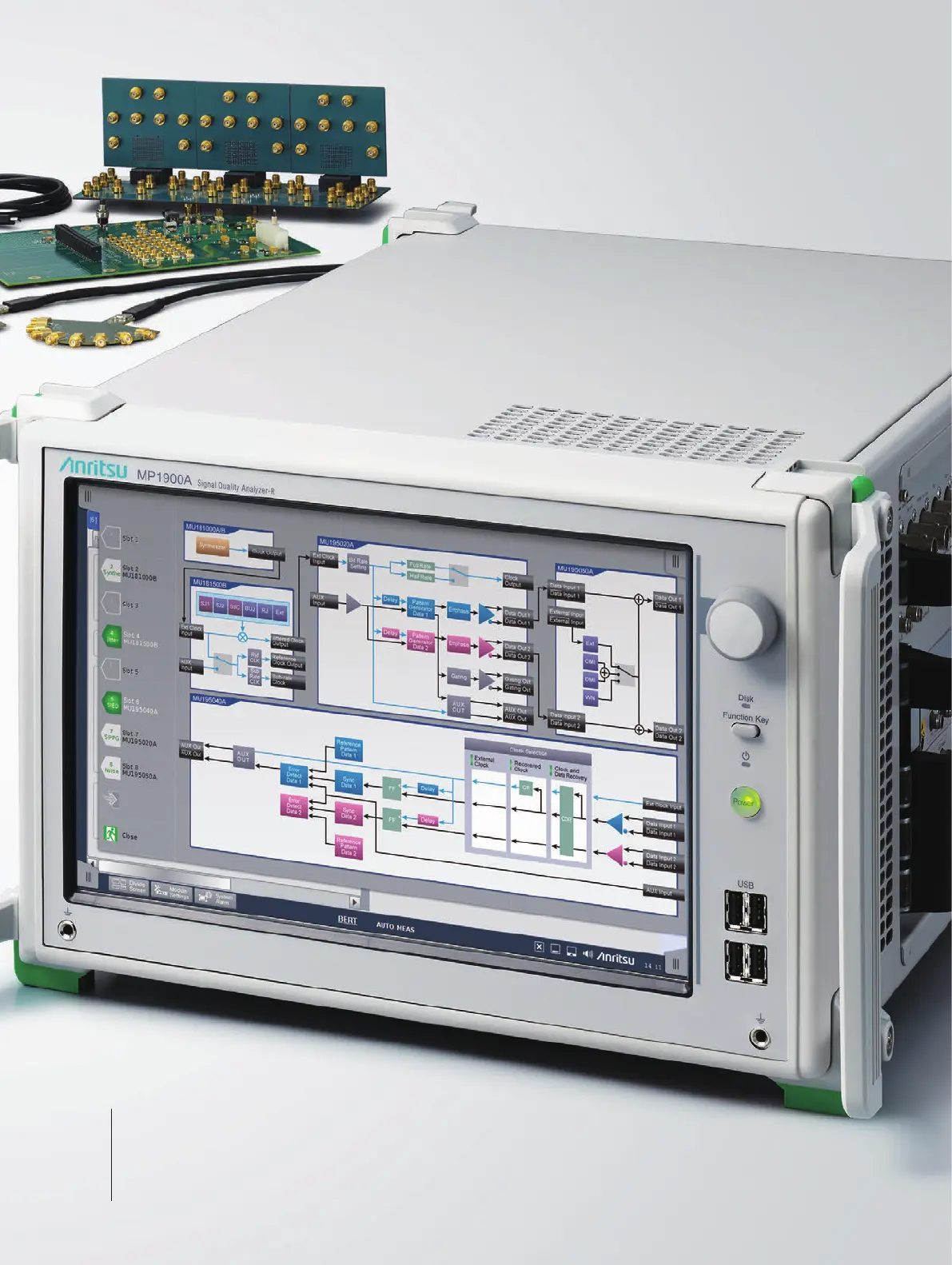

Anritsu SQA-R MP1900A - Wide Application Support

Due to the explosive growth of data traffic resulting from the popularity of smartphones
and mobile terminals, network interfaces are transitioning to faster 200 GbE/400 GbE
standards, and PCI bus interface speeds now exceed 10G. In addition, the equipment
and chipsets using these interfaces support multi-channels and multi-protocols.
The MP1900A is a high-performance BERT with excellent expandability for supporting
Physical layer evaluations of these high-speed interfaces. The all-in-one design is ideal
for early stage R&D evaluations of all interfaces covering next-generation Ethernet
networks to bus interconnects.
Support 400 GbE/800 GbE and PCIe Gen4/5
Signal Quality Analyzer-R
MP1900A
Wide Application Support
100 GbE/200 GbE/400 GbE/800 GbE, CEI-25G/28G/56G/112G, InfiniBand EDR/HDR, Fibre Channel
PCI Express Gen 1/2/3/4/5, Thunderbolt 1/2/3, USB3.2/4 Type C, SAS-3/-4, DP1.4
Optical module, SERDES, AOC, High-speed Interconnect
Excellent Expandability
Link Training
Signal Integrity
Evaluation
All-in-one support for both high-speed Ethernet
and PCI Express interface tests
Supports transmissions up to 512 Gbit/s
・
32G bandwidth : 16ch NRZ, 8ch PAM4
・
64G bandwidth : 4ch NRZ, 4ch PAM4
8 slots for adding extra modules
Backwards compatibility with
MP1800A series modules
Receiver tests are supported by the built-in
Protocol Awareness PCIe Link Training, USB
Link Training and LTSSM analysis functions.
Supports PCI Express Gen 1/2/3/4/5
USB3.2 Gen1/2
High Waveform Quality
and High Sensitivity
Low Intrinsic (Residual) Jitter output (115 fs rms)
High-sensitivity Data input (15 mV)
Operation bit rates from 2.4 Gbit/s to 32.1 Gbit/s
10Tap Emphasis built-in
Variable ISI Function
Multi-band CTLE
CDR Function (supports SSC)
Jitter Addition (SJ/RJ/BUJ/SSC) function
Voltage Noise Addition
(CM/DM/Gaussian) function
Certified for
PCIe Gen3/4
USB3.2
Thunderbolt 3
PCIe Gen5
USB4
Compliance Test
Ready
