13.2 OPERATION LED DISPLAY
If the electric drive was delivered together with a LED display the drive fun-
ctions would be adjusted by this display.

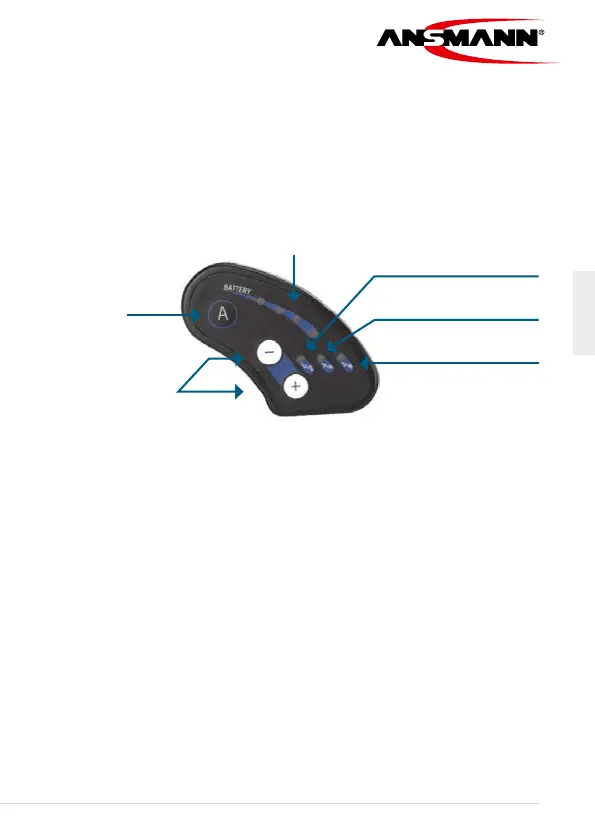

At the display you have LED signals for the battery level and the motor
assist levels. All functions will be selected by 3 buttons on the display.
pushing aid
assist level selection
LED blinking = assist level 1
LED ON = assist level 2
LED blinking = assist level 3
LED ON = assist level 4
LED blinking = assist level 5
LED ON = assist level 6
battery level
When the electric drive was switched on at the battery the motor assist
level 2 is automatically preselected. With the buttons “ – “ und “ + “ the
motor assist levels could be changed to level 0 (no motor assist) and from
level 1 to level 6. Depends on the selected motor assist level you will get
different motor speed (cruise control function). When you press the button
“ A “ the motor will give a speed of max. 6km/h without pedaling (pushing
aid function) as long as you press this button.
13.3 OPERATION LCD DISPLAY
If the electric drive was delivered together with a LCD display the drive fun-
ctions would be adjusted by this display. The LCD display is equipped with
additional speedometer functions.
The selection of assist levels and the speedometer functions will be done by
the 3 buttons.
