ORIGINAL OPERATING INSTRUCTIONS - ELECTRIC DRIVE FOR PEDELECS
36
10. HOLDER FOR THE CARRIER BATTERY
The holder (battery case) for the flat battery and the box for the motor
controller is factory-equipped assembled with the carrier. At the battery
case the connecting cable for the connection to the motor controller is
already assembled. The carrier should be assembled to the bicycle at its
defined positions.

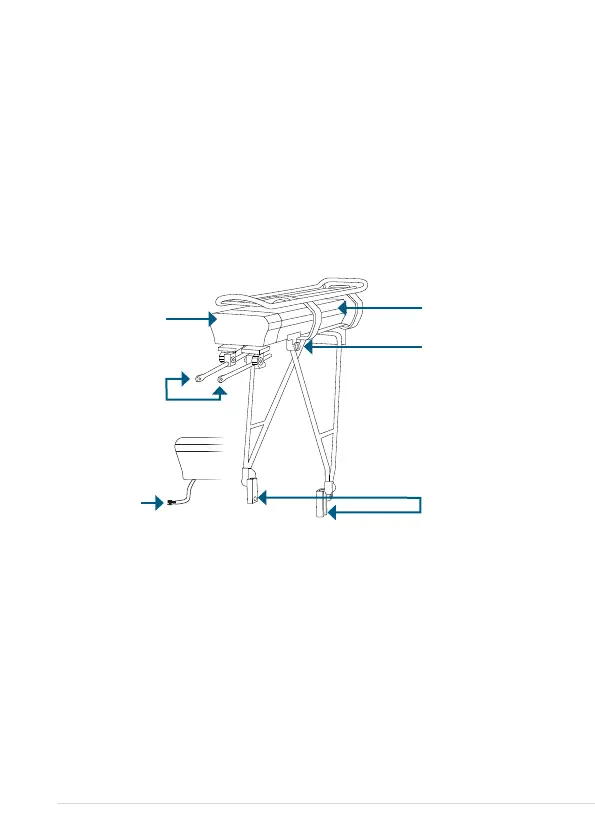

battery case
box for the
motorcontroller
connection for
the battery
assembling points
for the frame
lock for the battery
assembling points
for the frame
11. USING THE BATTERY / CHARGER
Charge the battery completely before the first use! The battery can be
charged either on or detached from the bicycle. A lock helps keep the bat-
tery fastened to the bicycle. To remove the battery from the bicycle, first
open the lock. At the down tube battery open the lock by turning the key
clockwise (1.), then push the battery out of its holder (2.). When assembling
the battery to the bicycle, the battery locks on its own (theft deterrence)
as soon as the battery is pushed completely onto the holder (the key is not
needed to lock it).
