4 ELECTRICAL SPECIFICATIONS
4.1 OPERATING VOLTAGE: 18-32 VDC
4.2 POWER CONSUMPTION:
M
ax. 25 mA in Stand-by
M
ax. 50 mA in Alarm
4.3 ELECTRIC INPUT PROTECTION:
The input circuit is protected against voltage-reversed polarity, voltage transients, surges and spikes according to MIL-STD-1275.

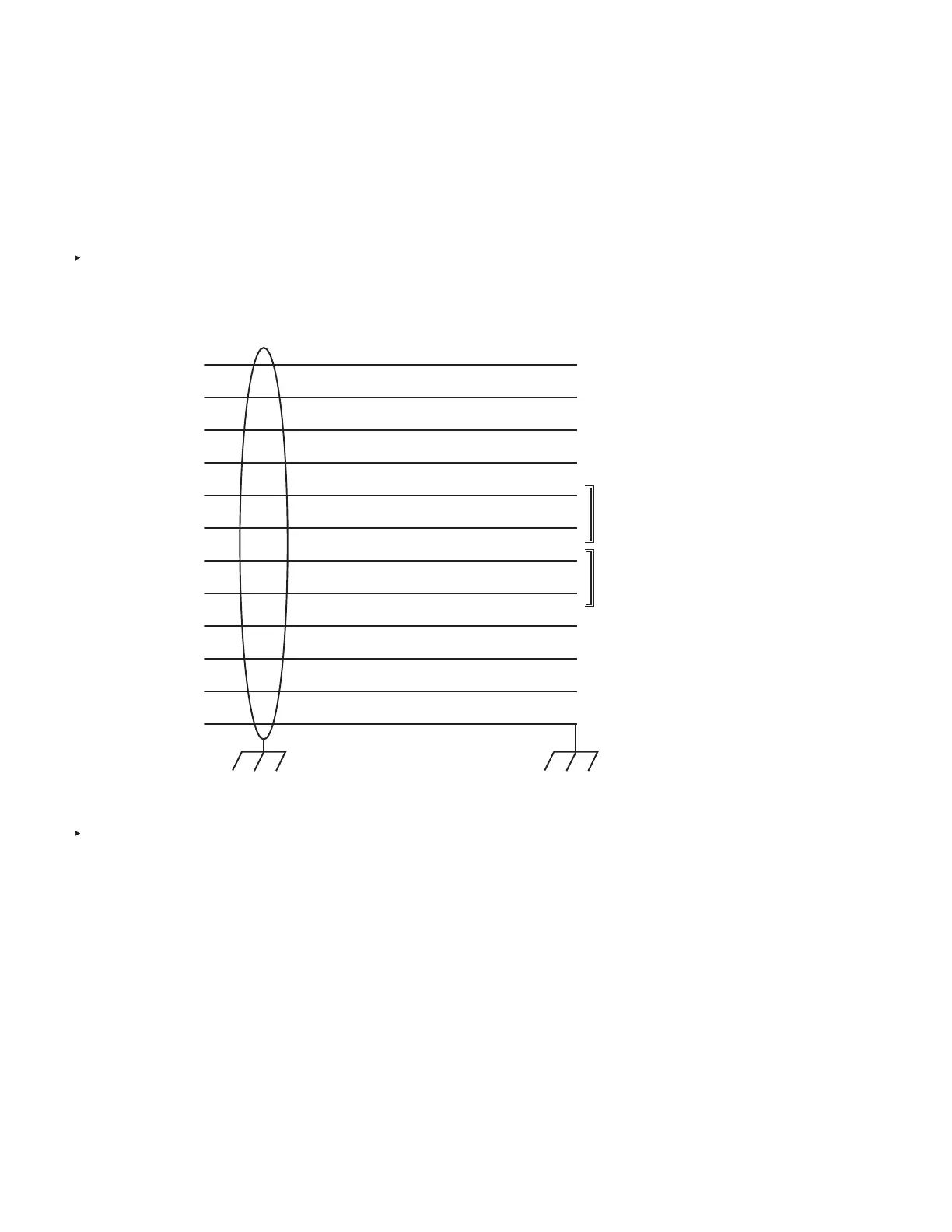

FIGURE 5: CONNECTOR INTERFACE
E
LECTRICAL SPECIFICATIONS
7
-1-07 Page 9
REV. 2
006852
1
2
3
4
5
6
7
8
9
10
11
12
SHIELD GROUND
FAULT RELAY
CONTACT
(NC)
ALARM RELAY
CONTACT
(NO)
POWER (18-32VDC)
RETURN (–)
4-20mA IN – NOT USED WITH
CHECKFIRE SC-N SYSTEM
4-20mA OUT – NOT USED WITH
CHECKFIRE SC-N SYSTEM
RS 485 (–) – USED ONLY FOR DETECTOR
PROGRAM SET-UP COMMUNICATION
RS 485 (+) – USED ONLY FOR DETECTOR
PROGRAM SET-UP COMMUNICATION
MANUAL BIT ACTIVATION – NOT USED
WITH CHECKFIRE SC-N SYSTEM
GROUND
