Antari FT-200 - Menu Options Description; Menu Settings Explained; DMX Connection; DMX Pin Assignment

5
Rotary Knob
Operating Method
Action
TIMER knob (Left)
Press once
Enter/Confirm Selection
TIMER knob (Left)
Rotate
Adjust for Preferred Value
VOLUME knob (Right)
Press once
Return to Previous Page
8.2 Menu Options Description
Options
Description
Timer Interval xxx S
Set Interval Time from 5-200 sec
Timer Duration xxx S
Set Duration Time from 1-200 sec
Timer Output xxx%
Set Output Volume from 1-100%
Volume Output xxx%
Set Output Volume from 1-100%
DMX512 Address:xxx
Set DMX Address from 001-512
Wireless ON
Turn ON/OFF Wireless Function
Fluid Sensor Set ON
Turn ON/OFF Fluid Sensor
W-DMX Power
Turn ON/OFF W-DMX Function
Run Last Setting OFF
Turn ON/OFF Memory Mode (Turn ON, the machine will remember last setting)
Keypad Sound
Turn ON/OFF Rotary Knob Sound
Wireless Detect Pair
Pair or Unpair Wireless Remote
Nonstop Burst OFF
Turn ON/OFF Nonstop Burst Function (Turn ON, continous fogging nonstop)
9. DMX Connection

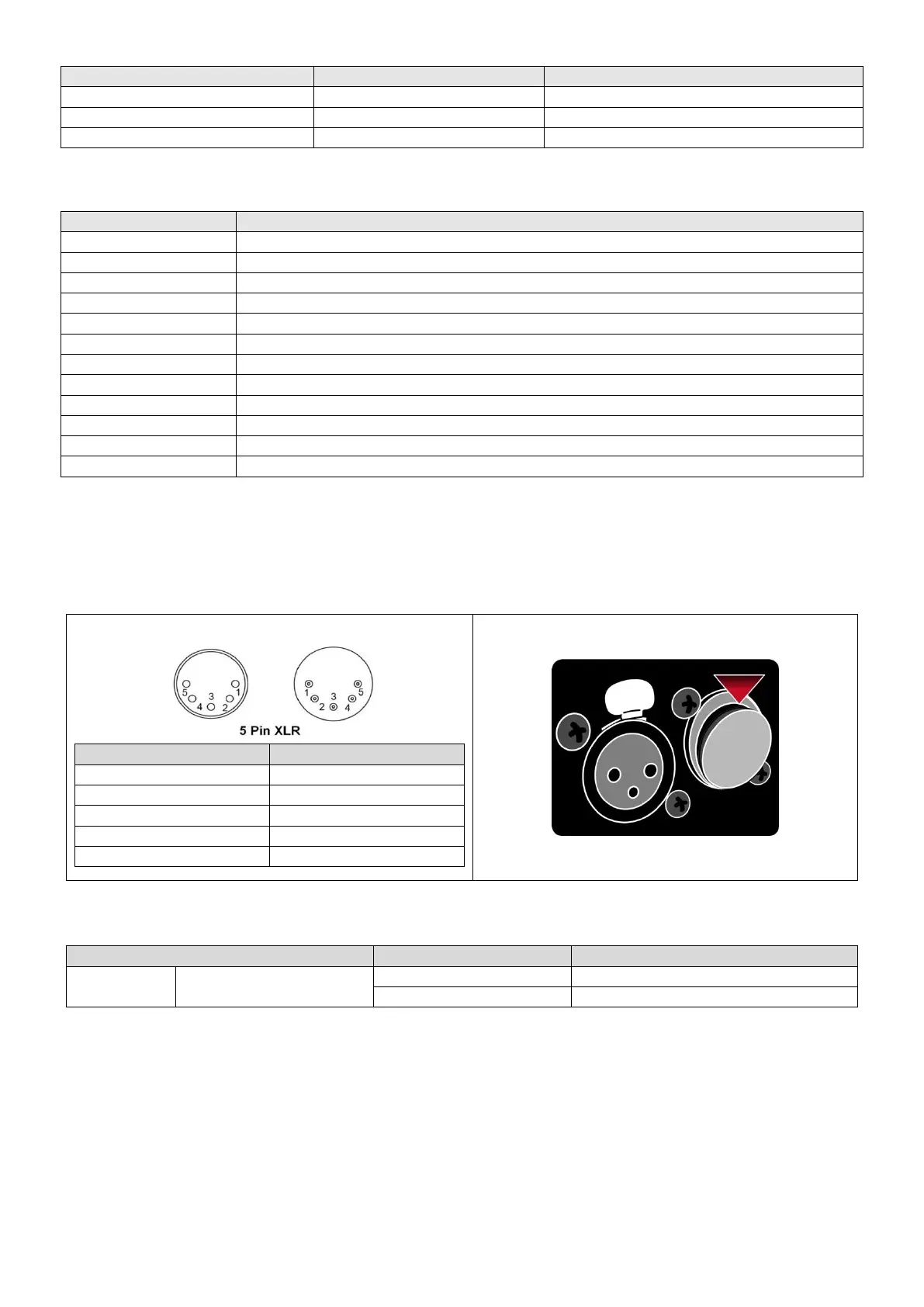

9.1 DMX Connector Pin Assignment
This machine has a XLR 5-Pin connector for DMX connection. The diagram below indicates pin assignment
information;
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
**There is a protection cap on DMX IN, please
remove it with your finger before operation.
9.2 DMX Channel Function
1 Channel Mode
DMX Value Range
Function
Channel 1
Fog Output Level
0 – 4
Off
5 – 255
1 – 100%
10. WTR-20 Wireless Remote (Standard)
WTR-20 Wireless Remote is a standard accessory for FT-200 Fire Training Fog Machine, it included a W-2
wireless transmitter and a W-2 wireless receiver (Already installed on the machine), it’s ready to use. If you
encounter any problem, please contact your local Antari dealer for assistant.
10.1 W-2 Wireless Transmitter & Receiver
 Battery：27A 12V
 Effective Range：The effective range is approximately 50m,
