5
INSTALLATION

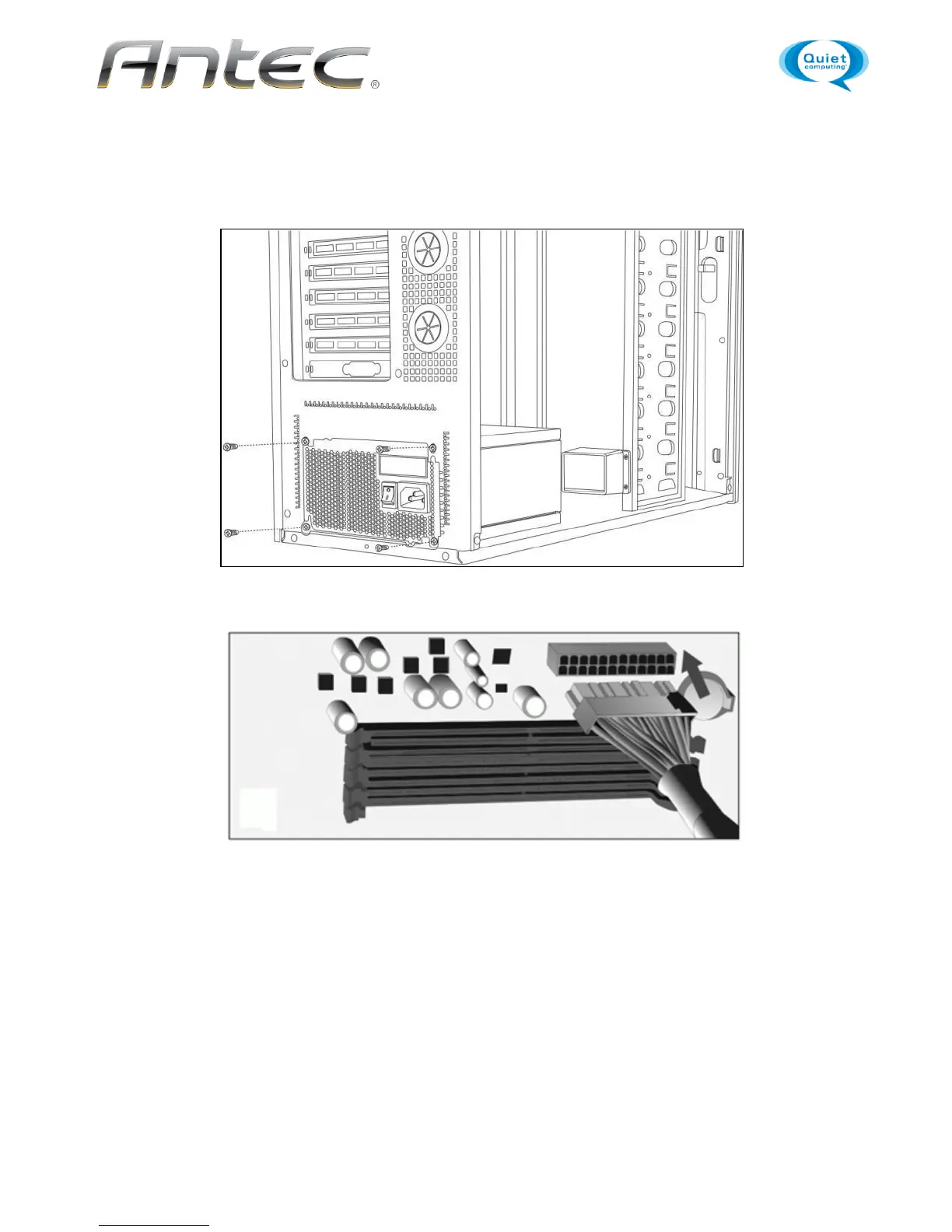

Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your
case manual if you are unsure where the power supply should be installed.
Connect the 24-pin main power connector to your motherboard.
Connect the 8-pin or 4+4-pin connector for the CPU. If your motherboard has an 8-pin socket with a
cover on some of the openings, we recommend that you remove the cover and use the 8-pin
connector.
Note: Please also refer to your motherboards manual for any special instructions.
