Antec Mini Skeleton-90 - Case Specifications; Diagram

3
1.1 C ASE S PECIFICATIONS
Case Type
Open
-
Air
Mini
-
ITX
Color
Metallic Silver
Dimensions
7.5” (
H
) x 8.3” (W) x 9.1” (D)
190mm (H) x 210mm (W) x 230mm (D)
Weight
5.5 lbs / 2.5 kg
Cooling
1 x 1
5
0mm
3
-
Speed
B
lue LED
Overhead Fan
1 x 70mm Rear Intake Fan
Drive Bays
2
x Qu
ick Release 2.5” Hard Drive Bay
s
1 x Quick Release 5.25" Bay
2 x Externally Mounted 2.5" Hard Drive Bays
Motherboard Size
Mini
-
ITX
Front I/O Panel
2 x USB 2.0
Audio In and Out (HDA and AC’97)
Power Supply
EP
-
90:
90
-
watt power adapter and PCB

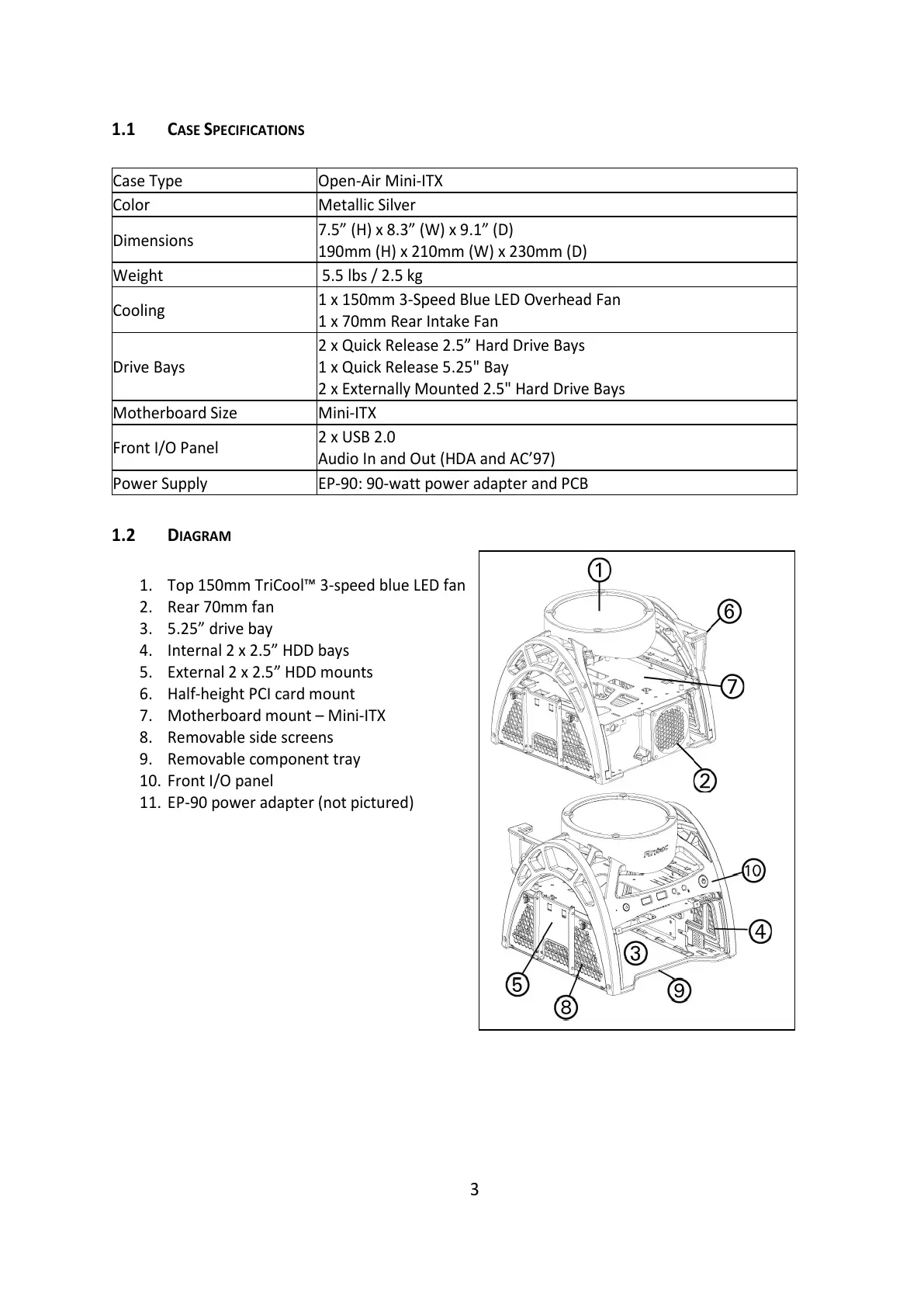

1.2 D IAGRAM
1. Top 150mm TriCool™ 3-speed blue LED fan
2. Rear 70mm fan
3. 5.25” drive bay
4. Internal 2 x 2.5” HDD bays
5. External 2 x 2.5” HDD mounts
6. Half-height PCI card mount
7. Motherboard mount – Mini-ITX
8. Removable side screens
9. Removable component tray
10. Front I/O panel
11. EP-90 power adapter (not pictured)
