Antec TRUEPOWER TP-650 - Power Output Specifications

T ABLE 2
P OWER O UTPUT
The TP-650 distributes a maximum number of amps on each rail. To see the output capacity and regulation for each
different voltage, see Table 3.
T ABLE 3
Voltage Min. Load Max. Load Regulation Ripple & Noise
+3.3V 0A 25A ±5% <50 mV
+5V 0A 25A ±5% <50 mV
+12V1 0A 22A ±3% <120 mV
+12V2 0A 22A ±3% <120 mV
+12V3 0A 25A ±3% <120 mV
+12V4 0A 25A ±3% <120 mV
–12V 0A 0.8A ±10% <120 mV
+5VSB 0A 3A ±5% <50 mV
The continuous maximum total output power shall not exceed 650W.
+12V1, +12V2 , +12V3 and +12V4 DC maximum output power shall not exceed 648W (54A).
+3.3V and +5V DC maximum combined output power shall not exceed 170W.

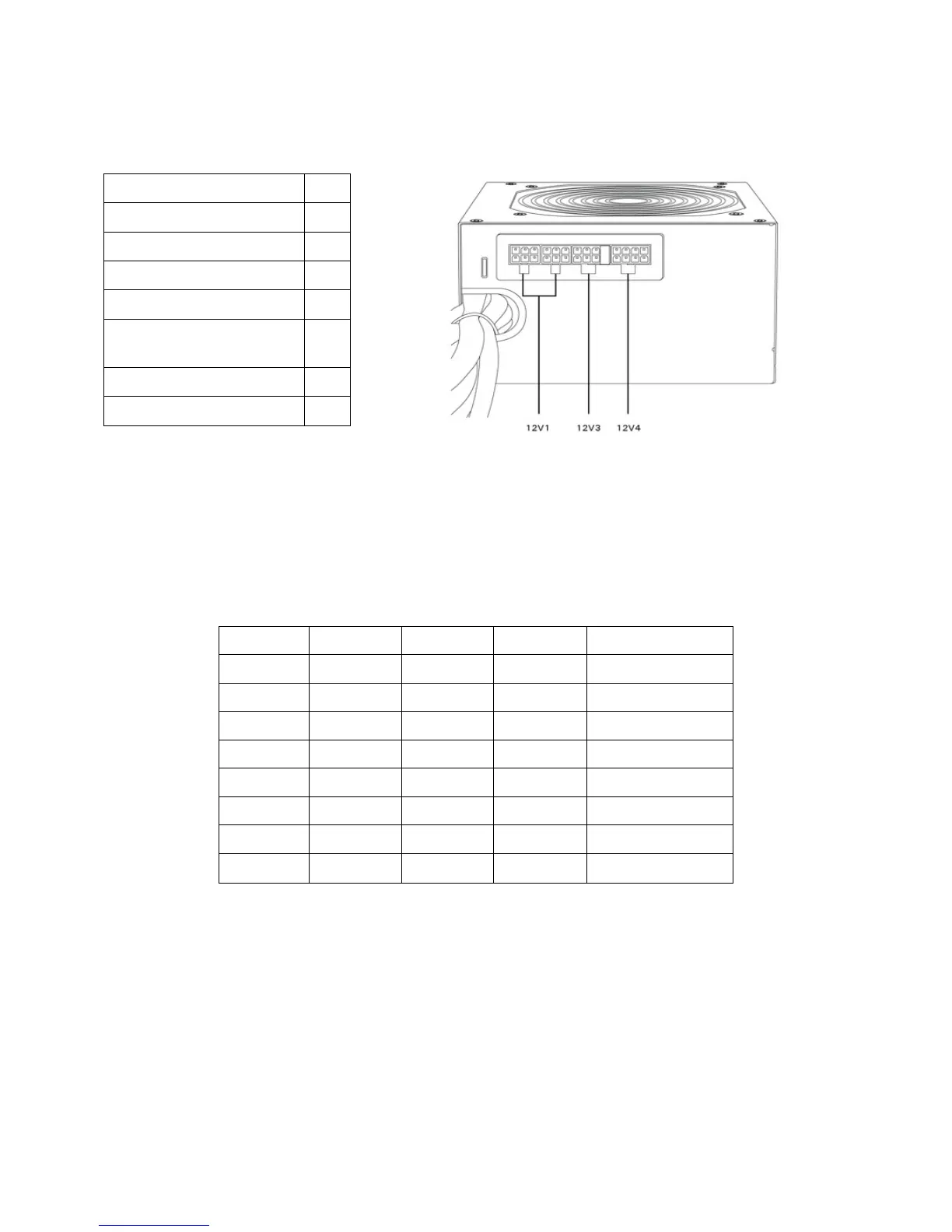

Direct Cabling Connectors Rail
(20+4) main connector 1
4-pin ATX12V 2
8-pin EPS12V 2
PCI-E w/ blue stripe 3
PCI-E w/ green stripe
(modular)
4
Molex cable from PSU 1
SATA cable from PSU 1
