Pure2 User Manual 18
● 'W.C.' – External word clock reference generator.
● 'Digital' – External digital input.
● 'USB' – Slave to computer playback. Note that the unit is still clocked by its internal
oscillator in 'USB' mode.
Tab Selector
Choose from 'Main', 'Digital', 'I/O', and 'Settings' views.
Downsize Button
Reduces the Control Panel's screen size.
Help Button
Displays Control Panel version, hardware version, device serial number, and firmware
version. You can also launch the Firmware Update wizard to check for and initiate firmware
updates.
Minimize Button
Minimize the Control Panel
X Button
Close the Control Panel.

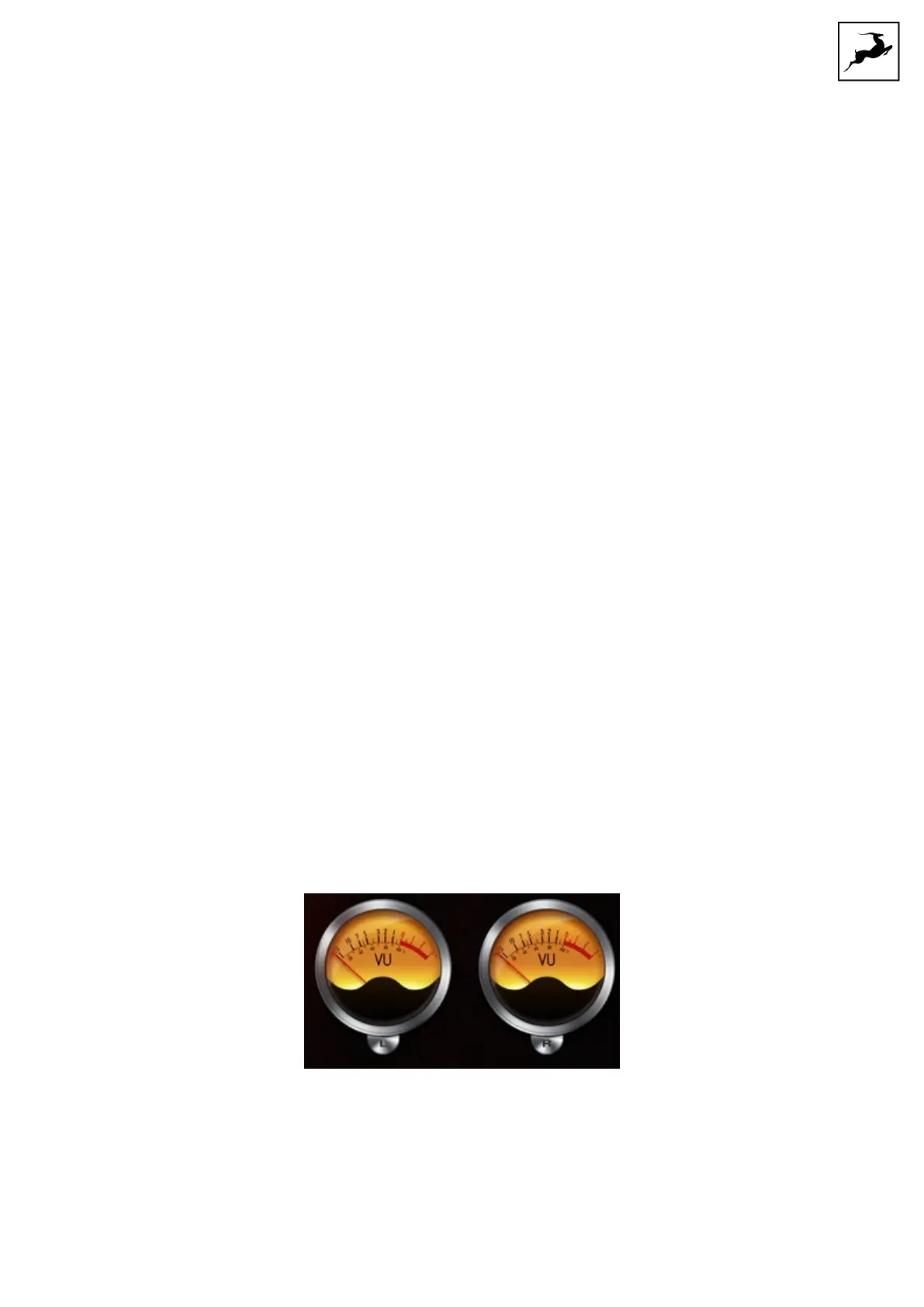

2. VU Meters
Virtual volume meters for the L/R analog and monitor outputs.
