Anybus X-gateway - 3 Installation; 3.1 DIN Rail Mounting

Installation 11 (18)
3 Installation
3.1 DIN Rail Mounting
The unit must be electrically grounded through the DIN rail for EMC compliance.
Mount on DIN rail
The unit is designed to be mounted on a standard DIN rail. No tools are needed.
1
2

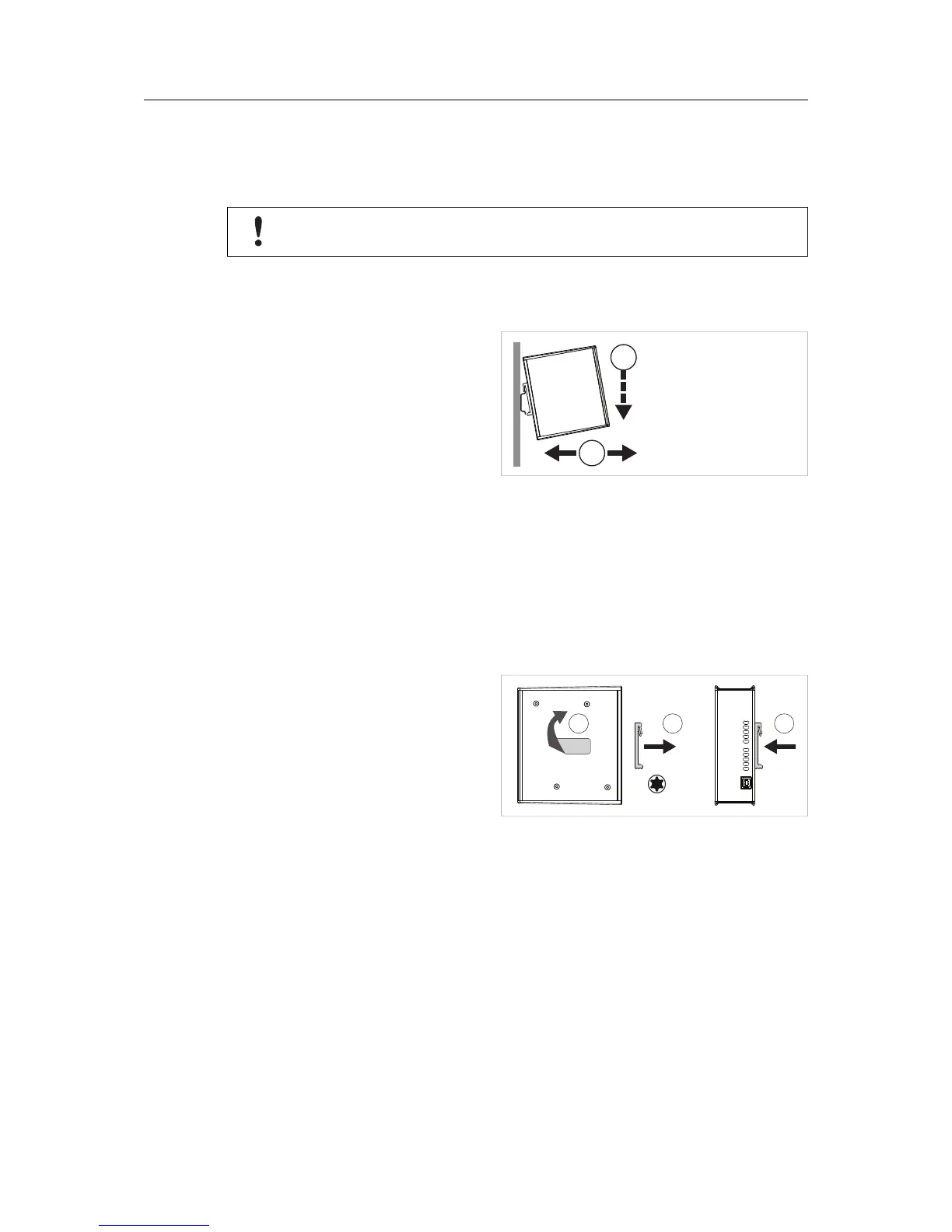

Fig. 5 Push down to mount or remove
1. Hook the unit onto the upper lip of
the rail and push gently downwards.
2. Push the unit towards the rail until it
snaps into place.
Remove from DIN rail
1. Push the unit gently downwards on the rail.
2. Pull the bottom end of the unit free of the rail and remove it.
Sideways Mounting
The unit can alternatively by mounted sideways on the DIN rail. A T10 Torx screwdriver is
needed to reposition the DIN clip.
Remove for optional DIN retting
T10
21 3
Fig. 6 Refit the DIN clip to the side panel
1. Remove the sticker covering the
screw holes on the right side panel.
2. Unscrew the DIN clip from the back
of the unit.
3. Refit the DIN clip to the side panel.
Anybus
®
X-gateway
™
User Manual HMSI-27-262 3.0
