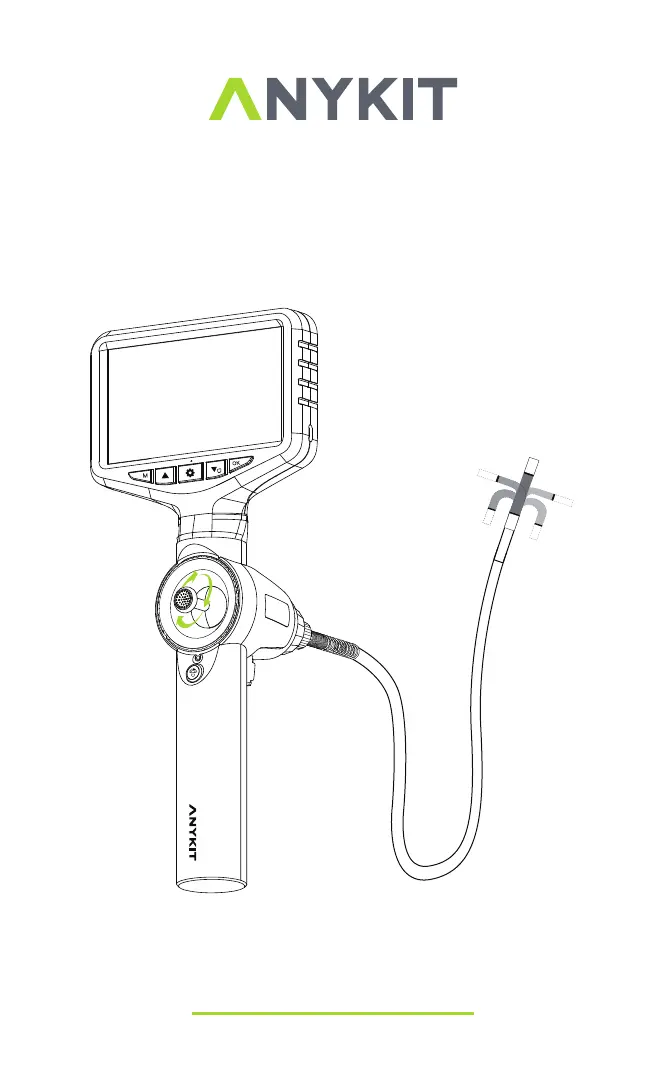

This document describes the ANYKIT 360° Articulating Borescope, Model No.: AN150P, a versatile inspection tool designed for various applications.

Function Description:

The ANYKIT AN150P is a 360° articulating borescope equipped with a 5-inch HD IPS screen. It allows users to inspect hard-to-reach areas with a flexible probe that can be steered 360° using a joystick, offering a 210° image rotation. The device supports both photo taking and video recording, with adjustable LED lights to illuminate inspection areas. Its detachable screen design enhances portability and ease of use. The borescope is intended for industrial and household inspection tasks, not for medical use or personal inspection.

Important Technical Specifications:

Image Resolution: 1920*1080
Video Resolution: 1280*720
Depth of Field (DOF): 20-100mm
Field of View (FOV): 70°
Manual Dimming: Three adjustment levels for LED lights
Power Supply: 3.7V
Use Time: Approximately 4 hours
Battery Capacity: 3000mAh
Camera Light Source: Adjustable LED
Waterproof Grade: IP67
Camera Probe Material: Wear-resistant metal hose
Camera Probe Length: 5ft (1m)
High Temperature Protection: High temperature intelligent protection
Articulation: 360 Degrees
Steering Angle: ≤ 210°
Bending Radius: 38mm
Storage: Standard 32GB-TF Card (inserted)
Operating Environment Temperature: -20℃~70℃
Input Voltage: DC5V/1A
Humidity: 10~80%

Usage Features:

The borescope is designed for straightforward operation.

Installation: The screen and handle connect firmly with an audible click.
Power On/Off: Press and hold the "POWER" button for a few seconds.
Low Battery Indicator: A battery icon on the screen indicates low battery, prompting a full charge before use.
Mode Switching: The "M" button cycles between photo taking, video recording, and playback modes.
Temperature Unit: The display unit for temperature can be switched between Fahrenheit and Celsius via the settings menu.
Date and Time: Date and time can be modified in the Settings menu.
LED Brightness Adjustment: A short press of the power button adjusts the camera light brightness through bright, medium, dim, and off cycles.
Articulating Lens: The articulation wheel allows for 210° rotation of the lens field of view. To achieve maximum articulation, the cable should not be coiled.
Photo/Video Capture: In photo or video recording mode, press the dedicated button (located at the back of the product) to capture images or start recording.
Image Playback: In playback mode, use the up/down buttons to select photos or videos, then press "OK" to view.
TF Card Management: The device comes with a TF memory card inserted. To eject, gently press the card. Ensure the device is powered off before inserting or removing the TF card, and verify correct orientation to prevent damage.
File Transfer: Photos and videos can be copied to a computer using a TF card reader or by connecting the device directly via a Type-C USB cable.

Maintenance Features:

Proper maintenance ensures optimal performance and longevity of the borescope.

Cleaning Before Use: Power off and disconnect the borescope. Delicately wipe the camera lens with a soft microfiber cloth and cotton swab to remove dust and smudges.
Screen Cleaning: Use a microfiber cloth with a mixture of warm water and medical-grade alcohol to gently wipe off dust and fingerprints. Avoid abrasive cleansers, chemicals, or solvents. Ensure no moisture infiltrates device openings and that the device is thoroughly dry before reconnecting power.
Storage: Store the device powered down in a dry, cool, and well-ventilated area. If the probe is coiled, do so gently without bending it too tightly, avoiding tighter coiling than its original packaging. Protect it from direct sunlight, extreme temperatures, humid conditions, sharp objects, and heavy items.
Troubleshooting: The manual provides a comprehensive troubleshooting guide for common issues such as "No Camera," "Blurry Picture," "Cannot Be Turned On," "TF Card Insertion Error," and "Device Heating Up," offering solutions like checking connections, recharging, cleaning lenses, or adjusting settings. Customer support is available for further assistance.

The ANYKIT AN150P is designed to be a reliable and user-friendly tool for various inspection needs, emphasizing simplicity and ease of use.
