27
4. Input/Output Specification

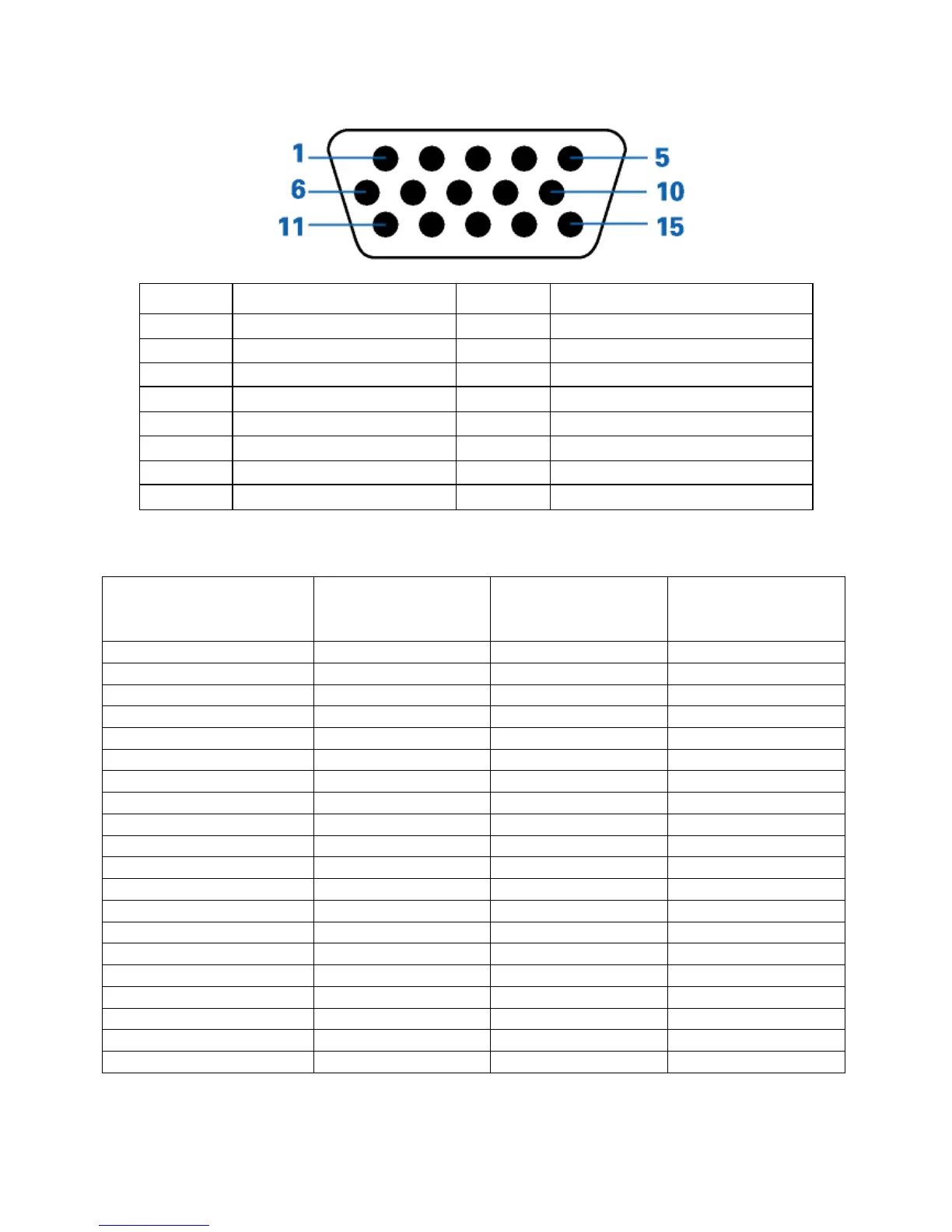

4.1 Input Signal Connector
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1 Video-Red 9 +5V
2 Video-Green 10 Ground
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC-Serial clock
8 GND-B
4.2 Factory Preset Display Modes
STAND RESOLUTION
HORIZONTAL
FREQUENCY(kHZ)
VERTICAL
FREQUENCY(Hz)
VGA 640×480 @60Hz 31.469 59.94
VGA 640×480 @67Hz 35 66.667
VGA 640×480 @72Hz 37.861 72.809
VGA 640×480 @75Hz 37.5 75
Dos-mode 720×400 @70Hz 31.469 70.087
SVGA 800×600 @56Hz 35.156 56.25
SVGA 800×600 @60Hz 37.879 60.317
SVGA 800×600 @72Hz 48.077 72.188
SVGA 800×600 @75Hz 46.875 75
SVGA 832×624 @75Hz 49.725 74.55
XGA 1024×768 @60Hz 48.363 60.004
XGA 1024×768 @70Hz 56.476 70.069
XGA 1024×768 @75Hz 60.023 75.029
XGA 1024×768 @75Hz 60.241 74.927
*** 1280×960 @60Hz 60 60
SXGA 1280×1024 @60Hz 63.981 60.02
SXGA 1280×1024 @75Hz 79.976 75.025
WXGA+ 1440×900 @60Hz 55.935 59.887
WSXGA 1680X1050 @60Hz 65.29 59.954
HD 1920×1080@60Hz 67.5 60
