10. Firmware and DDC Instruction
10.1Firmware Instruction(TSUM IC ISP for exemple ：TSUM1PFL-LF )

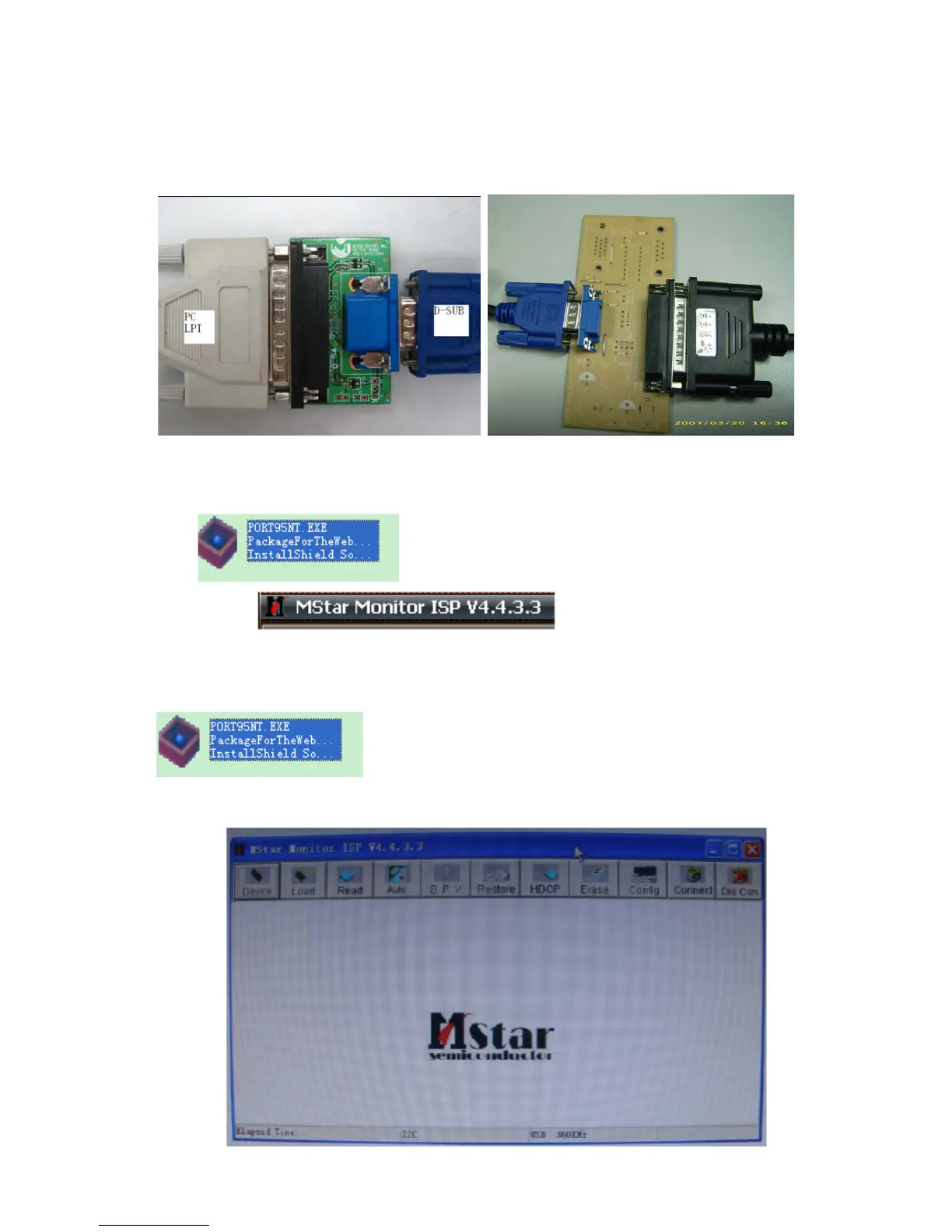

Step 1:connect system:
1. LPT cable connect PC and ISP board ;
2. VGA cable connect monitor and ISP board ;
3. Monitor AC power on ;
4. Reference picture as below ：
ISP board (PCB:715GT039‐A or other same function tool)
Step 2： software list ：
1. LPT driver:
2. MSTAR ISP TOOL:
3. Program CODE for monitor :
Eg：GW_M937_TSUM1PLR‐LF‐CLAA185W03_20100208_V006_B582.BIN
4.Setup LPT driver:run Port95nt icon .
Step 3：program
1. Run MSTAR ISP Tool V4.4.3.3，interface as below:
