AOC 24B2XDM User Manual

9
Connecting the Monitor

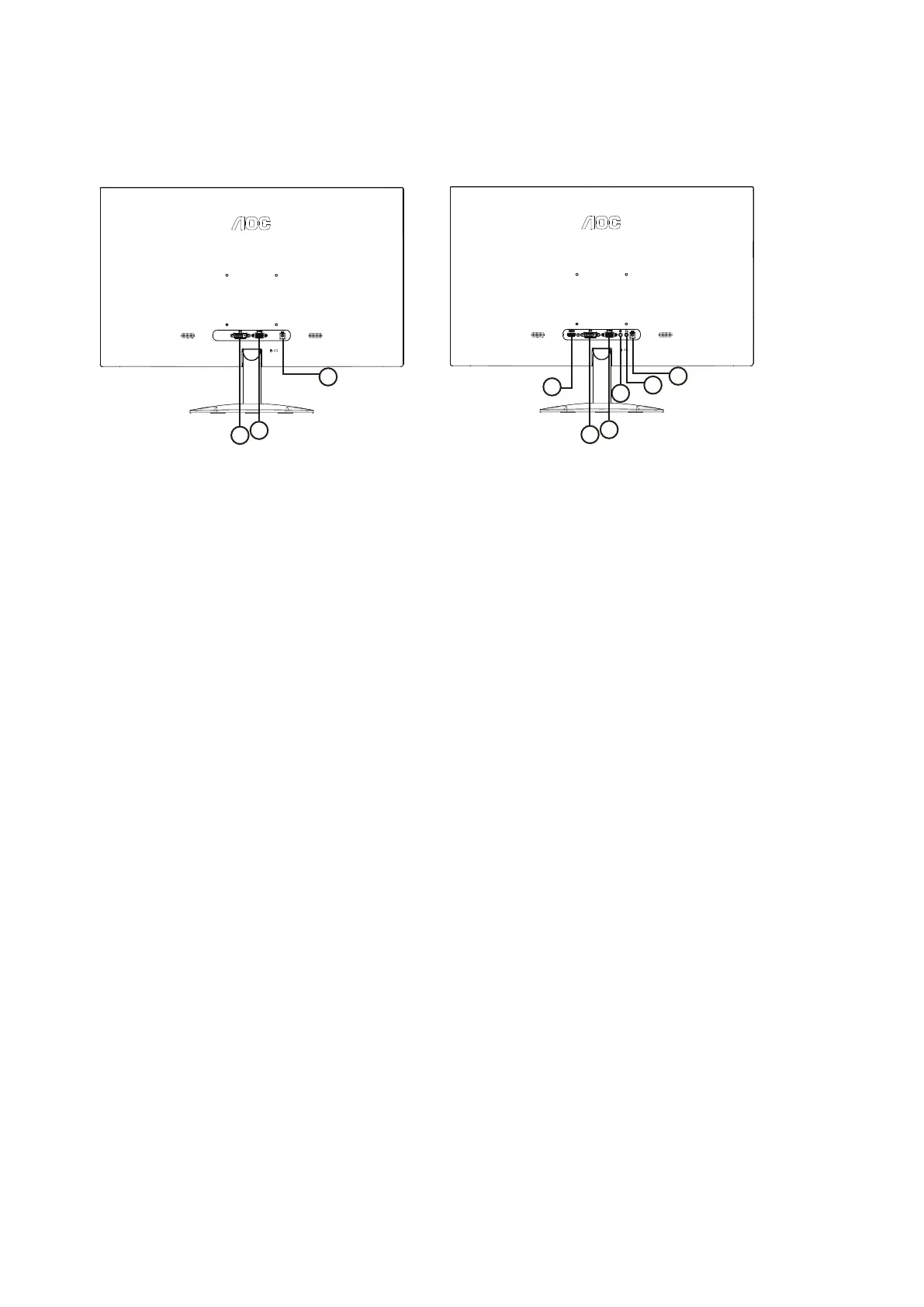

Cable Connections In Back of Monitor and Computer:
3
2
6
3
2
6
5
1
4
24B2XD/24B2XDM 24B2XDA/24B2XDAM/27B2DA
1. HDMI
2. DVI
3. Analog (D-Sub 15-Pin VGA cable)
4. Audio in
5. Earphone
6. Power
Connect to PC
1. Connect the power cord to the back of the display rmly.
2. Turn o󰀨 your computer and unplug its power cable.
3. Connect the display signal cable to the video connector on the back of your computer.
4. Plug the power cord of your computer and your display into a nearby outlet.
5. Turn on your computer and display.
If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.
To protect equipment, always turn o󰀨 the PC and LCD monitor before connecting.

AOC 24B2XDM Specifications

General

Panel type	VA
Color depth	8 bit
Aspect ratio	4:3, 16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	Matt
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Adobe RGB coverage	74 %
Display technology	LCD
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
Supported video modes	720p, 1080p
NTSC coverage (typical)	72 %
sRGB coverage (typical)	101 %
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.452 cm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Tilt angle range	-5 - 20 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
Certification	True
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Home
Sustainability certificates	ENERGY STAR
DisplayPorts quantity	0
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	0.3 W
Power consumption (typical)	21 W
Cables included	AC
Power cable length	1.5 m
Package type	Box
Package depth	131 mm
Package width	614 mm
Package height	492 mm
Package weight	4500 g
Exterior finish type	Textured
Recyclable packaging material	100 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	170.94 mm
Height (with stand)	418.35 mm
Weight (with stand)	2700 g
Depth (without stand)	37.6 mm
Width (without stand)	539.47 mm
Height (without stand)	320.94 mm
