AOC 24B2XDM User Manual

32

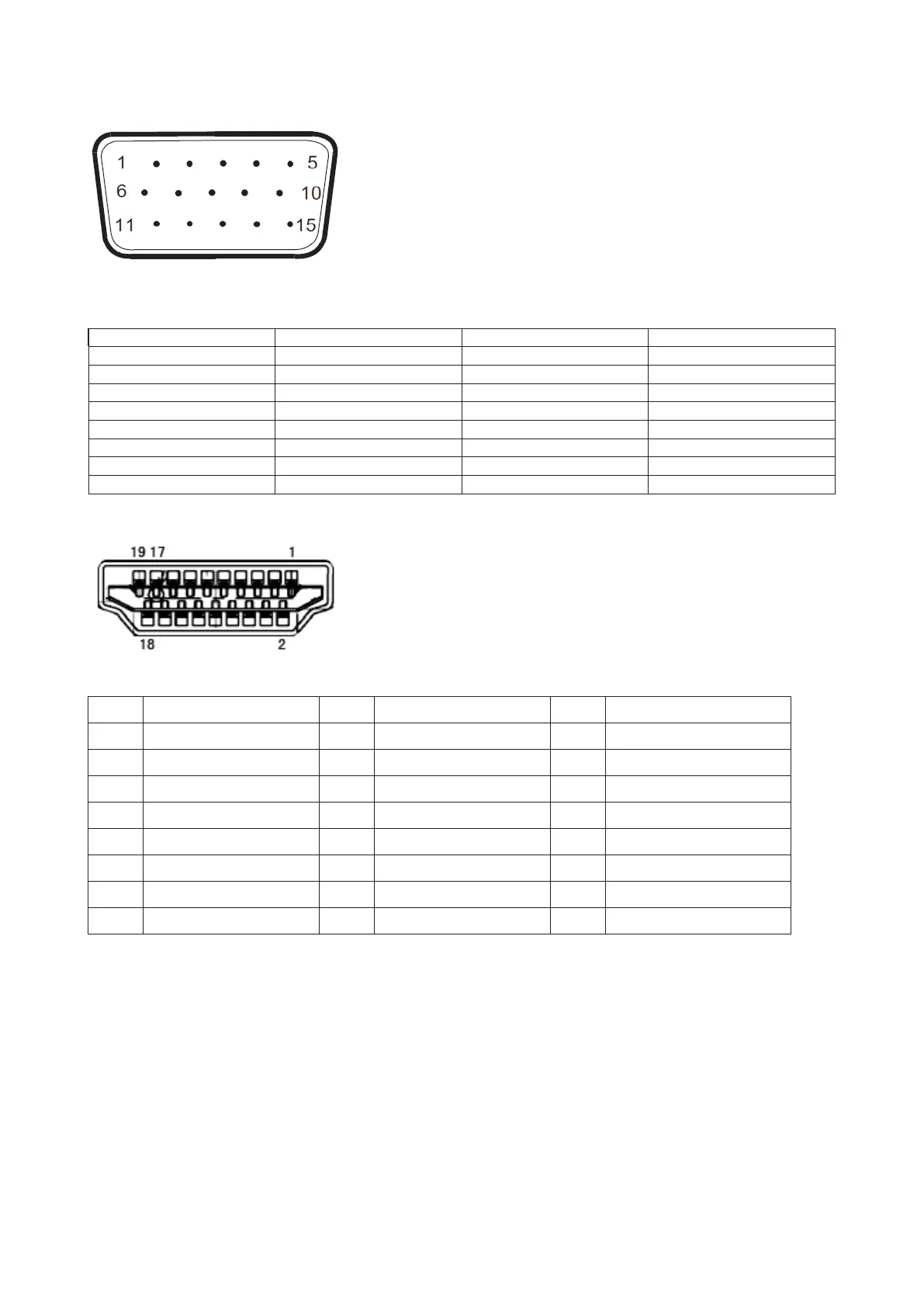

Pin Assignments
15-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1. Video-Red 9 +5V
2. Video-Green 10 Ground
3. Video-Blue 11 N.C.
4. N.C. 12 DDC-Serial data
5. Detect Cable 13 H-sync
6. GND-R 14 V-sync
7.
GND-G 15 DDC-Serial clock
8. GND-B
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA

AOC 24B2XDM Specifications

General

Panel type	VA
Color depth	8 bit
Aspect ratio	4:3, 16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	Matt
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Adobe RGB coverage	74 %
Display technology	LCD
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
Supported video modes	720p, 1080p
NTSC coverage (typical)	72 %
sRGB coverage (typical)	101 %
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.452 cm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Tilt angle range	-5 - 20 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
Certification	True
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Home
Sustainability certificates	ENERGY STAR
DisplayPorts quantity	0
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	0.3 W
Power consumption (typical)	21 W
Cables included	AC
Power cable length	1.5 m
Package type	Box
Package depth	131 mm
Package width	614 mm
Package height	492 mm
Package weight	4500 g
Exterior finish type	Textured
Recyclable packaging material	100 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	170.94 mm
Height (with stand)	418.35 mm
Weight (with stand)	2700 g
Depth (without stand)	37.6 mm
Width (without stand)	539.47 mm
Height (without stand)	320.94 mm
