33

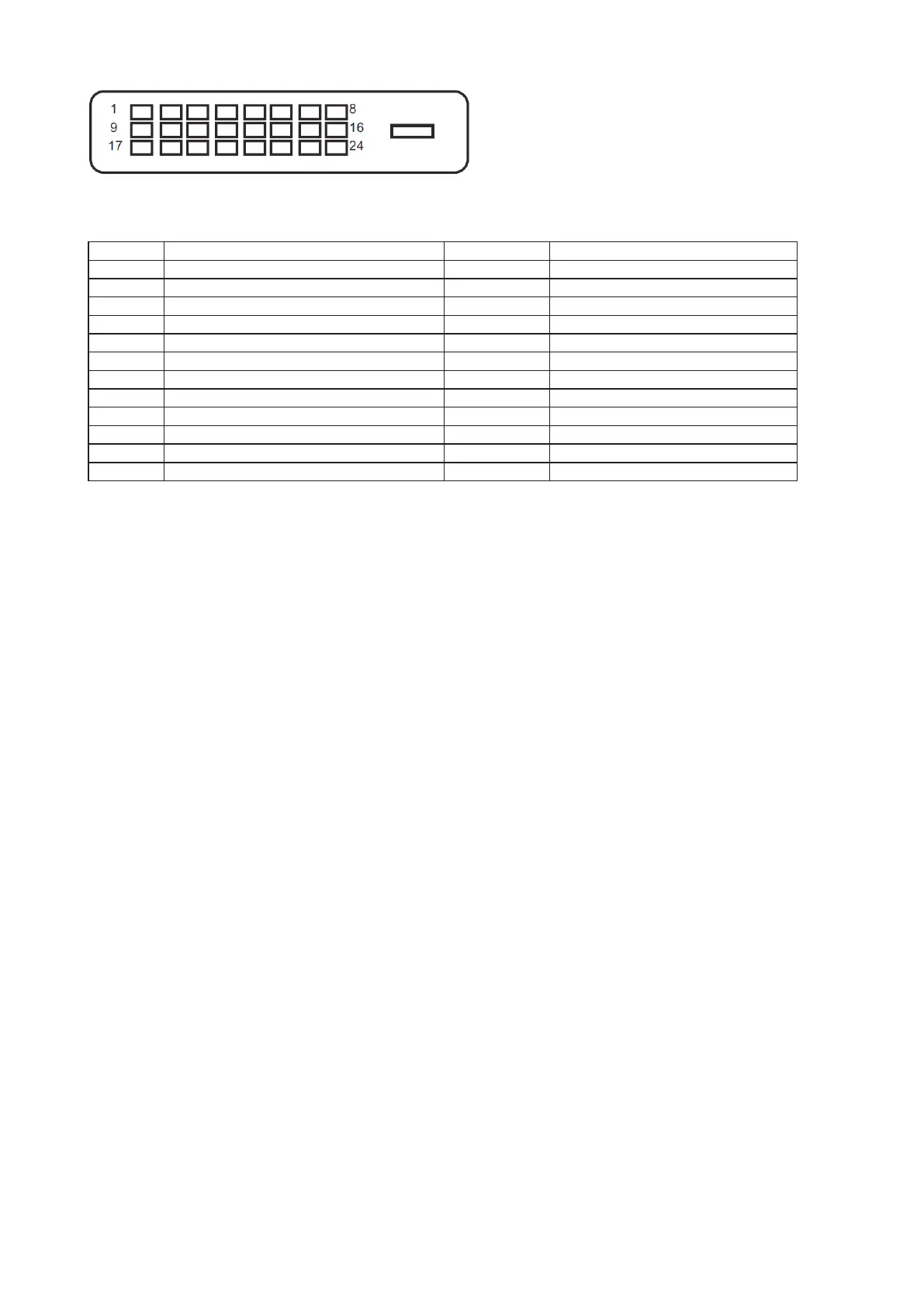

24-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 TMDS data 2- 13 TMDS data 3+
2 TMDS data 2+ 14 +5V Power
3 TMDS data 2/4 Shield 15 Ground (for+5V)
4 TMDS data 4- 16 Hot Plug Detect
5 TMDS data 4+ 17 TMDS data 0-
6 DDC Clock 18 TMDS data 0+
7 DDC Data 19 TMDS data 0/5 Shield
8 N.C. 20 TMDS data 5-
9 TMDS data 1- 21 TMDS data 5+
10 TMDS data 1+ 22 TMDS Clock Shield
11 TMDS data 1/3 Shield 23 TMDS Clock +
12 TMDS data 3- 24 TMDS Clock -
* Only for certain models
