AOC 24B2XDM User Manual

20

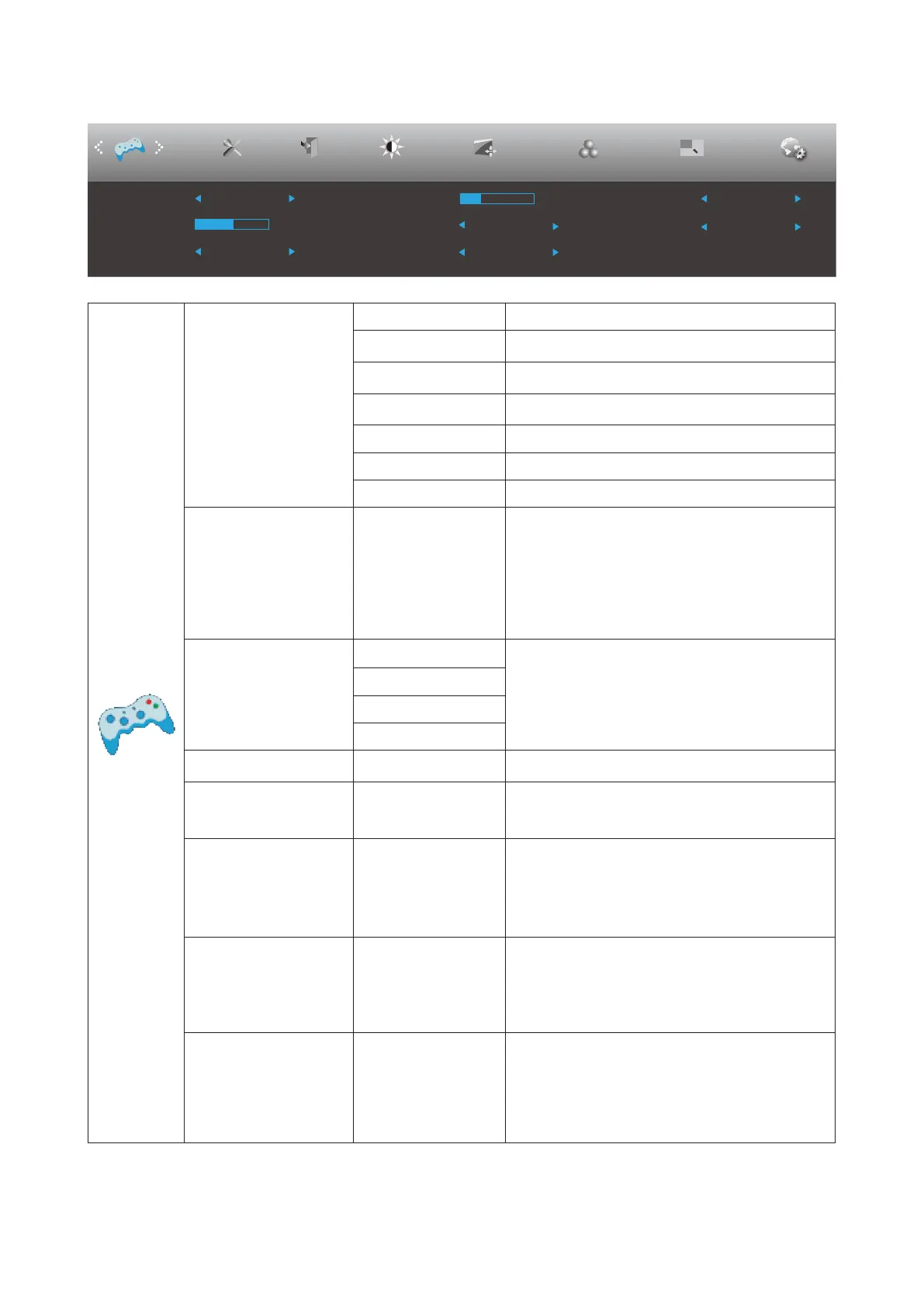

Game Setting
Picture Boost OSD SetupExitExtra
Luminance
Overdrive
LowBlue Mode
Dial Point
Shadow Control
Game Mode Off
Off
Off
Off
Image Setup
Color Setup
Game Setting
50
Game Color
10
Frame Counter Off
On
Adaptive-Sync
Game Mode
O󰀨 No optimization by Smart image game
FPS
For playing FPS (rst Person Shooters) games.
Improves dark theme black level details.
RTS
For playing RTS (Real Time Strategy). Improves
the image quality.
Racing
For playing Racing games, Provides fastest
response time and high color saturation.
Gamer 1 User’s preference settings saved as Gamer 1.
Gamer 2 User’s preference settings saved as Gamer 2.
Gamer 3 User’s preference settings saved as Gamer 3.
Shadow Control 0-100
Shadow Control Default is 50, then end-user can
adjust from 50 to 100 or 0 to increase contrast for
clear picture.
1. If picture is too dark to be saw the detail
clearly, adjusting from 50 to100 for clear
picture.
2. If picture is too white to be saw the detail
clearly, adjusting from 50 to0 for clear picture
Overdrive
O󰀨
Adjust the response time.
Weak
Medium
Strong
Game Color 0-20
Game Color will provide 0-20 level for adjusting
saturation to get better picture.
LowBlue Mode
Reading / O󰀩ce /
Internet / Multimedia /
O󰀨
Decrease blue light wave by controlling color
temperature.
Dial Point On or O󰀨
The“Dial Point”function places an aiming indicator
in the
center of screen for helping gamers to play First
Person
Shooter (FPS) games with an accurate and
precise aiming.
Adaptive-Sync
(24B2XDA/24B2XDAM/
27B2DA)
On or O󰀨
Disable or Enable Adaptive-Sync.c
Adaptive-Sync Run Reminder: When the Adaptive-
Sync feature is enabled, there may be ashing in
some game environments.
Frame Counter
(24B2XDA/24B2XDAM/
27B2DA)
O󰀨 / Right-up / Right-
Down / Left-Down /
Left-Up
Display V frequency on the corner selected
Note:
When “HDR Mode” under “Luminance” is set to “non-o󰀨”, the items “Game Mode”, “Shadow Control”, “Game Color”, “Low
Blue Mode” cannot be adjusted.

AOC 24B2XDM Specifications

General

Panel type	VA
Color depth	8 bit
Aspect ratio	4:3, 16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	Matt
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Adobe RGB coverage	74 %
Display technology	LCD
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
Supported video modes	720p, 1080p
NTSC coverage (typical)	72 %
sRGB coverage (typical)	101 %
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.452 cm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Tilt angle range	-5 - 20 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
Certification	True
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Home
Sustainability certificates	ENERGY STAR
DisplayPorts quantity	0
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	0.3 W
Power consumption (typical)	21 W
Cables included	AC
Power cable length	1.5 m
Package type	Box
Package depth	131 mm
Package width	614 mm
Package height	492 mm
Package weight	4500 g
Exterior finish type	Textured
Recyclable packaging material	100 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	170.94 mm
Height (with stand)	418.35 mm
Weight (with stand)	2700 g
Depth (without stand)	37.6 mm
Width (without stand)	539.47 mm
Height (without stand)	320.94 mm
