AOC 24V2Q User Manual

52

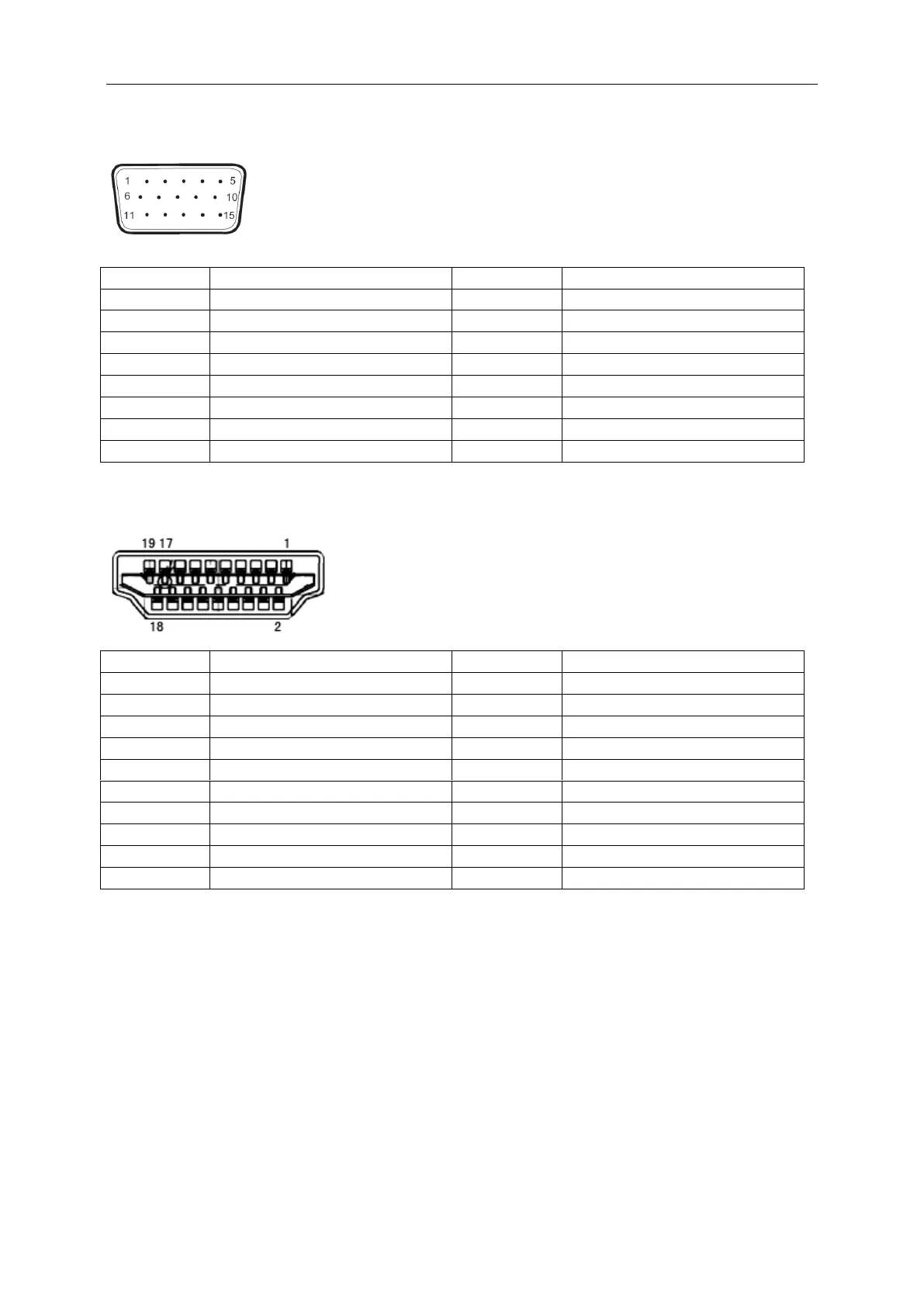

Pin Assignments
15-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
Video-Red
9
+5V
2
Video-Green
10
Ground
3
Video-Blue
11
N.C.
4
N.C.
12
DDC-Serial data
5
Detect Cable
13
H-sync
6
GND-R
14
V-sync
7
GND-G
15
DDC-Serial clock
8
GND-B
19-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2 Shield
12
TMDS Clock
3
TMDS Data 2
13
CEC
4
TMDS Data 1+
14
Reserved (N.C. on device
5
TMDS Data 1Shield
15
SCL
6
TMDS Data 1
16
SDA
7
TMDS Data 0+
17
DDC/CEC Ground
8
TMDS Data 0 Shield
18
+5V Power
9
TMDS Data 0
19
Hot Plug Detect
10
TMDS Clock +

AOC 24V2Q Specifications

General

Screen Size	23.8 inches
Resolution	1920 x 1080 (Full HD)
Panel Type	IPS
Refresh Rate	75 Hz
Response Time	5 ms
Aspect Ratio	16:9
Brightness	250 cd/m²
Contrast Ratio	1000:1
Viewing Angles	178°/178°
Inputs	1 x HDMI 1.4, 1 x DisplayPort 1.2, 1 x VGA
Color Gamut	NTSC 72%
