AOC 27B2AM User Manual

9
Connecting the Monitor

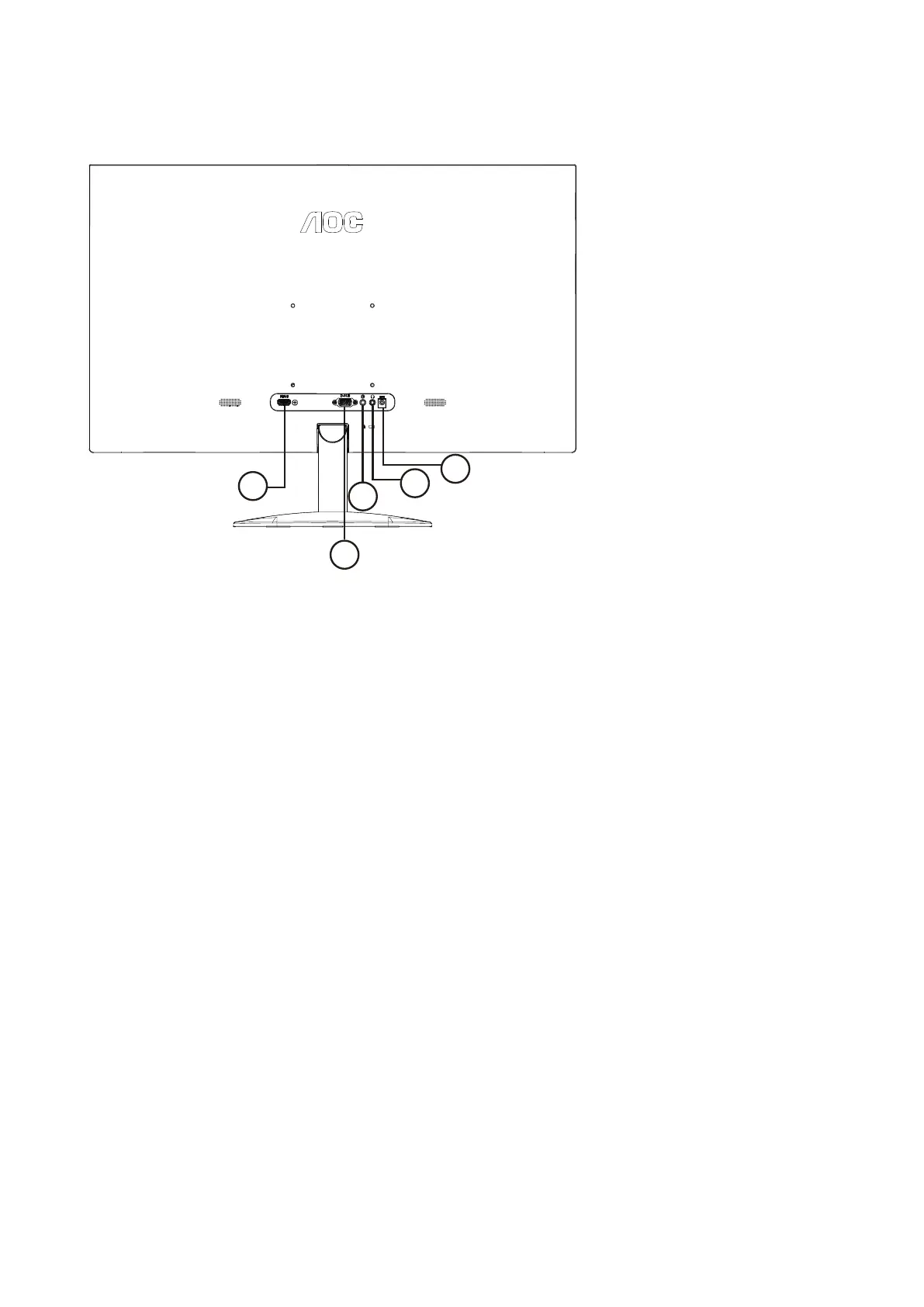

Cable Connections In Back of Monitor and Computer:
2
5
4
1
3
1. HDMI
2. Analog (D-Sub 15-Pin VGA cable)
3. Audio in
4. Earphone
5. Power
Connect to PC
1. Connect the power cord to the back of the display rmly.
2. Turn o󰀨 your computer and unplug its power cable.
3. Connect the display signal cable to the video connector on the back of your computer.
4. Plug the power cord of your computer and your display into a nearby outlet.
5. Turn on your computer and display.
If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.
To protect equipment, always turn o󰀨 the PC and LCD monitor before connecting.

AOC 27B2AM Specifications

General

Panel type	VA
Color depth	8 bit
Pixel pitch	0.3114 x 0.3114 mm
Aspect ratio	4:3, 16:9
Screen shape	Flat
Pixel density	81 ppi
Backlight type	W-LED
Display surface	Matt
Display diagonal	27 \
Surface hardness	3H
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 76 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	720p, 1080p
Viewable size, vertical	296.46 mm
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	4000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	68.58 cm
Viewable size, horizontal	527.04 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Flicker-free technology	Yes
Tilt angle range	-5 - 20 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
RMS rated power	2 W
Number of speakers	2
Certification	True
Product color	Black
Country of origin	China
Heavy metals free	Hg (mercury)
Market positioning	Home
Sustainability certificates	ENERGY STAR
HDMI version	1.4
DisplayPorts quantity	0
Headphone connectivity	3.5 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	0.5 W
Power consumption (typical)	23 W
Cables included	AC, HDMI
HDMI cable length	1.5 m
Package type	Box
Package depth	131 mm
Package width	614 mm
Package height	492 mm
Package weight	5500 g
Exterior finish type	Textured
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Harmonized System (HS) code	85285210
Commodity Classification Automated Tracking System (CCATS)	8528521000

Weight and Dimensions

Depth (with stand)	182.95 mm
Height (with stand)	456.39 mm
Weight (with stand)	3600 g
Depth (without stand)	37.6 mm
Width (without stand)	612.14 mm
Height (without stand)	361.39 mm
