AOC 27B2DM User Manual

27

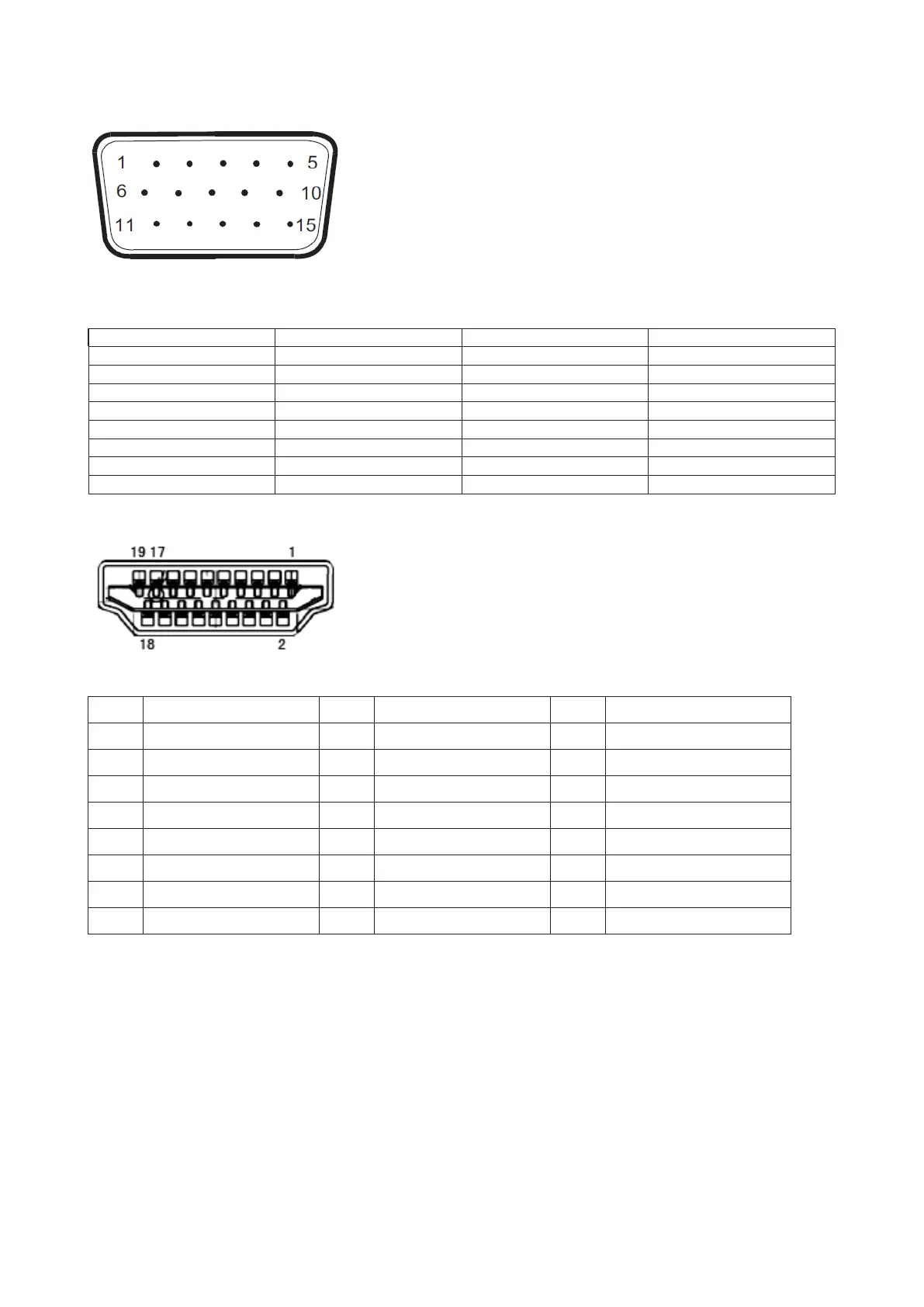

Pin Assignments
15-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1. Video-Red 9 +5V
2. Video-Green 10 Ground
3. Video-Blue 11 N.C.
4. N.C. 12 DDC-Serial data
5. Detect Cable 13 H-sync
6. GND-R 14 V-sync
7.
GND-G 15 DDC-Serial clock
8. GND-B
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA

AOC 27B2DM Specifications

General

Panel type	VA
Color depth	8 bit
Pixel pitch	0.3114 x 0.3114 mm
Screen shape	Flat
Backlight type	W-LED
Display diagonal	27 \
Surface hardness	3H
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
Supported video modes	1080p
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	4000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	68.6 cm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	Yes
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	- W
HDMI version	1.4
DisplayPorts quantity	0
Headphone connectivity	3.5 mm
Tilt angle range	-5 - 21.5 °
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
Certification	CE
Product color	Black
Market positioning	Home
Package weight	5600 g
Exterior finish type	Textured
Harmonized System (HS) code	85285210
Sustainability certificates	WEEE

Weight and Dimensions

Weight (with stand)	3700 g
