12

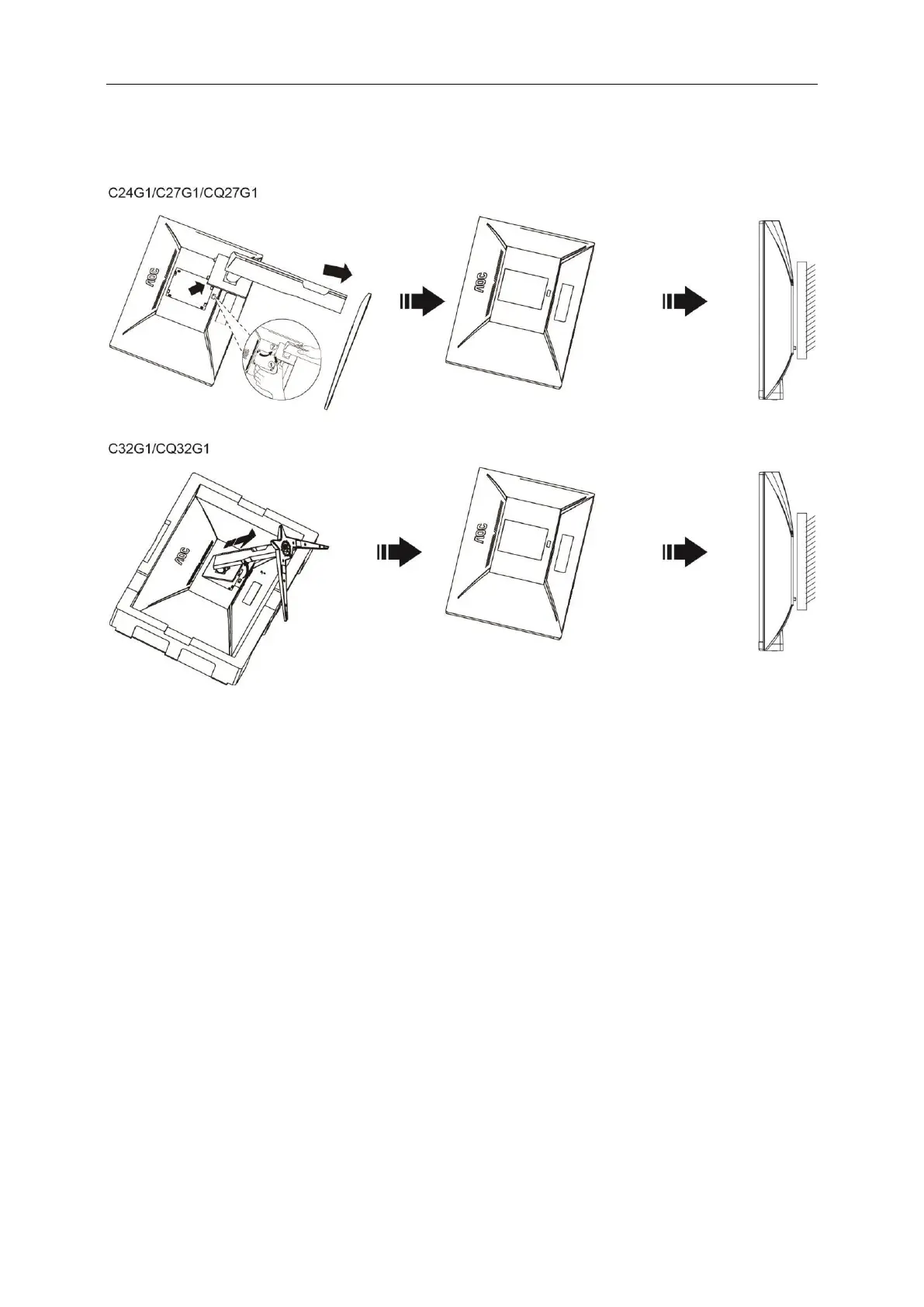

Wall Mounting
Preparing to Install an Optional Wall Mounting Arm.
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this
procedure. Follow these steps:
1. Remove the base.
2. Follow the manufacturer’s instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back
of the monitor.
4. Insert the 4 screws into the holes and tighten.
5. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions
on attaching it to the wall.
Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official
department of AOC.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the AOC CQ27G1 and is the answer not in the manual?

AOC CQ27G1 Specifications

General IconGeneral
Panel typeVA
Color depth8 bit
Pixel pitch0.2331 x 0.2331 mm
Backlight typeW-LED
Display diagonal27 \
Screen curvature1800 mm
Adobe RGB coverage75 %
Display technologyLED
Native aspect ratio16:9
Screen curvature rating1800R
Viewable size, vertical335.664 mm
sRGB coverage (typical)102 %
Contrast ratio (dynamic)80000000:1
Contrast ratio (typical)3000:1
Display number of colors16.78 million colors
Viewable size, horizontal596.736 mm
Display brightness (typical)250 cd/m²
Supported graphics resolutions2560 x 1440
Tilt angle range-4 - 21.5 °
Panel mounting interface100 x 100 mm
On Screen Display (OSD) languagesCHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SER
CertificationISO
Product colorBlack
Market positioningGaming
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (off)0.5 W
Power consumption (typical)23 W
Mean time between failures (MTBF)50000 h
DisplayPort version1.2
Headphone connectivity3.5 mm
Package depth473 mm
Package width694 mm
Package height250 mm
Package weight8083 g
AMD FreeSync typeFreeSync
AMD FreeSync refresh rate range30 - 144 Hz
Cables includedDisplayPort, HDMI
Weight and Dimensions IconWeight and Dimensions
Depth (with stand)245 mm
Height (with stand)535 mm
Weight (with stand)6110 g
Width (without stand)612 mm
Height (without stand)366.6 mm
Weight (without stand)4580 g
