AOC CQ32G1 User Manual

43

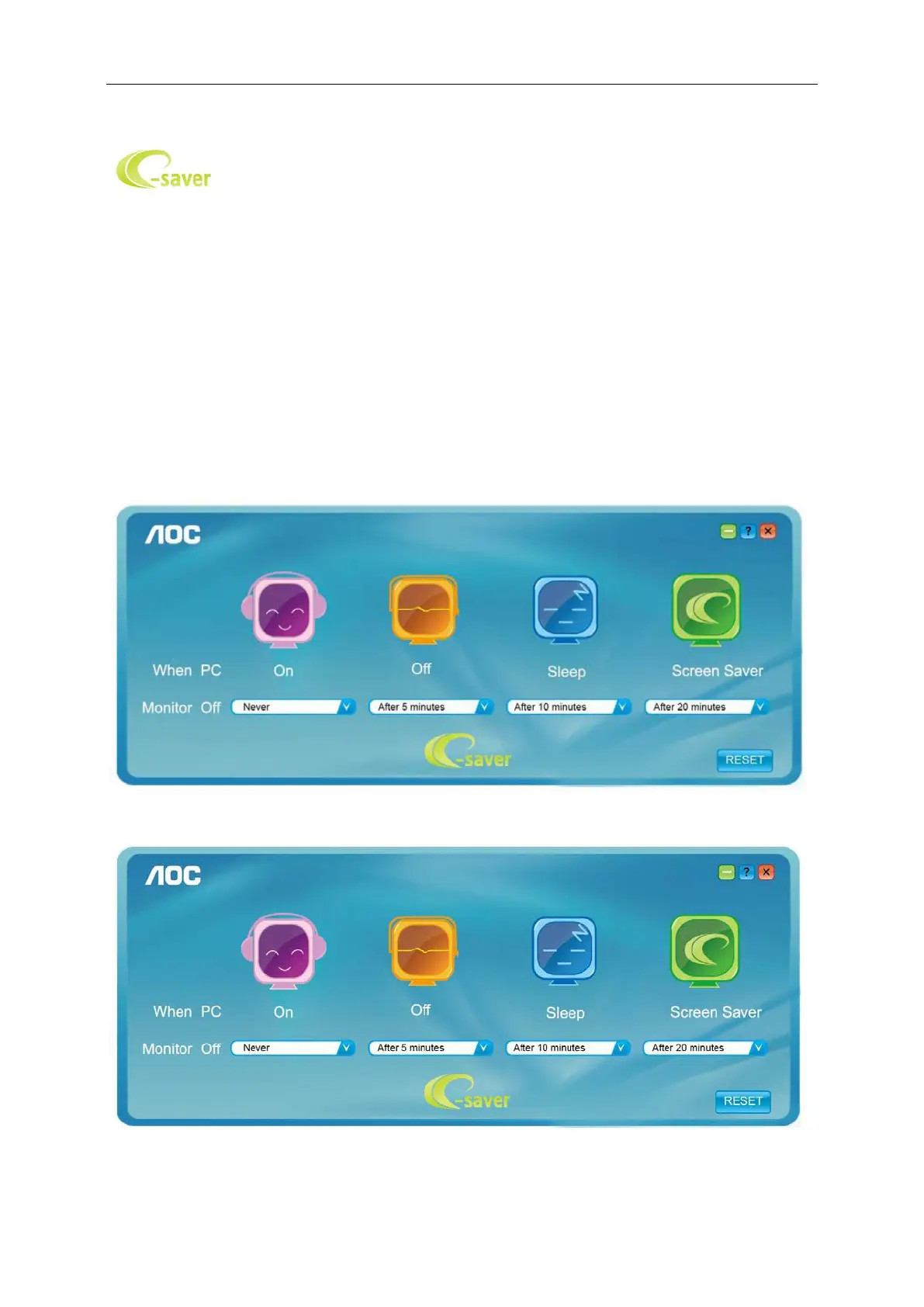

e-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown
functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or
Screen Saver); the actual shutdown time depends on your preferences (see example below).
Please click on "driver/e-Saver/setup.exe" to start installing the e-Saver software, follow the install wizard to
complete software installation.
Under each of the four PC statuses, you may choose the desired time (in minutes) from the pull-down menu for
your monitor to automatically shutdown. The example below illustrated:
1) The monitor will never shutdown when the PC is powered on.
2) The monitor will automatically shutdown 5 minutes after the PC is powered off.
3) The monitor will automatically shutdown 10 minutes after the PC is in sleep/stand-by mode.
4) The monitor will automatically shutdown 20 minutes after the screen saver appears.
You can click “RESET” to set the e-Saver to its default settings like below.

AOC CQ32G1 Specifications

General

3D	No
Panel type	VA
Color depth	8 bit
Pixel pitch	0.2724 x 0.2724 mm
Backlight type	W-LED
Display surface	Matt
Display diagonal	32 \
Screen curvature	1800 mm
Adobe RGB coverage	92 %
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	48 - 146 Hz
Horizontal scan range	30 - 160 kHz
Supported video modes	1080p, 1440p
Screen curvature rating	1800R
Viewable size, vertical	392.256 mm
sRGB coverage (typical)	119 %
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	697.344 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080), 2560 x 1440
Tilt angle range	-4 - 21.5 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
HDMI version	1.4/2.0
DisplayPort version	1.2
Headphone connectivity	3.5 mm
VGA (D-Sub) ports quantity	0
Certification	ISO
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Gaming
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Cables included	AC, DisplayPort, HDMI
HDMI cable length	1.8 m
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	0.5 W
Power consumption (typical)	52 W
Sustainability certificates	RoHS
Package type	Box
Package depth	242 mm
Package width	807 mm
Package height	551 mm
Package weight	10320 g
AMD FreeSync type	FreeSync Premium
AMD FreeSync refresh rate range	30 - 144 Hz
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	244.86 mm
Width (with stand)	713.11 mm
Height (with stand)	530.34 mm
Weight (with stand)	7280 g
Depth (without stand)	81.75 mm
Width (without stand)	425.35 mm
Weight (without stand)	5670 g
