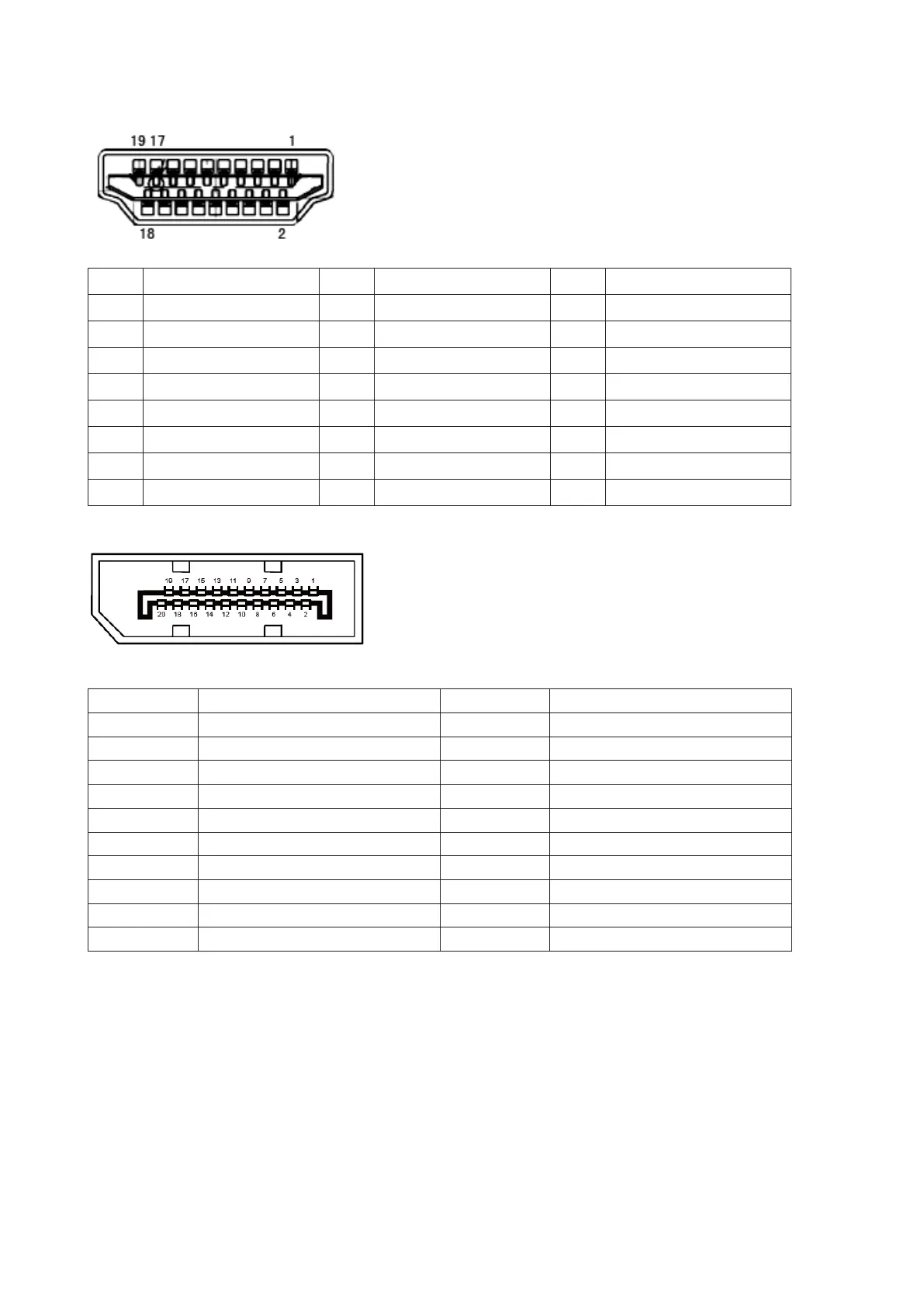

Pin Assignments

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground

2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power

3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect

4. TMDS Data 1+ 12. TMDS Clock-

5. TMDS Data 1Shield 13. CEC

6. TMDS Data 1- 14. Reserved (N.C. on device)

7. TMDS Data 0+ 15. SCL

8. TMDS Data 0 Shield 16. SDA

20-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name

1 ML_Lane 3 (n) 11 GND

2 GND 12 ML_Lane 0 (p)

3 ML_Lane 3 (p) 13 CONFIG1

4 ML_Lane 2 (n) 14 CONFIG2

5 GND 15 AUX_CH(p)

6 ML_Lane 2 (p) 16 GND

7 ML_Lane 1 (n) 17 AUX_CH(n)

8 GND 18 Hot Plug Detect

9 ML_Lane 1 (p) 19 Return DP_PWR

10 ML_Lane 0 (n) 20 DP_PWR

Questions and Answers:

Need help?

Do you have a question about the AOC CQ32G2S and is the answer not in the manual?

AOC CQ32G2S Specifications

General

HD type	UltraWide Full HD
Panel type	VA
Color depth	8 bit
Pixel pitch	0.2724 x 0.2724 mm
Backlight type	W-LED
Display surface	Matt
Display diagonal	32 \
Screen curvature	1500 mm
Surface hardness	3H
Adobe RGB coverage	103 %
Display resolution	2560 x 1080 pixels
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	48 - 165 Hz
Horizontal scan range	30 - 200 kHz
Supported video modes	1080p
Screen curvature rating	1500R
Viewable size, vertical	392.256 mm
sRGB coverage (typical)	120 %
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	697.44 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	2560 x 1080
Feet color	Black/Red
Certification	ISO
Product color	Black, Red
Detachable stand	Yes
Front bezel color	Black
Market positioning	Gaming
DisplayPort version	1.2
Headphone connectivity	3.5 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	49 W
Tilt angle range	3.5 - 21.5 °
Height adjustment	110 mm
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
AMD FreeSync type	FreeSync
AMD FreeSync refresh rate range	48 - 144 Hz
Cables included	AC, DisplayPort, HDMI
DisplayPort cable length	1.8 m
Package type	Box
Package depth	227 mm
Package width	820 mm
Package height	524 mm
Package weight	16860 g
