20
4.3 Panel Specification
4.3.1 General Features
M195FGE-L20 is a 19.5” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins 2ch-LVDS
interface. This module supports 1600 x 900 HD+ mode and can display up to 16.7M colors. The converter module for
Backlight is not built in.

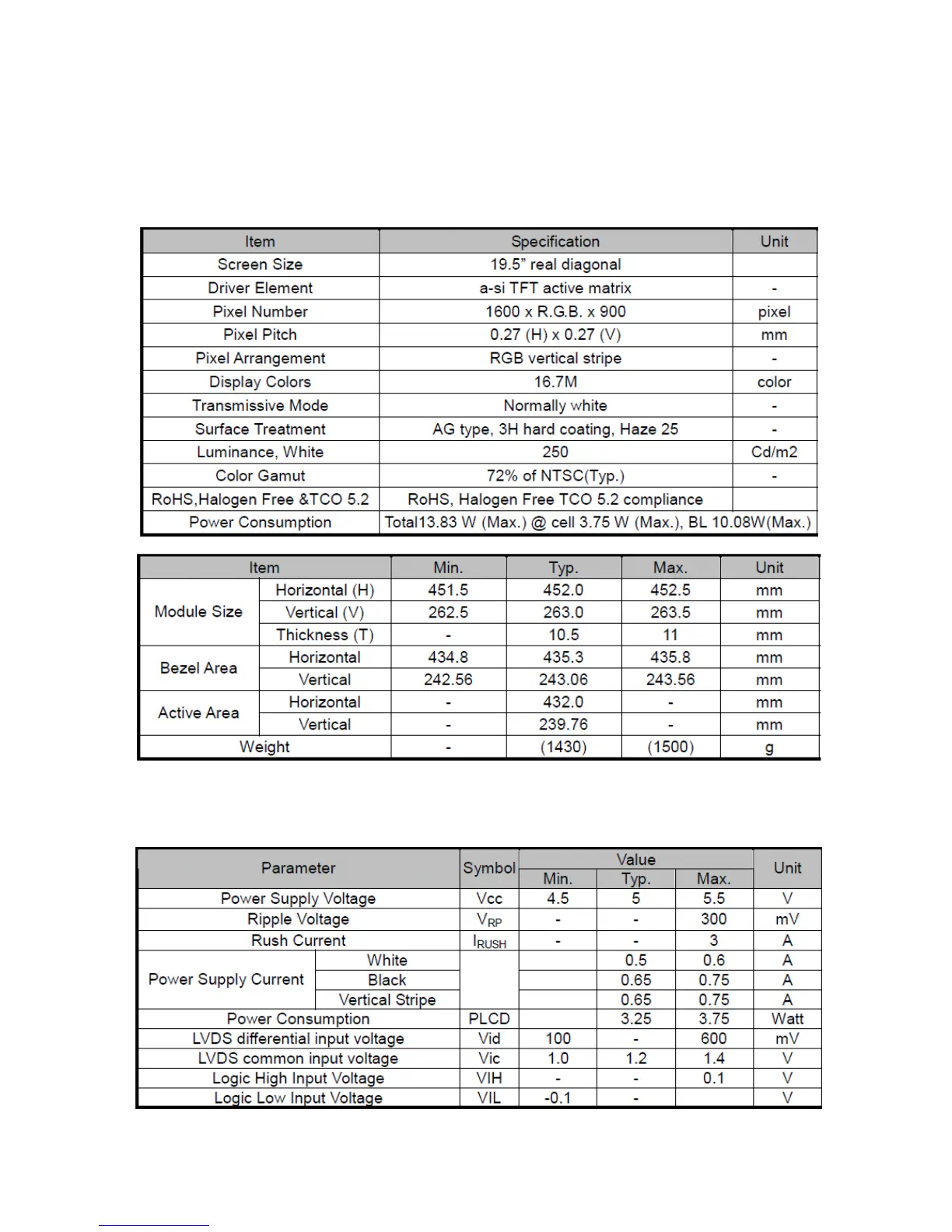

4.3.2 Display Characteristics
4.3.3 Electrical Characteristics
TFT LCD MODULE
Vcc = 5.0 V, Ta = 25 ± 2 ºC, Fr = 75Hz
