AOC e2050Swd Service Manual

22

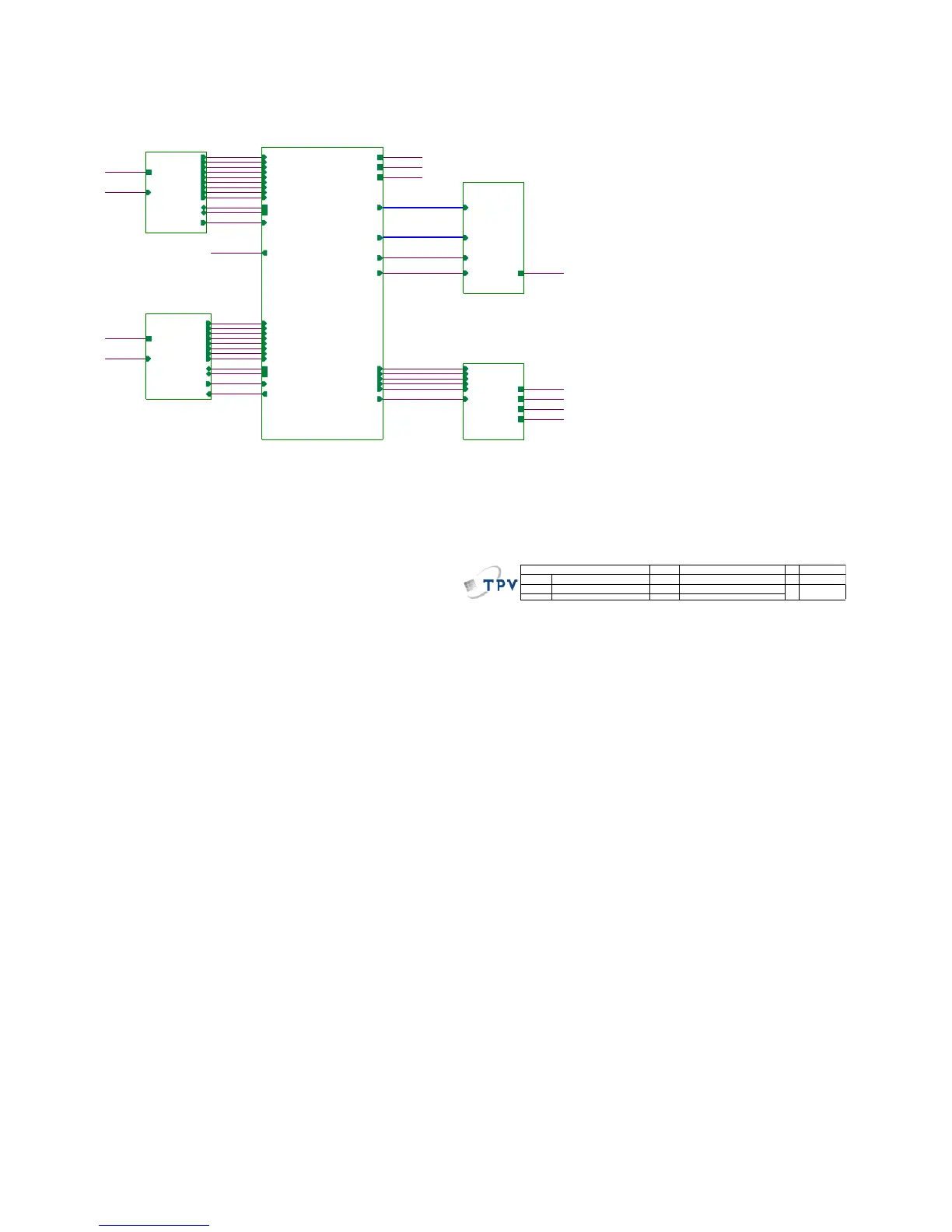

5. Block Diagram
5.1 Main Board
715G4502M01000004I
PB[0..9]
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 DUAL B
OTS
B
2 7Friday , October 29, 2010
715G4502-M0B-000-0040
< 称爹 >
COVER & REVISE HISTORY
715G4502-M0B-000-0040
03.DVI INPUT
03.DVI INPUT
RX0+
RX0-
RX1-
RX1+
RX2+
RX2-
RXC-
RXC+
DDCSCL2
DDCSDA2
DVI_CABLE_DET
EDID_WP
+5V
DVI_HPD
Adj_BACKLIGHT
on_BACKLIGHT
Audio_EN
Audio_DET
PS_EN
Panel_ON
+5V
VCC3.3
VCC1.8
VLCD
VLCD
R0+
R0-
SOG_DET
G0+
G0-
B0+
B0-
AHS0
AVS0
DDCSCL1
DDCSDA1
EDID_WP
VGA_CABLE_DET
PA[0..9]
+5V
EDID_WP
RX0+
RX1-
RX0-
RXC-
RX2+
RX2-
RXC+
RX1+
DDCSCL2
DDCSDA2
DVI_CABLE_DET
+5V
EDID_WP
DVI_HPD
VCC3.3
VCC1.8
+5V
02.INPUT
02.D-SUB INPUT
R0+
R0-
SOG_DET
G0+
G0-
B0+
B0-
+5V
AHS0
AVS0
DDCSCL1
DDCSDA1
EDID_WP
VGA_CABLE_DET
04.SCALER
04.SCALER
Adj_BACKLIGHT
on_BACKLIGHT
Audio_EN
Audio_DET
PS_EN
Panel_ON
PB[0..9]
PA[0..9]
R0+
R0-
SOG_DET
G0+
G0-
B0+
B0-
AHS0
AVS0
DDCSCL1
DDCSDA1
EDID_WP
VGA_CABLE_DET
RXC+
RXC-
RX2-
RX2+
RX1+
RX1-
RX0-
RX0+
DDCSCL2
DDCSDA2
DVI_CABLE_DET
DVI_HPD
VCC1.8
VCC3.3
+5V
P_SCL
P_SDA
05.PANEL INTERFACE
05.PANEL INTERFACE
VLCD
PA[0..9]
PB[0..9]
P_SCL
P_SDA
06.POWER
06.POWER
Adj_BACKLIGHT
on_BACKLIGHT
Audio_EN
Audio_DET
PS_EN
Panel_ON
+5V
VCC3.3
VCC1.8
VLCD

AOC e2050Swd Specifications

General

Color	glossy black, black
Screen Type	led
Webcam	no
OS Compatibility	windows
Screen Size	20 inches
Aspect Ratio	16:9
Resolution	1600 x 900
Native Resolution	1600 x 900
Refresh Rate	60hz
Horizontal Viewing Angle	90 degrees
Vertical Viewing Angle	50 degrees
Response Time	5 milliseconds
Brightness	200 candela per square meter
Contrast Ratio	20, 000, 000:1
Horizontal Scan Rate	83 kilohertz
VGA Ports	1
DVI	1
Power Saving Mode	0.5 watts
Power Consumption	17 watts
Width with Stand	18.8 inches
Net Weight without Stand	6.2 pounds
