4. Input/Output Specification

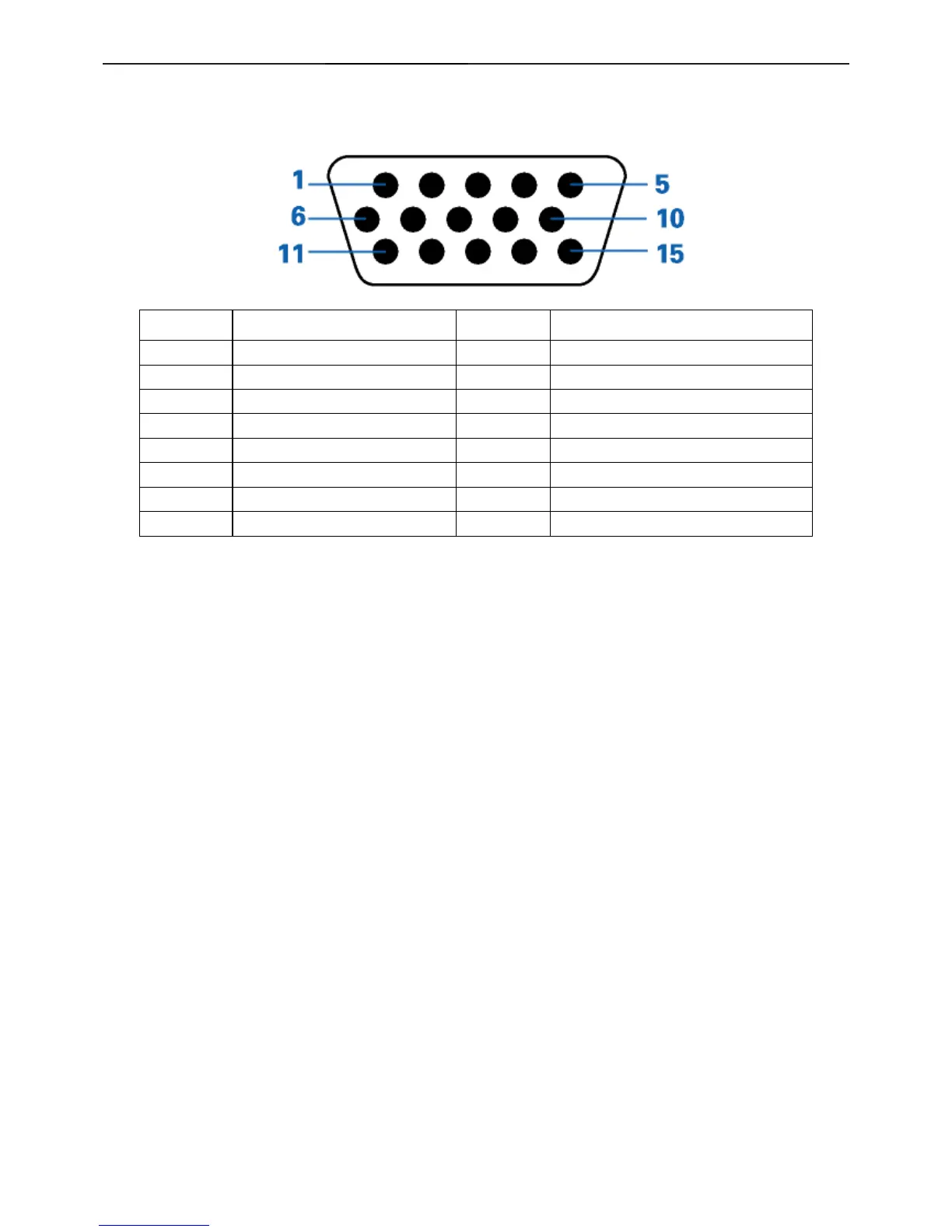

4.1 Input Signal Connector
D-SUB connector
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1 Video-Red 9 +5V
2 Video-Green 10 Ground
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC-Serial clock
8 GND-B

AOC E2236VW Specifications

General

3D	No
Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Display diagonal	21.5 \
Vertical scan range	55 - 75 Hz
Horizontal scan range	30 - 83 kHz
Viewable size diagonal	547 mm
Viewable size, vertical	268.5 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	2000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	476.6 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
DVI-I ports quantity	0
Certification	cCSAus, FCC, CE, EPA, Win 7, ROHS, CCC, TUV/S, TUV
Product color	Black
LED indicators	Power
Tilt angle range	-5 - 20 °
Number of OSD languages	15
Panel mounting interface	- mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	22 W
Package depth	129 mm
Package width	588 mm
Package height	389 mm
Package weight	5600 g

Weight and Dimensions

Depth (with stand)	206 mm
Width (with stand)	531 mm
Height (with stand)	396.57 mm
Weight (with stand)	4100 g
Weight (without stand)	- g
