AOC E2236VW User Manual

21.5" LCD Color Monitor AOC e2236Vw
59
III. Check HDCP.
USE “Blu-Ray Disc” DVD to check whether the monitor with DVI connector displays normally.

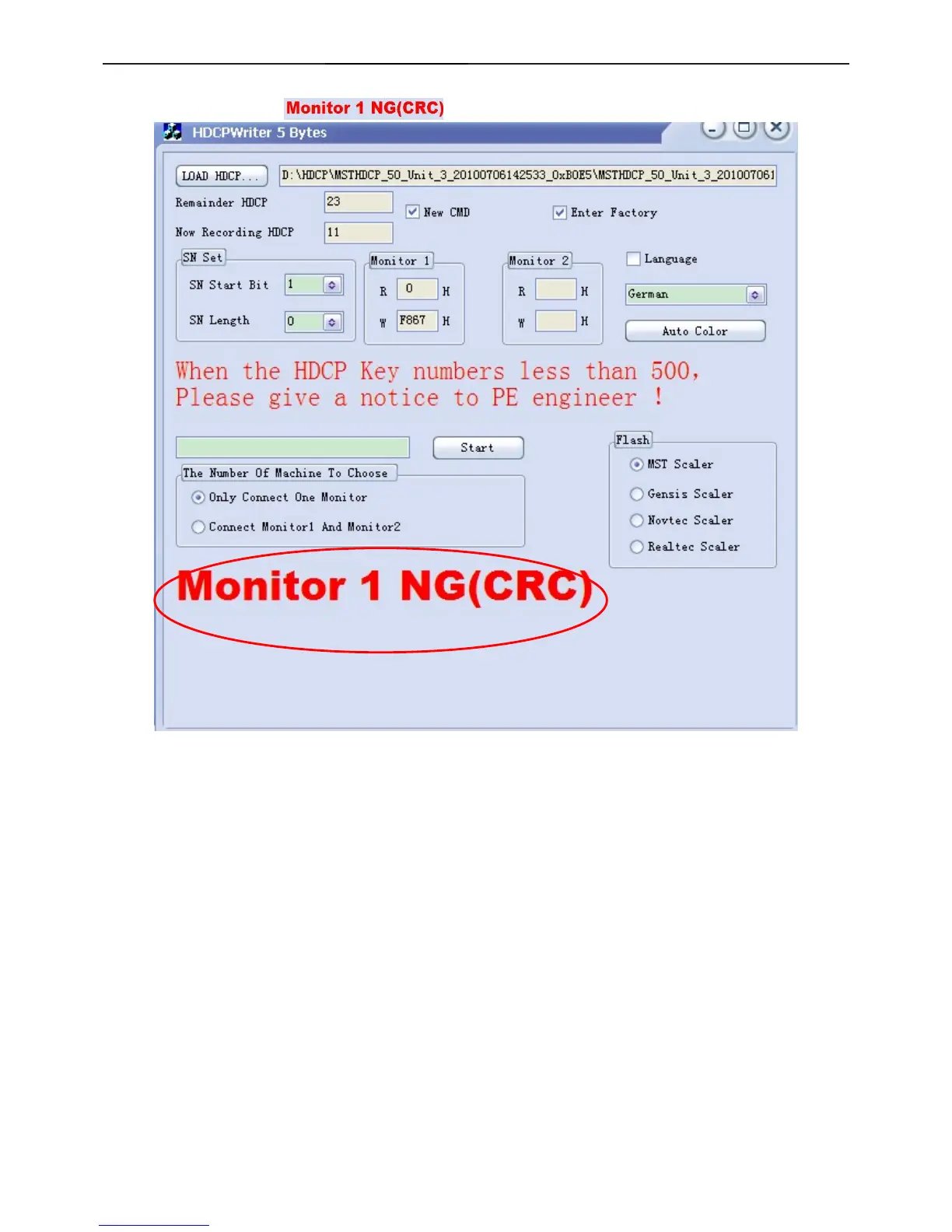

If error message appeared “ ” as below:
1. Check whether the HDCP writer is correct.
2. Check whether the tool is correct or not, and check the connection between PC, Monitor and tool. In addition,
check whether the tool’s power supply is available.
3. If still no work, pls modify the “config.ini” as below, and then try again.
Modify Step: Right click “config.ini”-> Open with “Notepad”->”OK”-> Modify the HDCP value (350->500,
150->300, 500->700)->Save.
PS: You can also open “config.ini” directly if you have opened it through “Open with ‘Notepad’ ” before.

AOC E2236VW Specifications

General

3D	No
Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Display diagonal	21.5 \
Vertical scan range	55 - 75 Hz
Horizontal scan range	30 - 83 kHz
Viewable size diagonal	547 mm
Viewable size, vertical	268.5 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	2000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	476.6 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
DVI-I ports quantity	0
Certification	cCSAus, FCC, CE, EPA, Win 7, ROHS, CCC, TUV/S, TUV
Product color	Black
LED indicators	Power
Tilt angle range	-5 - 20 °
Number of OSD languages	15
Panel mounting interface	- mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	22 W
Package depth	129 mm
Package width	588 mm
Package height	389 mm
Package weight	5600 g

Weight and Dimensions

Depth (with stand)	206 mm
Width (with stand)	531 mm
Height (with stand)	396.57 mm
Weight (with stand)	4100 g
Weight (without stand)	- g
