21.5" LCD Color Monitor AOC e2236Vw

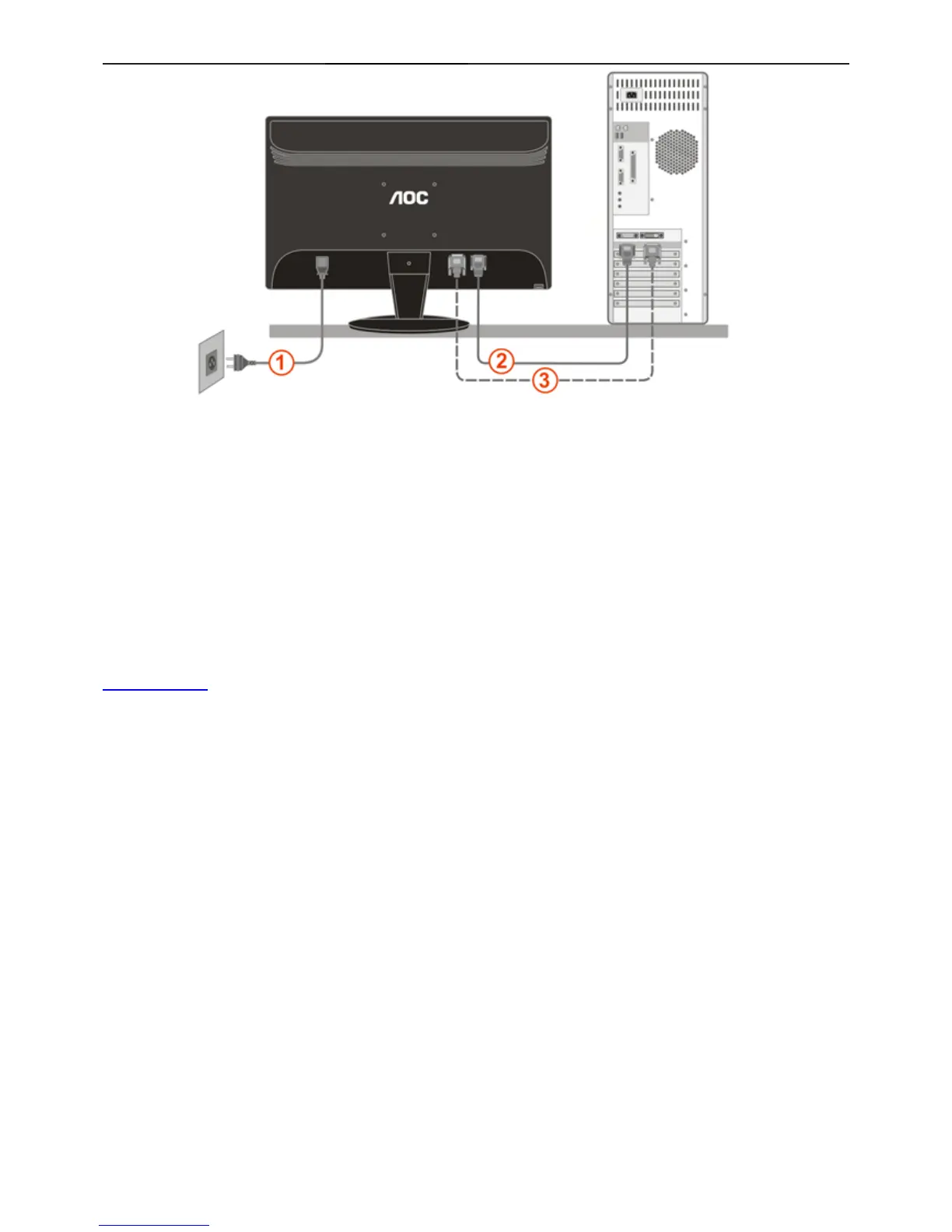

1. Power

2. Analog (DB-15 VGA cable)

3.DVI

To protect equipment, always turn off the PC and LCD monitor before connecting.

1. Connect the power cable to the AC port on the back of the monitor.

2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the

computer's D-Sub port.

3. (Optional – Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the

monitor and connect the other end to the computer’s DVI port.

4. Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer

Troubleshooting

Questions and Answers:

Need help?

Do you have a question about the AOC E2236VW and is the answer not in the manual?

AOC E2236VW Specifications

General

3D	No
Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Display diagonal	21.5 \
Vertical scan range	55 - 75 Hz
Horizontal scan range	30 - 83 kHz
Viewable size diagonal	547 mm
Viewable size, vertical	268.5 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	2000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	476.6 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
DVI-I ports quantity	0
Certification	cCSAus, FCC, CE, EPA, Win 7, ROHS, CCC, TUV/S, TUV
Product color	Black
LED indicators	Power
Tilt angle range	-5 - 20 °
Number of OSD languages	15
Panel mounting interface	- mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	22 W
Package depth	129 mm
Package width	588 mm
Package height	389 mm
Package weight	5600 g
