27
The current draw and power consumption specified is for VDD=5.0V, Frame rate=75Hz. Test Pattern of power
supply current
a) Typ : Color Bar pattern
b) Max : Skip Sub Pixel Pattern
2. Duration of rush current is about 2 ms and rising time of VDD is 520 μs ± 20 %

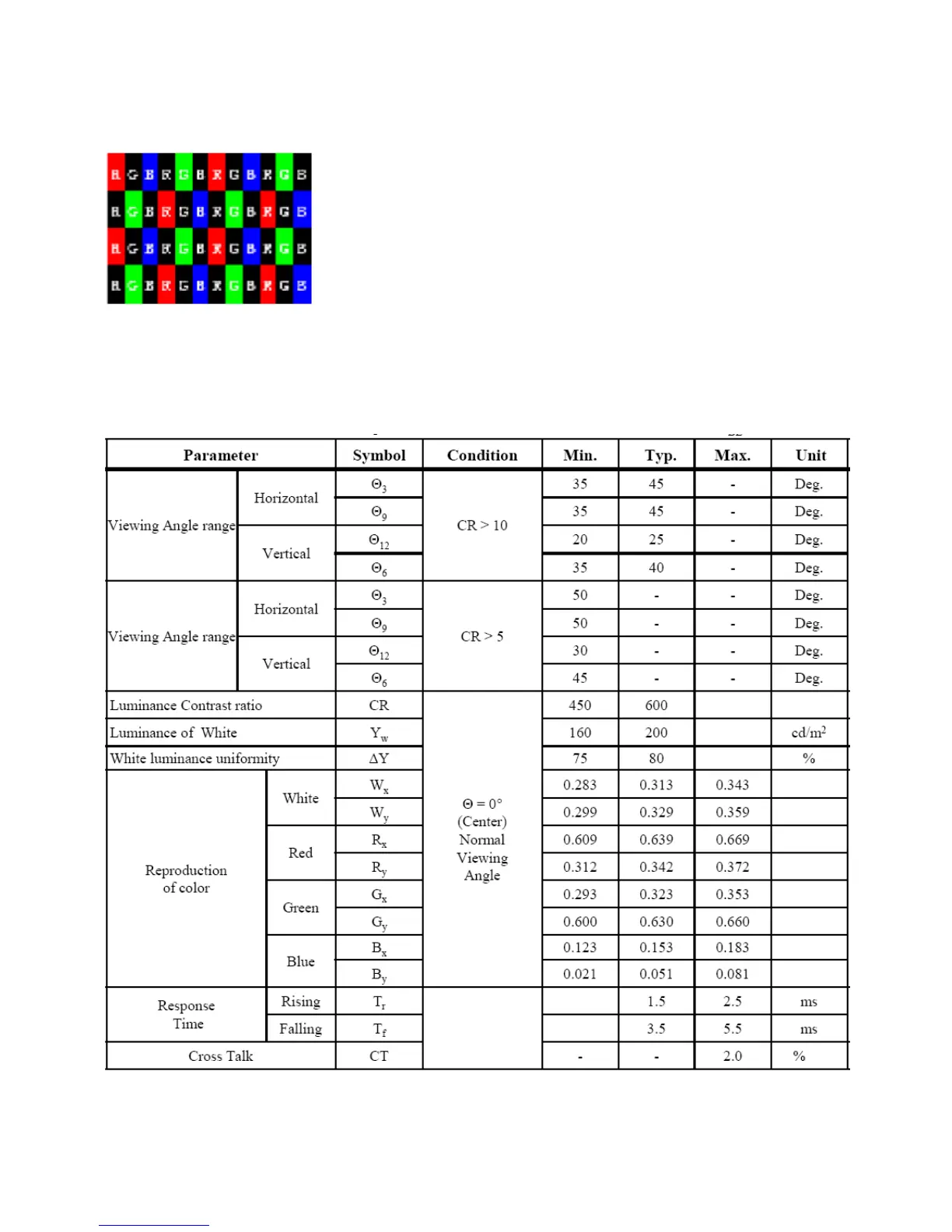

4.3.4 Optical Characteristics
[VDD = 5.0V, Frame rate = 60Hz, Clock = 78MHz, IBL = 240mA, Ta =25±2 ℃]
,
