AOC e2250Swdn Service Manual

3. Operating Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control knobs are located at front panel of the monitor
(See Figure ). By changing these settings, the picture can be adjusted to your personal preferences.
* The power cord should be connected.
* Press the power button to turn on the monitor. The power indicator will light up.

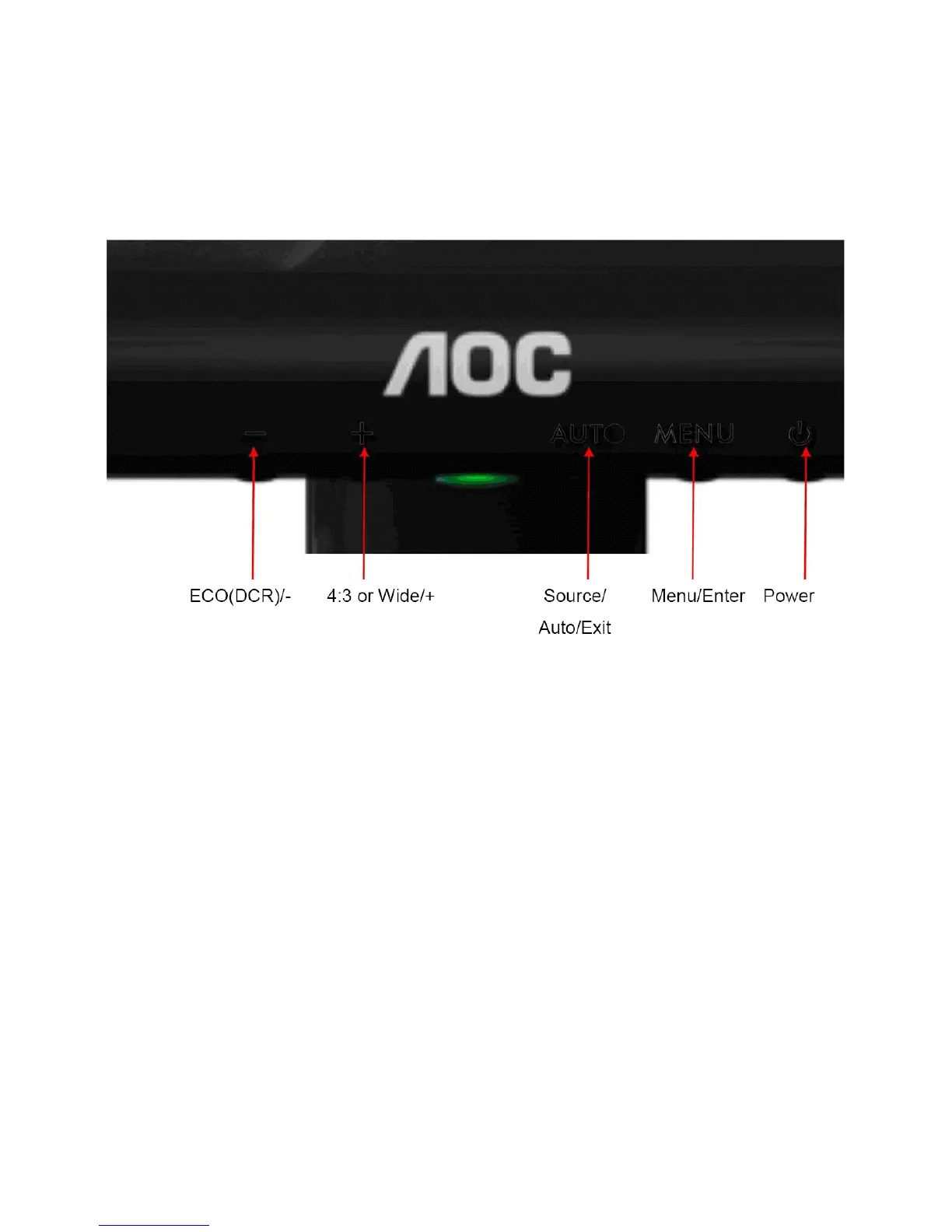

3.2 Control Buttons and Connections
Power
Press the Power button to turn on/off the monitor.
Eco (DCR)/ -
Press the Eco key continuously to select the Eco mode of brightness and DCR on when there is no OSD. ( Eco
mode hot key may not be available in all models).
4 : 3 or wide
When there is no OSD, press + continuously to change 4:3 or wide image ratio. (If the product screen size is 4:3 or
input signal resolution is wide format, the hot key is disable to adjust. )
Auto / Exit
When there is no OSD, press Auto/Source button continuously about 3 second to do auto configure
Source hot key
When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to
select the input source showed in the message bar, press Menu/Enter button to change to the source selected.

AOC e2250Swdn Specifications

General

3D	No
Pixel pitch	0.248 x 0.248 mm
Aspect ratio	16:9
Display diagonal	21.5 \
Vertical scan range	50 - 751 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080i, 1080p, 720p
Viewable size, vertical	268.1 mm
Viewing angle, vertical	60 °
Contrast ratio (dynamic)	20000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	476.6 mm
Viewing angle, horizontal	90 °
Display brightness (typical)	200 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
On/off switch	Yes
Ethernet LAN (RJ-45) ports	0
Number of products included	1 pc(s)
DVI-I ports quantity	-
Safety	RoHS
Certification	EPEAT Silver, FCC, CE
Product color	Black
LED indicators	Power
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	75 x 75 mm
AC input voltage	110 - 220 V
AC input frequency	50 - 60 Hz
Power consumption (max)	31.5 W
Power consumption (standby)	- W
Cables included	AC
Bundled software	Screen+
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR
Package width	564 mm
Package height	394 mm
Package weight	4060 g

Weight and Dimensions

Depth (without stand)	109 mm
Width (without stand)	511.2 mm
Height (without stand)	379.9 mm
Weight (without stand)	3280 g
