4.3 Panel Specification
4.3.1 General Features
TPM215HW01-HGJL02 is a 21.5” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins
2ch-LVDS interface. This module supports 1920 x 1080 Full HD mode and can display up to 16.7M colors.

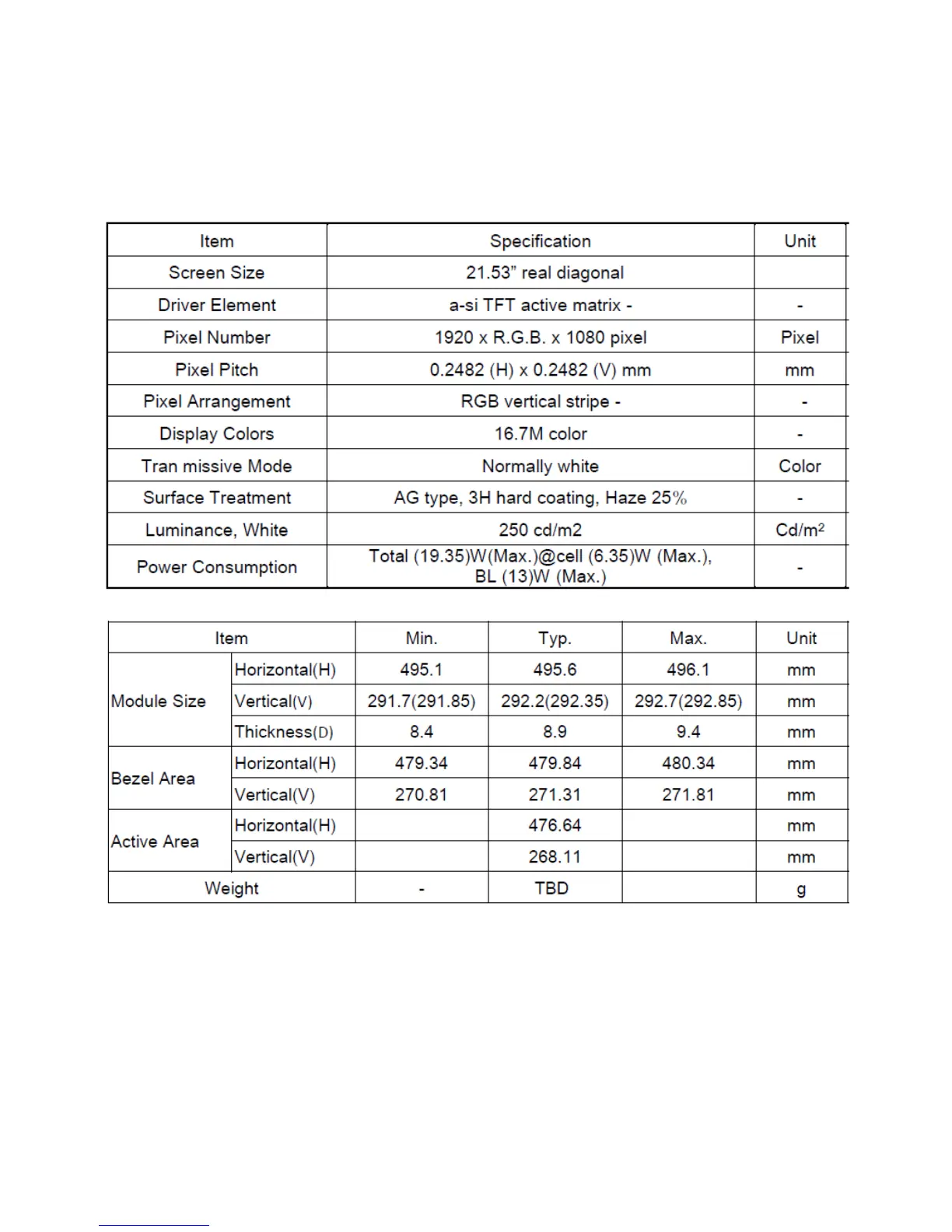

4.3.2 Display Characteristics
4.3.3 Electrical Characteristics
Vcc = 5.0 V, Ta = 25 ± 2 ºC, Fr = 60Hz
