AOC F19S User Manual

- 27 -

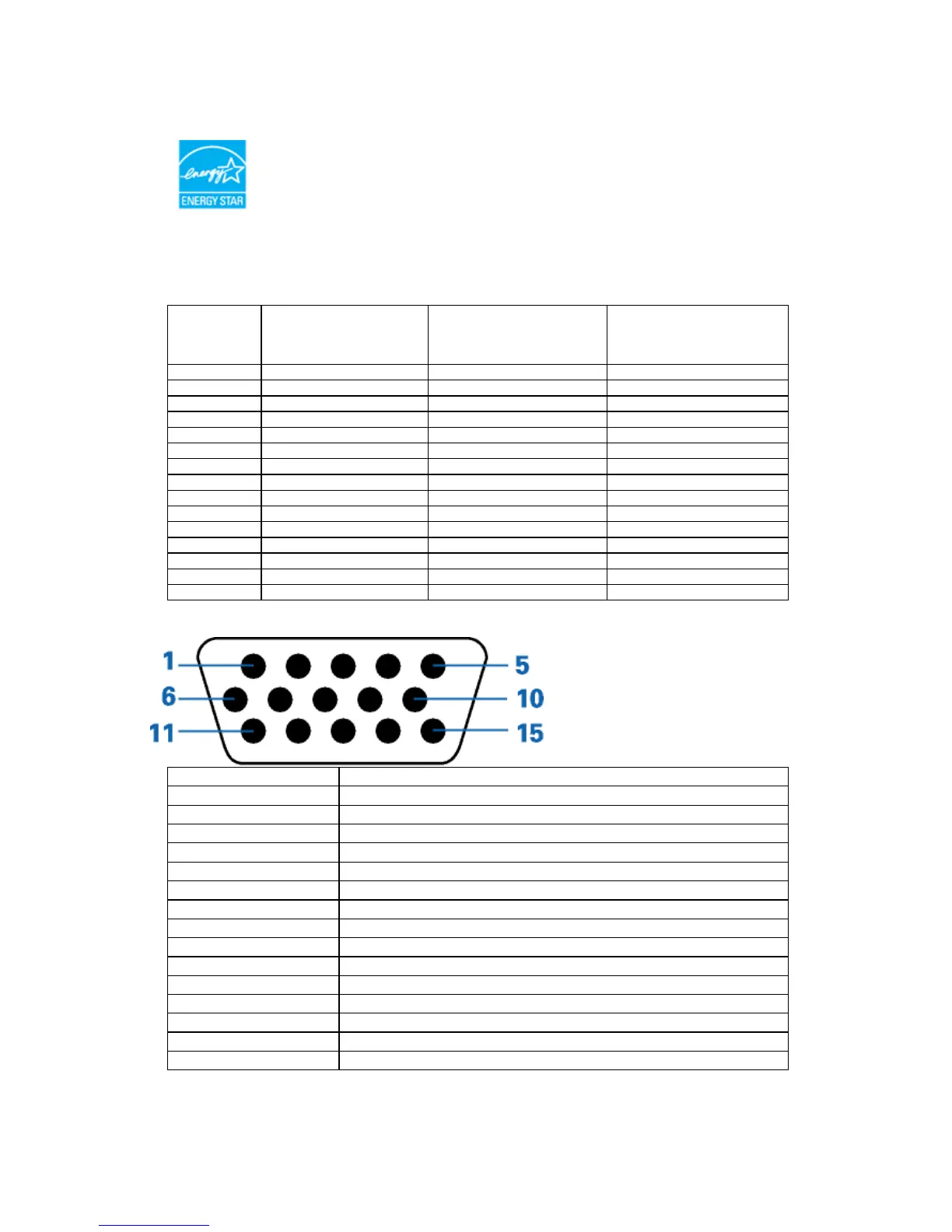

ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) GmbH
and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy
efficiency.
Preset Display Modes
STAND RESOLUTION
HORIZONTAL
FREQUENCY(kHZ)
VERTICAL
FREQUENCY(Hz)
VGA 640 x 480 @60Hz 31.469 59.940
VGA 640 x 480 @72Hz 37.861 72.809
VGA 640 x 480 @75Hz 37.500 75.000
Dos-mode 720 x 400 @70Hz 31.469 70.087
SVGA 800 x 600 @56Hz 35.156 56.250
SVGA 800 x 600 @60Hz 37.879 60.317
SVGA 800 x 600 @72Hz 48.077 72.188
SVGA 800 x 600 @75Hz 46.875 75.000
Mac-mode 832 x 624 @75Hz 49.725 74.500
XGA 1024 x 768 @60Hz 48.363 60.004
XGA 1024 x 768 @70Hz 56.476 70.069
XGA 1024 x 768 @72Hz 57.500 72.074
XGA 1024 x 768 @75Hz 60.023 75.029
XGA 1024 x 768 @75Hz 47.712 74.927
WSXGA 1366 x 768 @60Hz 47.765 59.85
Pin Assignments
Pin Number 15-Pin Side of the Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 N.C.
5 Detect Cable
6 GND-R
7 GND-G
8 GND-B
9 +5V
10 Ground
11 N.C.
12 DDC-Serial data
13 H-sync
14 V-sync
15 DDC-Serial clock
